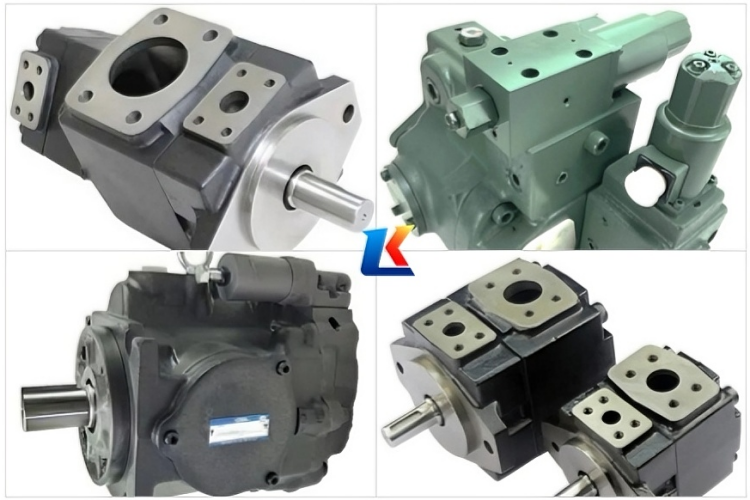

YUKEN Piston pump A100-F-R04HK-10、A16-FR01HSK
Parameters of YUKEN Hydraulic Pumps (A100-F-R04HK-10, A16-FR01HSK)
The following is the detailed parameter table of two YUKEN variable displacement piston pumps, including geometric displacement, operating pressure, shaft speed, mounting type and other key parameters, which is convenient for selection, installation and use[1][2][5].
| Pump Model | Parameter Items | Parameter Values |
|---|---|---|
| A100-F-R04HK-10 | Pump Type | Variable Displacement Piston Pump |
| Geometric Displacement | 100 cm³/rev (nominal displacement)[2] | |
| Rated Operating Pressure | 21 MPa (Max. 35-40 MPa)[2] | |
| Shaft Speed Range | 600 – 1800 r/min (standard working condition) | |
| Mounting Type | Flange Mounting (marked as “F” in the model)[5] | |
| Shaft Extension Form | Keyed Shaft (related to “HK” suffix) | |
| Key Features | High efficiency, low noise, stable operation, suitable for medium and large hydraulic systems[2] | |
| A16-FR01HSK | Pump Type | Variable Displacement Piston Pump |
| Geometric Displacement | 15.8 cm³/rev[2][5] | |
| Rated Operating Pressure | 21 MPa (Max. 28 MPa)[1][4] | |
| Shaft Speed Range | 600 – 1800 r/min (standard working condition) | |
| Rotation Direction | Clockwise (marked as “R” in the model)[4][5] | |
| Inlet & Outlet Position | Standard Position (related to “S” suffix)[5] | |
| Key Features | Small volume, light weight, flexible control, suitable for small and medium-sized hydraulic equipment[1][5] |
Note: All parameters are based on standard working conditions (ISO VG 32 hydraulic oil, 40°C oil temperature). The suffixes (HK, HSK) in the model represent special configurations such as shaft extension and port position; for detailed configuration and special working condition parameters, please refer to the official YUKEN manual[1][5].
