PVB series vickers piston pump
Wechat: +86 13728707767
Whats app: +86 13728707767
E-mail: hyd-sales2009@outlook.com
General Specifications
-
Pump Type: Axial piston pump, fixed and variable displacement models available
-
Operating Pressure Range: Up to 210 bar (3000 psi) for anti-wear hydraulic oil; specific values vary by model and fluid type
-
Displacement Range: 10.55 – 197.5 cm³/r (0.64 – 12.0 in³/r)
-
Maximum Shaft Speed: Up to 3600 r/min (varies by model)
-
Applicable Fluids: Anti-wear hydraulic oil, water-in-oil emulsion (40%/60%), water-glycol
-
Compliance Standards: SAE standards for all models; DIN/ISO 3019 Part 2 for PVB 5/6, 10/15, 20/29

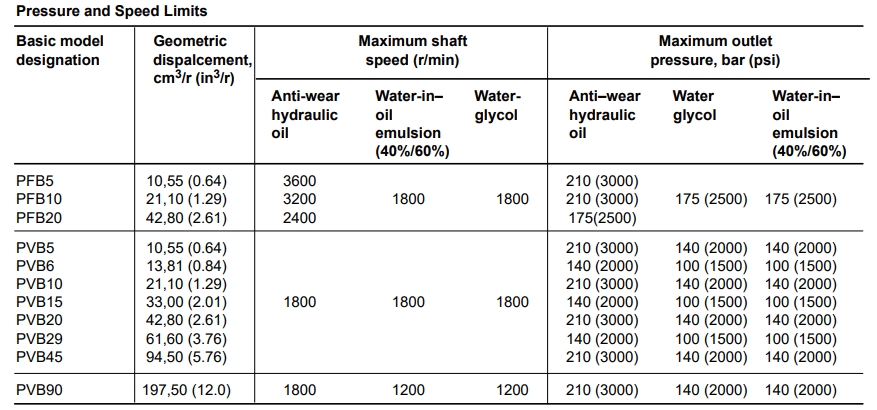

Model-Specific Technical Parameters
|
Model
|
Displacement (cm³/r / in³/r)
|
Max Shaft Speed (r/min)
|
Max Outlet Pressure (bar/psi) – Anti-wear Oil
|
Max Outlet Pressure (bar/psi) – Water-Glycol / Water-in-Oil Emulsion
|
Approx. Weight (kg/lb)
|
|---|---|---|---|---|---|
|
PVB 5
|
10.55 / 0.64
|
1800
|
210 / 3000
|
140 / 2000
|
8 / 18
|
|
PVB 6
|
13.81 / 0.84
|
1800
|
140 / 2000
|
100 / 1500
|
8 / 18
|
|
PVB 10
|
21.10 / 1.29
|
1800
|
210 / 3000
|
140 / 2000
|
15 / 33
|
|
PVB 15
|
33.00 / 2.01
|
1800
|
140 / 2000
|
100 / 1500
|
15 / 33
|
|
PVB 20
|
42.80 / 2.61
|
1800
|
210 / 3000
|
140 / 2000
|
26 / 57
|
|
PVB 29
|
61.60 / 3.76
|
1800
|
140 / 2000
|
100 / 1500
|
26 / 57
|
|
PVB 45
|
94.50 / 5.76
|
1800
|
210 / 3000
|
140 / 2000
|
96 / 211 (flange/foot mounting)
|
|
PVB 90
|
197.50 / 12.0
|
1800 (anti-wear oil); 1200 (other fluids)
|
210 / 3000
|
140 / 2000
|
104 / 230
|
Control Options
-
Pressure Compensator (C/CM): Adjustable pressure range; CM type for lower pressure settings (17-100 bar / 250-1500 psi) except PVB 90. C type range: 17-210 bar (250-3000 psi) for most models, 19-210 bar (275-3000 psi) for PVB 90.
-
Remote Pressure Compensator (CG): Available for PVB 5-29, enabling remote pressure adjustment.
-
Load Sensing Compensator (CVP): Matches flow and pressure to load demands, suitable for PVB series.
-
Mechanical Control: Handwheel (H) and lever (M) controls for PVB 5-15; V type (no handle) available.
Installation Details
-
Mounting Type: Flange mounting (SAE standard) for most models; foot mounting option for PVB 45/90.
-
Shaft Extension: Metric shaft (DIN/ISO 3019 Part 2, VDMA 24560 Part 1) for N type; Y type (SAE only) for PVB 5-15.
-
Special Option: S30 drain port option for PVB 5-29, allowing vertical mounting (shaft upward).
Complete products, original authentic products, fast delivery!Welcome to consult.
