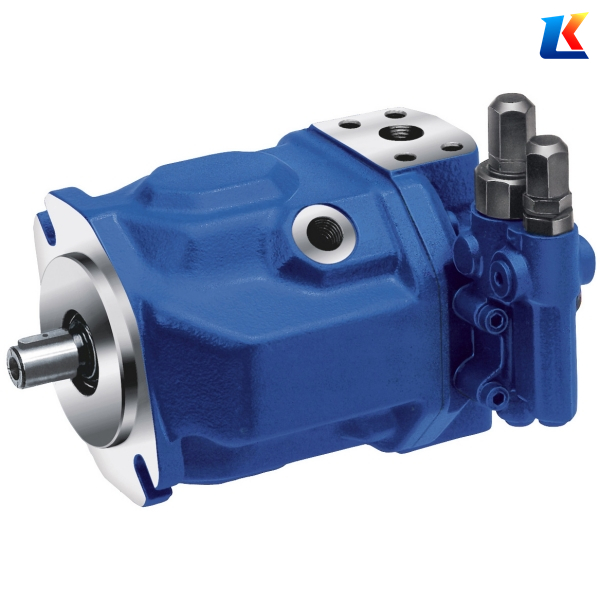

A10VSO140DFR/31R-VPA12N00 Rexroth axial piston pump

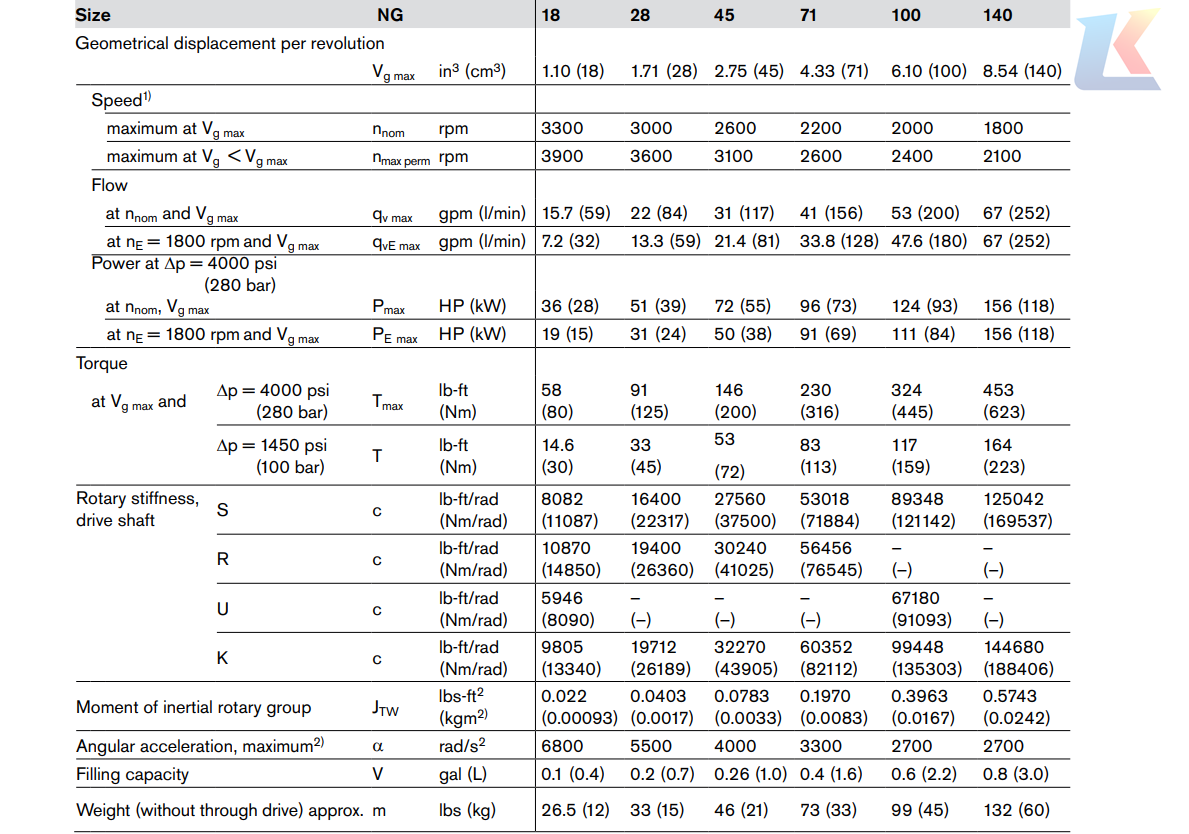

A10VSO pump specifications： a10vso18,a10vso28,a10vso45,a10vso71,a10vso100,a10vso140
| Whats app: +86 13728707767 |
| E-mail: hyd-sales2009@outlook.com |
| We are a professional manufacturer of hydraulic pumps, offering a complete range of products. Inquiries are welcome! (#^.^#) |
Parameters of Rexroth Axial Piston Pump A10VSO140DFR/31R-VPA12N00
1. Model Interpretation
2. Basic Specifications
-
Pump Type: Axial piston pump, variable displacement
-
Circuit Type: Open circuit
-
Structural Design: Swash plate design
-
Sealing Material: FKM (Fluorocaoutchouc) as standard
-
Weight (Approx.): 80 kg
-
Warranty Period: 1 year
3. Performance Parameters
-
Maximum Geometric Displacement: 140 cm³/rev (8.54 in³/rev)
-
Nominal Pressure (pnom): 280 bar (4000 psi)
-
Peak Pressure (pmax): 350 bar (5100 psi)
-
Speed Range: 600 – 2500 rpm
-
Nominal Speed (at max displacement): 1800 rpm
-
Maximum Flow Rate (at 1800 rpm, max displacement): 252 L/min
-
Flow Rate (at 1500 rpm, max displacement): 210 L/min
-
Nominal Power (at nominal flow and pressure): 118 kW
-
Torque (at nominal pressure and max displacement): 624 Nm
-
Differential Pressure (FR): 14.0 bar
4. Structure & Control
-
Control Mode: Pressure and flow control (hydraulic, X-T open circuit), stepless flow adjustment via swash plate angle
-
Swash Plate: Hydrostatically unloaded swash plate bearing for high reliability
-
Rotation Direction: Clockwise (viewed from the shaft end)
-
Through Drive: Not available (cannot be used in tandem with additional pumps)
-
Solenoid Connector: Not included
-
Internal Drain Line: No
5. Installation & Interface
-
Mounting Flange: ISO 3019-2 (metric), 4-hole pattern
-
Shaft End: ISO shaft key
-
Working Ports: B flange (metric) and S flange (metric)
-
Suction Performance: Excellent, minimizing cavitation risk
6. Other Characteristics
-
Operating Noise: Low noise level
-
Service Life: Long service life with robust construction
-
Oil Requirement: Suitable for HFA, HFB, HFC hydraulic fluids (excluding Skydrol)
-
Application: Suitable for machine tools, die-casting machines and other industrial applications requiring variable flow and stable pressure.
| A10VSO100DFLR/31R-PPA12N00 A10VSO100DFR/31R-PPA12KB5 A10VSO100DFR/31R-PPS12N00 A10VSO100DFR/31R-PSC62K07 A10VSO100DFR/31R-VPA12N00 A10VSO100DFR/31RPSB12K24 A10VSO100DFR1/31R-PPA12K A10VSO100DFR1/31R-PPA12K68 A10VSO100DFR1/31R-PPA12KB3 A10VSO100DFR1/31R-PPA12N00 A10VSO100DFR1/31R-PPA12N01 A10VSO100DFR1/31R-PPB12N00 A10VSO100DFR1/31R-VPA12K01 A10VSO100DR/31R-PPA12N00 A10VSO100DR/31R-PPB12N00 A10VSO100DR/31R-PSC12N00 A10VSO100DR/31R-VPA12N00 A10VSO100DR/32R-VPB22U99 A10VSO100DRG/31R-VPA12N00 A10VSO100DRS/31R-PPA12N00 A10VSO10DFR1/31R-PPA12N00 A10VSO10DR/31R-PPA12N00 A10VSO140DFLR/31R-PPB12N00 A10VSO140DFLR/31R-VPA12N00 A10VSO140DFLR1/31R-PPB12K01 A10VSO140DFR/31R-PPA12KB5 A10VSO140DFR/31R-PPS12N00 |
A10VSO140DFR/31R-PSC62K07 A10VSO140DFR/31R-VPA12N00 A10VSO140DFR1/31R-PPA12K01 A10VSO140DFR1/31R-PPA12K68 A10VSO140DFR1/31R-PPA12KB3 A10VSO140DFR1/31R-PPA12N00 A10VSO140DFR1/31R-PPA12N02 A10VSO140DFR1/31R-PPB12N00 A10VSO140DFR1S/31RPPB12N0 A10VSO140DR/31R-PPB12N00 A10VSO140DR/31R-PPB12N01 A10VSO140DR/31R-PSC12N00 A10VSO140DRG/31R-VPA12N00 A10VSO140DRS/31R-PPA12N00 A10VSO180FR1/31R-PPA12N00 A10VSO18DFR1/31R-PPA12N00 A10VSO18DFR1/31R-PPB12N00 A10VSO18DFR1/31R-VPA12K01 A10VSO18DFR1/31R-VPA12N00 A10VSO18DFR1/31R-VSA12N00 A10VSO18DFR1/31R－PPA12N00 A10VSO18DR/31R-PPA12N00 A10VSO18DR/31R-PSC12N00 A10VSO18DR/31R-VSA12N0 A10VSO18DR31/RVPA12N00 A10VSO18DRG/31R-VPA12N00 A10VSO28DFLR/31R-VPA12N00 |
A10VSO28DFR/31R-PPA12N00 A10VSO28DFR/31R-PSA12N00 A10VSO28DFR1/31R-PPA12N00 A10VSO28DFR1/31R-PSA12N00 A10VSO28DFR1/31R-VPA12K01 A10VSO28DFR1/31R-VPA12N00 A10VSO28DFR1/31R-VSA12N00 A10VSO28DFR1/31R－PPA12N00 A10VSO28DR/31K-PSC62K01 A10VSO28DR/31L-PPA12K001 A10VSO28DR/31L-PPA12K01 A10VSO28DR/31R-PPA12N00 A10VSO28DR/31R-VPA12K01 A10VSO28DR/31R-VPA12K68 A10VSO28DR/32R-PPA121V00 A10VSO28DR31/RVPA12N00 A10VSO28DRF1/31R-PSA12N00 A10VSO28DRS/31R-PPA12N00 A10VSO45DFLR/31R-VPA12N00 A10VSO45DFR/31R-PPA12KB5 A10VSO45DFR/31R-PPA12N00 A10VSO45DFR/31R-PSC62K07 A10VSO45DFR1/31R-PPA12KB3 A10VSO45DFR1/31R-PPA12N00 A10VSO45DFR1/31R-PPB12N00 A10VSO45DFR1/31R-VPA12K68 A10VSO45DFR1/31R-VPA12N00 |
A10VSO45DR/31R-PPA12K25 A10VSO45DR/31R-PPA12N00 A10VSO45DR/31R-PPS12N00 A10VSO45DR/31R-PSC62K02 A10VSO45DR/52R-PC12N00 A10VSO45DRS/31R-PPA12N00 A10VSO58DFR1/31R-PPA12N00 A10VSO71DFLR/31R-PPA12N00 A10VSO71DFR/31R-PPA12KB3 A10VSO71DFR/31R-PPB12N00 A10VSO71DFR/31R-PPS12N00 A10VSO71DFR/31R-PSC62K07 A10VSO71DFR1/31R-PPA12K01 A10VSO71DFR1/31R-PPA12K68 A10VSO71DFR1/31R-PPA12KB5 A10VSO71DFR1/31R-PPA12N00 A10VSO71DFR1/31R-PPB12N00 A10VSO71DFR1/31R-VPA12N00 A10VSO71DFR1/32R-VPB22U99 A10VSO71DFRI/34PSC6402 A10VSO71DR/31R-PPA12N00 A10VSO71DR/31R-PPB12N00 A10VSO71DR/31R-PSC12N00 A10VSO71DR/31R-VPA12N00 A10VSO71DRG/31R-VPA12N00 A10VSO71DRS/32R-VPB22U99 A10VSO71FR1/31R-PPA12N00 |
Complete products, original authentic products, fast delivery!Welcome to consult.
