Rexroth A11V Series Variable Displacement Axial Piston Pumps
1. Series Overview
2. Core Features
-
Swashplate design enables stepless variable displacement between maximum and zero flow.
-
Nominal pressure of 350 bar, maximum pressure up to 400 bar for high-power output.
-
Self-priming capability; optional charge pump (for sizes 130-260) ensures stable oil supply.
-
Through-shaft drive allows mounting of additional pumps (gear pumps/axial piston pumps) of the same nominal size.
-
Externally adjustable power control for on-the-fly performance tuning.
-
Low operating noise, long service life, and compact structure for easy integration.

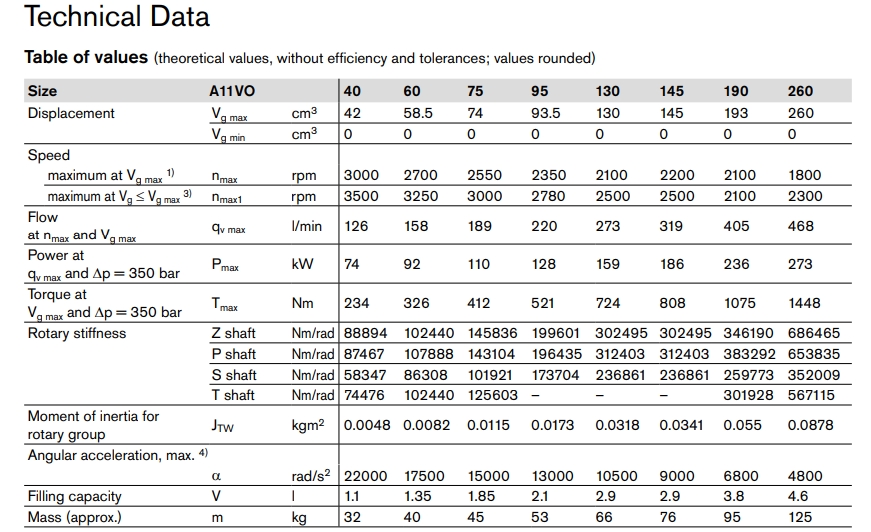

3. Technical Specifications
3.1 A11VO Sub-series (Standard Version)
|
Model
|
Max Displacement (Vg max)
|
Max Speed (at Vg max)
|
Max Speed (at Vg ≤ Vg max)
|
Max Flow (at Vg max & nmax)
|
Max Power (at 350 bar)
|
Max Torque (at 350 bar)
|
Rotary Stiffness (Z shaft)
|
Approx. Weight
|
|---|---|---|---|---|---|---|---|---|
|
A11VO 40
|
42 cm³/rev
|
3000 rpm
|
3500 rpm
|
126 l/min
|
74 kW
|
234 N·m
|
88894 N·m/rad
|
32 kg
|
|
A11VO 60
|
58.5 cm³/rev
|
2700 rpm
|
3250 rpm
|
158 l/min
|
92 kW
|
326 N·m
|
102440 N·m/rad
|
40 kg
|
|
A11VO 75
|
74 cm³/rev
|
2550 rpm
|
3000 rpm
|
189 l/min
|
110 kW
|
412 N·m
|
145836 N·m/rad
|
45 kg
|
|
A11VO 95
|
93.5 cm³/rev
|
2350 rpm
|
2780 rpm
|
220 l/min
|
128 kW
|
521 N·m
|
199601 N·m/rad
|
53 kg
|
|
A11VO 130
|
130 cm³/rev
|
2100 rpm
|
2500 rpm
|
273 l/min
|
159 kW
|
724 N·m
|
302495 N·m/rad
|
66 kg
|
|
A11VO 145
|
145 cm³/rev
|
2200 rpm
|
2500 rpm
|
319 l/min
|
186 kW
|
808 N·m
|
302495 N·m/rad
|
76 kg
|
|
A11VO 190
|
193 cm³/rev
|
2100 rpm
|
2100 rpm
|
405 l/min
|
236 kW
|
1075 N·m
|
346190 N·m/rad
|
95 kg
|
|
A11VO 260
|
260 cm³/rev
|
1800 rpm
|
2300 rpm
|
468 l/min
|
273 kW
|
1448 N·m
|
686465 N·m/rad
|
125 kg
|
3.2 A11VLO Sub-series (High-Speed Version with Charge Pump)
|
Model
|
Max Displacement (Vg max)
|
Max Speed (at Vg max)
|
Max Flow (at Vg max & nmax)
|
Max Power (at 350 bar)
|
Max Torque (at 350 bar)
|
Approx. Weight
|
|---|---|---|---|---|---|---|
|
A11VLO 130
|
130 cm³/rev
|
2500 rpm
|
325 l/min
|
190 kW
|
724 N·m
|
72 kg
|
|
A11VLO 145
|
145 cm³/rev
|
2500 rpm
|
363 l/min
|
211 kW
|
808 N·m
|
73 kg
|
|
A11VLO 190
|
193 cm³/rev
|
2500 rpm
|
483 l/min
|
281 kW
|
1075 N·m
|
104 kg
|
|
A11VLO 260
|
260 cm³/rev
|
2300 rpm
|
598 l/min
|
349 kW
|
1448 N·m
|
138 kg
|
4. Control Options
5. Application Scope
