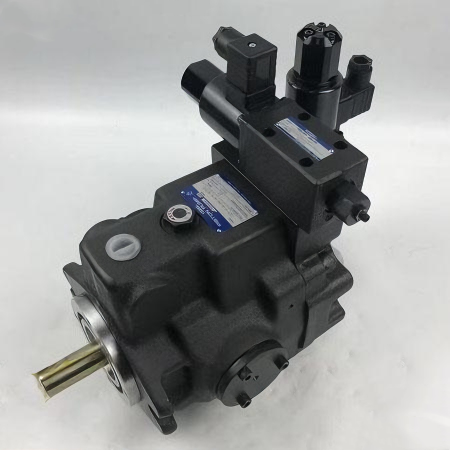

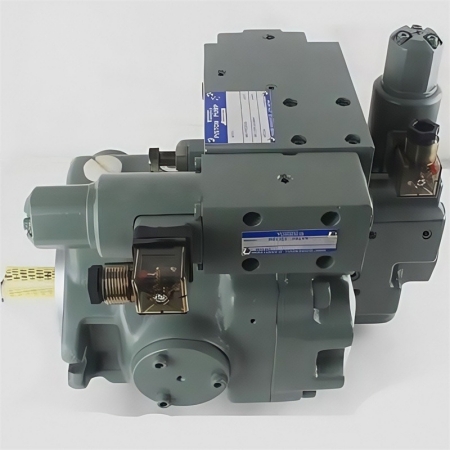

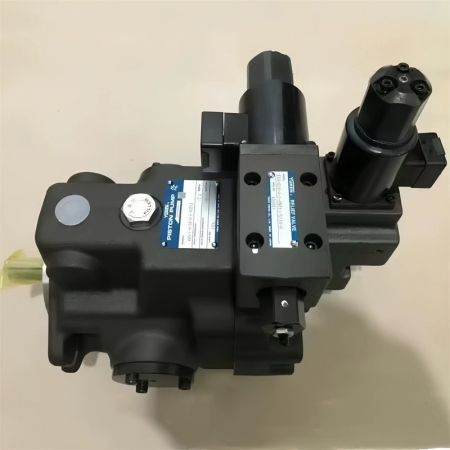

A22 series Yuken Variable piston pump

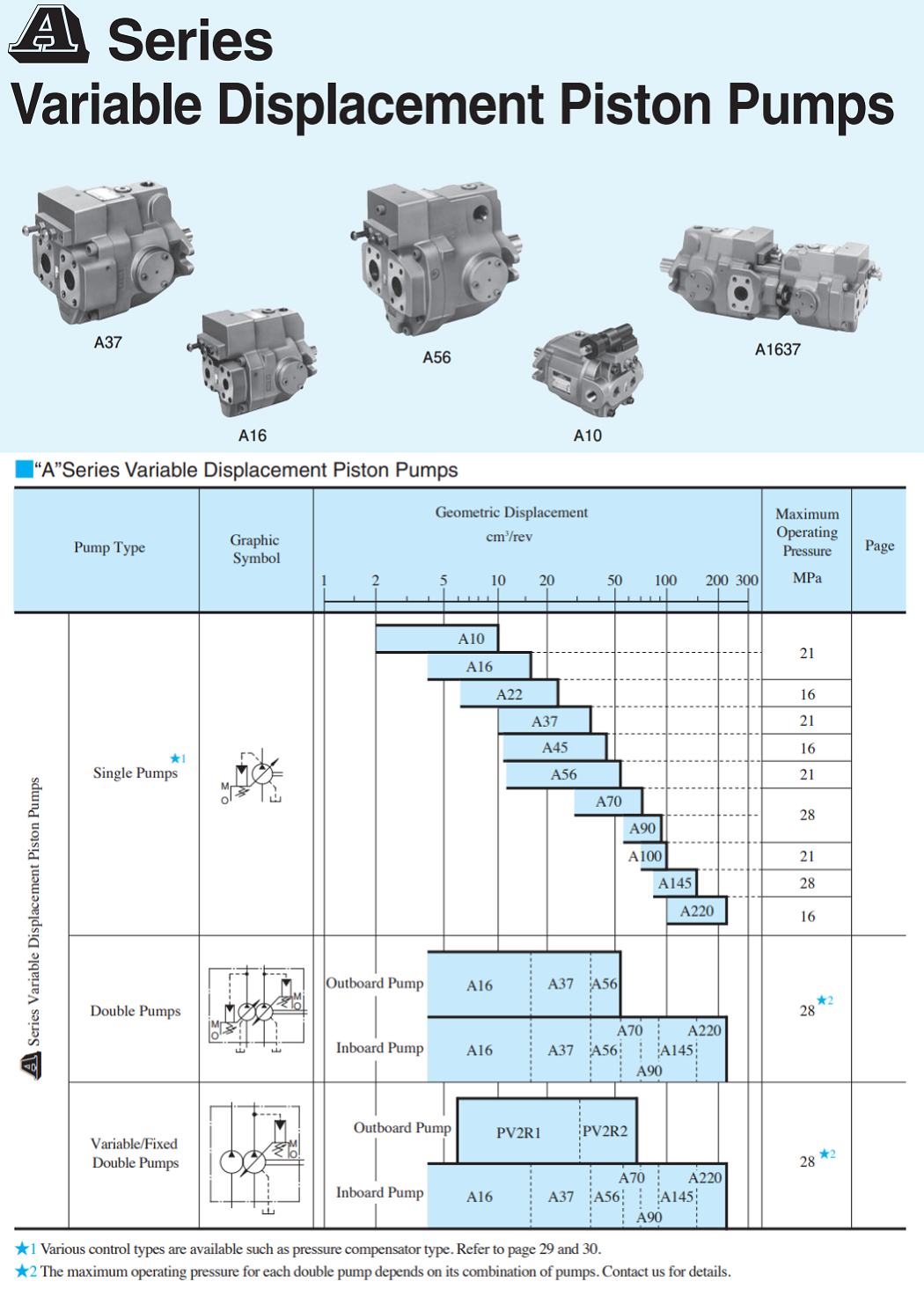

Youyan A series variable piston pumps have a wide range of displacement, ranging from 10cm3/rev to 219cm3/Rev. Common displacement includes: A10, A16, A22, A37, A56, A70, A90, A145
E-mail: hyd-sales2009@outlook.com
YUKEN A22 Series Variable Displacement Piston Pump: Models and Parameters
1. Model Specifications
1.1 Standard Model Format
-
A22: Series number (geometric displacement: 22.0 cm³/rev)
-
※ (1st): Mounting type – F: Flange mounting; L: Foot mounting
-
R: Rotation direction (clockwise when viewed from the shaft extension end, standard type; counterclockwise is available on request)
-
09: Control type – Constant power control
-
※ (2nd): Power characteristics – C: 7.5kW; D: 11kW; E: 15kW; F: 18.5kW
-
※ (3rd): Specified control pressure – 14M: 14MPa; 16M: 16MPa; 17.5M: 17.5MPa; 21M: 21MPa
-
K: Design code
-
32: Design number
1.2 Common Specific Models
-
A22-F-R-09-C-16M-32
-
A22-F-R-09-D-14M-32
-
A22-F-R-09-E-21M-32
-
A22-F-R-09-F-17.5M-32
-
A22-L-R-09-C-10.5M-32 (Foot mounting type)
-
A22-F-R-01-D-S-K-32 (Pressure compensator control type)
2. Key Technical Parameters
|
Parameter Item
|
Specification
|
Remarks
|
|
Geometric Displacement
|
22.0 cm³/rev (1.34 cu.in./rev)
|
Standard value of A22 series
|
|
Minimum Adjustable Flow
|
5 cm³/rev (0.305 cu.in./rev)
|
Pressure compensator control type
|
|
Rated Working Pressure
|
16 MPa (2320 psi)
|
Depends on power characteristics
|
|
Maximum Working Pressure
|
21 MPa (3050 psi)
|
Intermittent working pressure; up to 31.5 MPa for special models
|
|
Shaft Speed Range
|
550 – 1800 r/min
|
No load to full load operation
|
|
Volumetric Efficiency
|
Over 97.5%
|
At 160 kgf/cm² and 1800 r/min
|
|
Overall Efficiency
|
Over 89.5%
|
At 160 kgf/cm² and 1800 r/min
|
|
Noise Level
|
58.5 dB(A) max
|
At full cut-off pressure 210 kgf/cm², 1500 r/min, 1m away from pump head cover
|
|
Weight
|
20.3 – 22.8 kg (44.8 – 50.3 lbs)
|
Depends on mounting type (flange/foot)
|
|
Recommended Hydraulic Oil
|
Petroleum-based anti-wear oil or R&O oil (ISO VG 32 or 46)
|
Viscosity range: 20 – 400 cst (0 – 60℃)
|
|
Contamination Control
|
NAS Grade 9
|
Suction filter ≥100μm; return line filter ≤10μm
|
3. Supplementary Notes
-
The maximum working pressure of the A22 series varies with power characteristics; refer to the power characteristic table for details.
-
Counterclockwise rotation models are available on request; please contact YUKEN or its authorized distributors for customization.
-
The A22 series pump does not include pipe flange components; please order separately according to the required flange type if needed.
-
When installing the pump, ensure the filling port is positioned upwards to avoid operational failures; regular maintenance of the oil filter is recommended to extend the pump service life.
