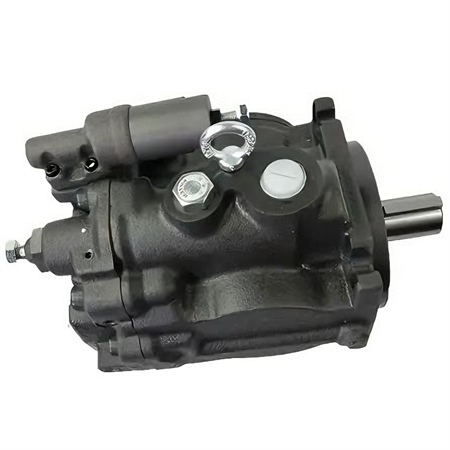

A3H145 Series High pressure variable piston pump
YUKEN “A3H” series high pressure variable piston pump：
A3H16、A3H37、A3H56、A3H71、A3H100、A3H145、A3H180
E-mail: hyd-sales2009@outlook.com
YUKEN A3H series hydraulic pumps are high-pressure variable piston pumps developed by YUKEN Company. They have a variety of specifications and models. The following are introduced from four aspects: basic model, suffix combination, complete model example, and control type.：
Basic model
The basic models of YUKEN A3H series hydraulic pumps are named according to the displacement size. Common models include：
A3H16, A3H37, A3H56, A3H71, A3H100, A3H145, A3H180
The core specifications of YUKEN A3H145 series high pressure variable piston pumps are as follows：
1. Basic performance
Displacement: 145 ml/rev (inferred based on model number)
Rated working pressure: 350 bar (standard working conditions)
Maximum working pressure: 400 bar (intermittent working conditions)
Speed range: 500-2000 rpm (conventional operation), the maximum allowable intermittent speed is 2200 rpm (similar series design)
2. Structure and control
Variable control method: support pressure compensation and load-sensitive control (the model suffix FR means flange-mounted)
Typical models: A3H145-FR01KK-10 (flange vertical axis installation), A3H145-LR01KK-10 (side vertical installation)
Sealing material: Fluorine rubber piston ring, suitable for mineral oil hydraulic medium
3. Application and supply
Main applications: industrial heavy machinery and equipment, such as die-casting machines and injection molding machines…
Complete products, original authentic products, fast delivery!Welcome to consult.
