REXROTH A7VO Series Hydraulic Pump – Specifications & Model Explanation
1. Model Explanation
-
The series is primarily applied in open-loop hydraulic systems, with flexible control modes to adapt to diverse load and speed regulation demands of industrial and mobile equipment.
-
Constructed with cast iron housings and high-wear-resistant seals, it excels in harsh working environments involving high temperature, heavy dust, and strong vibration, ensuring extended service life.
-
Optional integrated components include pressure relief valves, check valves, and control cylinders, which must be specified in the configuration code during model selection to meet system-specific needs.
-
Interface specifications cover SAE flanges and metric threaded ports, with the specific type clearly indicated in the middle segment of the model code.
-
A7VO: Series identifier (open-loop swashplate-type axial piston variable pump)
-
55: Rated displacement (55 cm³/r, at maximum swashplate angle)
-
DR: Control mode (pressure-compensated proportional control, manual override available)
-
63R: Interface & rotation direction (63 series SAE flange, right-hand rotation)
-
VZB01: Configuration code (standard mounting, no integrated valve, general-purpose seal)

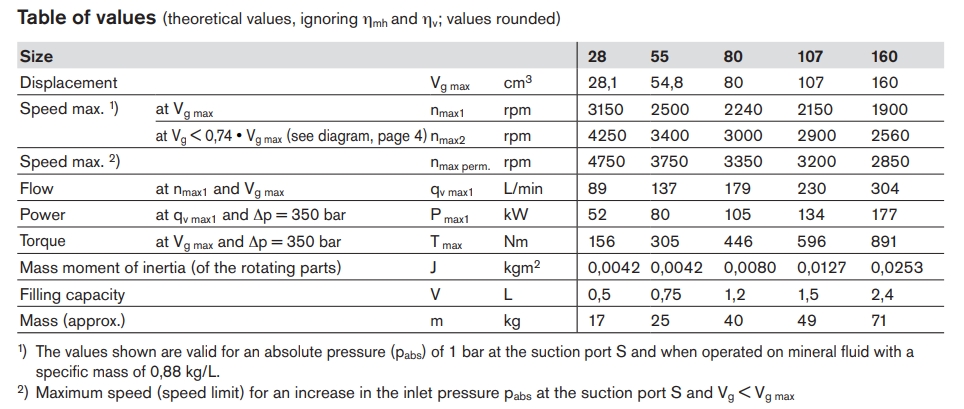

2. Core Specifications
2.1 Displacement Range
-
Standard Models: 20 cm³/r to 500 cm³/r (covering A7VO20, A7VO28, A7VO55, A7VO107, A7VO250, A7VO500, etc.)
-
Stepless Adjustment: Displacement is continuously adjustable via swashplate angle, enabling precise flow control to match variable system demands.
2.2 Operating Pressure
-
Nominal Pressure: 35 MPa (5076 PSI) for medium-displacement models; 32 MPa (4641 PSI) for large-displacement models (≥250 cm³/r)
-
Peak Pressure: 40 MPa (5802 PSI) (short-term operation, ≤10 minutes, non-recurrent)
2.3 Speed Range
-
Rated Speed: 1800 – 2500 rpm (varies slightly by displacement)
-
Minimum Stable Speed: ≥80 rpm (without cavitation, ensuring smooth startup at low speed)
-
Maximum Allowable Speed: 3000 rpm (continuous operation for models ≤160 cm³/r); 2800 rpm for models >160 cm³/r
2.4 Other Key Parameters
-
Noise Level: ≤72 dB (at rated speed and nominal pressure, lower than industry average)
-
Working Temperature: -25℃ to 95℃ (hydraulic oil temperature; recommended 15℃ – 60℃ for optimal performance)
-
Hydraulic Oil Compatibility: Mineral oil (meets DIN 51524), synthetic hydraulic oil, and biodegradable hydraulic oil for eco-friendly applications
-
Drive Shaft Load Capacity: Radial load ≤ 3000 N; Axial load ≤ 1200 N (protecting shaft bearings from excessive stress)
3. Product Features
-
Open-Loop Optimization: Tailored for open hydraulic systems, featuring excellent oil suction performance and stable flow output, suitable for equipment requiring independent oil tank circulation.
-
Diversified Control Modes: Supports pressure compensation control (DR), flow control (LR), electric proportional control (EP), and manual control, adapting to both manual operation and automated control systems.
-
Robust & Durable Structure: High-precision swashplate, hardened cylinder block, and wear-resistant plungers ensure reliable operation under high-pressure and heavy-load conditions, with low maintenance requirements.
-
Efficient Power Transmission: Advanced hydraulic design minimizes internal leakage, achieving energy efficiency of over 90% at rated working conditions, reducing energy consumption.
-
Global Certification & Compatibility: Complies with CE, UL, and ISO standards, compatible with international hydraulic system configurations, suitable for global industrial and mobile equipment markets.
-
Wide Application Scope: Ideal for construction machinery (excavators, loaders), agricultural machinery, metallurgical equipment, and heavy-duty industrial hydraulic systems.
