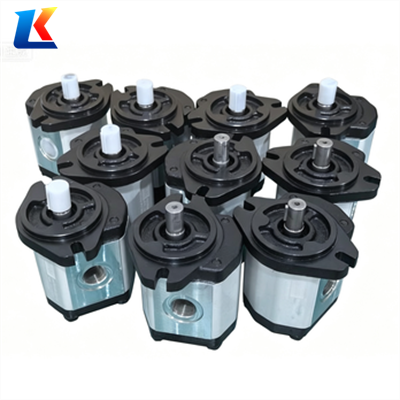

Rexroth AZPF Series External Gear Pumps
Rexroth Gear Pump：AZPB/ AZPF/ AZPN/ AZPG/ AZPS/ AZPT/ AZPU/ AZPJ/ 1PF2G/ PGF/ PGH/ PGM…
| Contact us |
| Whats app: +86 13728707767 |
| E-mail: hyd-sales2009@outlook.com |
1. Series Overview
Core Features
-
Displacement Range: 4.0~28 cm³/rev (10 standard specifications from 004 to 028)
-
Pressure Rating: Continuous working pressure 250 bar, intermittent peak pressure 280 bar
-
Structural Design: Sliding bearing design suitable for heavy-load applications; supports multi-pump combination (dual pump AZPFF, triple pump AZPFFF)
-
Diversified Configurations: Multiple shaft types, flanges, port types and sealing options to meet diverse installation requirements
2. Complete Model Coding Rules
|
Field
|
Example
|
Description
|
|
Series Code
|
AZPF
|
Advanced Zahnrad-Pumpe Flansch (External Gear Pump)
|
|
Frame Size
|
10/11/12
|
10 = small displacement, 11 = medium displacement, 12 = large displacement
|
|
Theoretical Displacement
|
004/005/008/011/014/016/019/022/025/028
|
Unit: cm³/rev (e.g., 004=4 cm³/rev)
|
|
Rotation Direction
|
R/L/RRR
|
R = Right-hand rotation (viewed from shaft end), L = Left-hand rotation, RRR = Bi-directional rotation
|
|
Shaft Type
|
C/R/H/O
|
C = 1:5 Tapered shaft, R = Cylindrical key shaft, H = Spline shaft, O = Special shaft
|
|
Flange Type
|
B/N/P/K
|
B = φ80mm rectangular flange, N = ISO flange, P = Special flange, K = Light-duty flange
|
|
Port Configuration
|
20/30/12
|
20 = ISO 8434-1, 30 = Special configuration, 12 = SAE thread
|
|
Sealing Material
|
M/K/P
|
M = NBR seal, K = FKM fluororubber seal, P = Special seal
|
|
Pressure Grade
|
B/M
|
B = Standard pressure, M = High pressure grade
|
|
Special Code
|
-S0003
|
Optional configuration (e.g., silent type, special installation)
|
3. Complete Specification Parameter Table
|
Parameter Category
|
Technical Specification
|
Remarks
|
|
Displacement Range
|
4.0, 5.0, 8.0, 11, 14, 16, 19, 22, 25, 28 cm³/rev
|
10 standard specifications in total
|
|
Pressure Parameters
|
Continuous working pressure: 250 bar Intermittent peak pressure: 280 bar Short-term maximum peak pressure: 300 bar
|
Standard bearing Series 1, reinforced bearing Series 2
|
|
Speed Range
|
500~4000 rpm Minimum stable speed: 1000 rpm (high-pressure working condition)
|
Depends on fluid viscosity and pressure conditions
|
|
Efficiency Index
|
Volumetric efficiency: 90%~95% (≥92% under full load) Total efficiency: ≥85%
|
Pressure-compensated clearance sealing technology
|
|
Fluid Requirements
|
Mineral hydraulic oil, viscosity: 10~300 mm²/s Recommended viscosity: 37~54 mm²/s
|
Oil temperature: -15℃~+80℃ (short-term up to +100℃)
|
|
Installation Options
|
Shaft type: Cylindrical shaft, 1:5/1:8 tapered shaft, DIN 5482/SAE J744 spline shaft Flange: φ80mm rectangular flange, ISO 8434-1 flange, SAE 2-bolt flange Port type: DIN EN ISO 228-1 internal thread, flange connection
|
Custom special configurations available
|
|
Order Number
|
0510 + 5-digit number (e.g., 0510425044)
|
One-to-one correspondence with AZPF model
|
4. Common Model & Order Number Comparison
|
0510 Order Number
|
Complete AZPF Model
|
Core Parameters
|
|
0510225023
|
AZPF-11-004RAB01MB
|
4 cm³/rev, right-hand rotation, cylindrical shaft, φ80 flange
|
|
0510425009
|
AZPF-11-008RCB20MB
|
8 cm³/rev, right-hand rotation, tapered shaft, φ80 flange
|
|
0510325016
|
AZPF-11-005RQR20MB
|
5 cm³/rev, right-hand rotation, special shaft type
|
|
0510515347
|
AZPF-11-011LFP20PB-S0003
|
11 cm³/rev, left-hand rotation, spline shaft, light-duty flange, silent type
|
|
0510725030
|
AZPF-12-022RCB20KB
|
22 cm³/rev, right-hand rotation, tapered shaft, φ80 flange, high-pressure type
|
|
9510290114
|
AZPF-22-028RRR12MB
|
28 cm³/rev, bi-directional rotation, spline shaft, SAE flange
|
5. Selection Guidelines
-
Confirm Basic Parameters: Determine displacement, pressure grade, speed range and rotation direction
-
Select Installation Configuration: Confirm shaft type (cylindrical/tapered/spline), flange type and port type
-
Consider Working Environment: Select sealing material (NBR/FKM), confirm oil temperature range and medium type
-
Special Requirements: Confirm multi-pump combination, silent type, high-pressure type and other customized demands.
AZP Series (AZPB/AZPF/AZPN/AZPG/AZPS/AZPT/AZPU/AZPJ)
General Introduction
-
Working fluid: Mineral hydraulic oil ISO VG32/46/68
-
Fluid viscosity: 10 ~ 1000 mm²/s
-
Standard mounting: German standard B5 / B35 flange
-
Shaft options: Parallel key shaft or involute spline shaft
Specifications of Sub-models
|
Model
|
Rated Pressure
|
Peak Pressure
|
Displacement Range (ml/r)
|
Allowable Speed (r/min)
|
Key Features & Applications
|
|
AZPB
|
21 MPa
|
25 MPa
|
1.6 ~ 40
|
500 ~ 3600
|
General basic model with side inlet & outlet ports. Application: Ordinary machine tools, small hydraulic power units, general-purpose machinery
|
|
AZPF
|
25 MPa
|
30 MPa
|
1.6 ~ 63
|
500 ~ 3800
|
Best-selling model with dual clearance compensation and low noise. Application: Injection molding machines, forklifts, automated production lines, construction machinery
|
|
AZPN
|
20 MPa
|
24 MPa
|
2.5 ~ 50
|
500 ~ 3400
|
Cost-effective medium-pressure model with lightweight design. Application: Agricultural machinery, light industrial equipment, low-pressure hydraulic systems
|
|
AZPG
|
28 MPa
|
33 MPa
|
2.0 ~ 40
|
600 ~ 3500
|
Reinforced high-pressure version with thickened housing and high impact resistance. Application: Heavy-duty machine tools, auxiliary metallurgical equipment, small construction machinery
|
|
AZPS
|
21 MPa
|
25 MPa
|
1.6 ~ 32
|
500 ~ 3600
|
Low-noise & low-flow pulsation design with special gear profile. Application: Precision machine tools, indoor quiet operating equipment, laboratory hydraulic units
|
|
AZPT
|
25 MPa
|
30 MPa
|
2.5 ~ 50
|
500 ~ 3700
|
High-temperature resistant seals; operating temperature: -20℃ ~ +100℃. Application: Heat treatment equipment, outdoor machinery working under high temperature
|
|
AZPU
|
21 MPa
|
25 MPa
|
1.6 ~ 40
|
500 ~ 3600
|
Modular design for combined double/triple pump assembly. Application: Multi-circuit hydraulic systems, multi-function on-board equipment
|
|
AZPJ
|
16 MPa
|
20 MPa
|
0.8 ~ 16
|
600 ~ 4000
|
Mini low-displacement model with ultra-compact size and high speed capability. Application: Mini hydraulic power units, tooling fixtures, instrumentation equipment
|
Overall volumetric efficiency of the AZP series: ≥ 92% under rated working conditions. Clockwise or counter-clockwise rotation is customizable.
