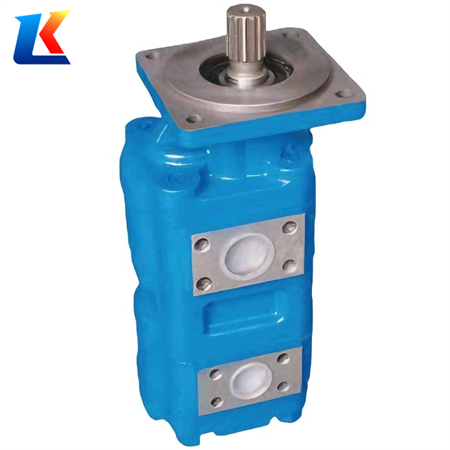

The CBHST-L series external gear pumps are high-performance hydraulic components specifically developed for high-pressure hydraulic systems in various industrial and mobile machinery applications. With advanced structural design, reliable operational performance and excellent environmental adaptability, this series has become a preferred choice for hydraulic power transmission in multiple fields, delivering stable and efficient fluid transfer solutions.
1. Working Principle
As a typical positive displacement pump, the
CBHST-L external gear pump operates based on the fluid displacement principle through the precise meshing of two external spur gears with involute tooth profiles. When the pump is activated, the driving gear drives the driven gear to rotate in opposite directions. On the suction side, the disengagement of gear teeth creates a partial vacuum, which draws hydraulic fluid into the sealed working chambers formed by the gear teeth, pump body and end covers. As the gears continue to rotate, the trapped fluid is conveyed along the outer edge of the gears to the discharge side. Here, the re-engagement of the gear teeth reduces the volume of the working chambers, forcing the fluid to be discharged at high pressure. The meshing line between the two gears effectively separates the high-pressure and low-pressure chambers, preventing fluid backflow and ensuring smooth, low-pulsation fluid delivery.
2. Structural & Performance Features
The CBHST-L series adopts a robust structural design, featuring a high-strength cast iron pump body that provides excellent rigidity and pressure resistance, suitable for long-term operation in harsh industrial environments. It is equipped with high-quality sealing components, which enable stable operation within a wide temperature range of -20℃ to +120℃, effectively preventing fluid leakage and ensuring operational reliability.
The pump’s input shaft uses a rectangular spline connection, which ensures firm power transmission and reduces wear during long-term use. The inlet and outlet ports adopt screw connections, facilitating easy installation, disassembly and maintenance, while also ensuring tight sealing to avoid pressure loss. With an axial automatic compensation structure and radial hydraulic balance design, the pump maintains high volumetric efficiency even at a rotational speed of 600rpm, minimizing energy loss and improving the overall efficiency of the hydraulic system.
Additionally, the pump is equipped with self-lubricating bearings, which enhance its load-bearing capacity and extend its service life. Its simple overall structure, strong resistance to oil contamination and easy maintenance reduce operational and maintenance costs, making it highly adaptable to complex working conditions. The product complies with ISO and UNI assembly dimension standards, enabling good interchangeability with other standard hydraulic components, which is convenient for replacement and upgrading.
3. Application Fields
The
CBHST-L gear pumps are widely used in hydraulic systems of various machinery and equipment, including chassis mobile vehicles (such as dump trucks, truck-mounted cranes, aerial work platforms and municipal engineering vehicles), construction machinery, mining machinery, agricultural machinery, metallurgical equipment and general machinery manufacturing. They are particularly suitable for high-pressure hydraulic application scenarios that require reliable fluid transmission, such as hydraulic lifting, clamping, propulsion and other executive mechanisms, providing stable and efficient hydraulic power support for the normal operation of equipment.
4. General Specifications (Typical)
• Mesh Form: External Engaged • Tooth Flank: Straight Tooth • Tooth Curve: Involute • Body Material: High-Strength Cast Iron • Operating Temperature: -20℃ ~ +120℃ • Shaft Connection: Rectangular Spline • Port Connection: Screw Connection • Drive Mode: Hydraulic Driven / Motor Driven • Pump Shaft Position: Horizontal
With its advanced technology, reliable performance and wide adaptability, the CBHST-L series external gear pumps provide cost-effective hydraulic power solutions for various industrial fields, and have been highly recognized by users for their stability and durability in practical applications.
