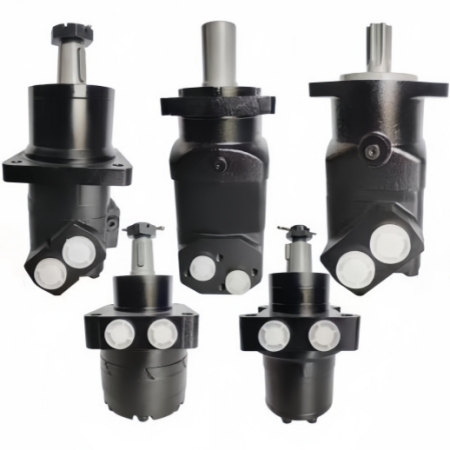

danfoss Cycloid motor
Wechat: +86 13728707767
Whats app: +86 13728707767
E-mail: hyd-sales2009@outlook.com

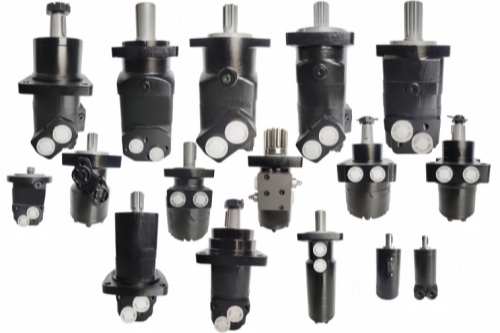

Danfoss Gerotor Motor Specifications and Models
1. OMP/OMPW/OMPX Series
Key Specifications
-
Displacement range: 25 cm³/rev (1.53 in³/rev) to 400 cm³/rev (24.41 in³/rev)
-
Maximum continuous oil flow: 60 litres/minute (15.9 gallons/minute)
-
Intermediate maximum output power: 17.4 hp (13 kW)
-
Maximum intermediate pressure drop: 175 bar (2540 psi)
-
Shaft type: Splined shaft (e.g., 6 splines, 25.4 mm diameter) is optional
-
Flange type: SAE A flange (2-bolt or 4-bolt) is standard
Typical Models
2. OMR/OMRX Series
Key Specifications
-
Displacement range: 50 cm³/rev to 375 cm³/rev
-
Shaft diameter: 25 mm or 25.4 mm (straight shaft or splined shaft)
-
Port specifications: Side port or rear port, thread size G1/2 (main port) and G1/4 (drain port); optional 7/8 main port and 7/16 drain port
-
Flange type: Standard SAE A2 flange
Typical Models
3. OMS Series
Key Specifications
-
Displacement range: 80 cm³/rev to 250 cm³/rev (extended models up to 315 cm³/rev)
-
Structural features: Modular design, flexible configuration of output shaft and bearing assembly
Typical Models
4. OMT Series
Key Specifications
-
Displacement range: 400 cm³/rev to 800 cm³/rev (e.g., OMT 400 with 410.9 cm³/rev (25.07 in³/rev))
-
Mounting flange: 4-bolt square flange (pilot diameter 125 mm, bolt circle diameter 160 mm)
-
Shaft type: Straight shaft (40 mm diameter) with M12×1.75 thread at the end
-
Port specifications: Side port (G3/4), drain port (G1/4)
Typical Models
5. J/H/S/T Series
Key Specifications
-
Displacement range: 5 cm³/rev (0.3 in³/rev) to 22.8 cm³/rev (1.4 in³/rev)
-
Continuous pressure rating: 200 bar (2900 psi)
-
Technology: Gerotor/geroler design with integrated valve slots in the output shaft for smooth low-speed operation
Typical Models
Notes
