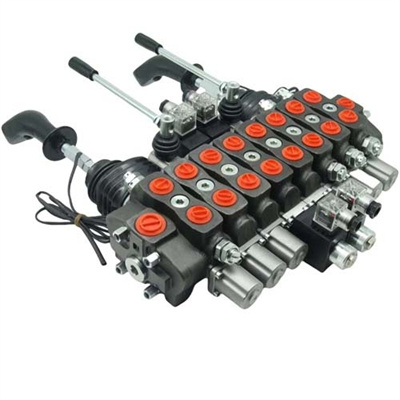

DCV200 directional control valve

DCV directional control valve:DCV20、DCV40、DCV56、DCV58、DCV60、DCV100、DCV140、DCV200
                  E-mail: hyd-sales2009@outlook.com

Description

DCV200 series multi-way directional control valve is a manual or pneumatic-controlled multi-way directional control valve specially designed for medium and high pressure hydraulic systems. It has the characteristics of high pressure, compact structure and strong versatility. It is widely used in construction machinery, sanitation machinery, drilling machinery and other fields.
1. Product features
High pressure design
Rated working pressure: usually 315bar, up to 350bar, suitable for high-pressure hydraulic systems.
Safety valve and overload valve: excellent opening and closing characteristics, which can effectively prevent system overload and ensure the safe operation of equipment.
Compact structure, modular design
Split structure: it consists of an oil inlet valve body, an oil return valve body and multiple reversing valve plates, which supports 1-12 combinations and flexibly adapts to the needs of different actuators.
Threaded connection: The valve plates are connected by threads to facilitate installation, maintenance and function expansion.
Strong versatility and rich functions
Spool valve functions are diverse: it supports A, O, P, Y and other spool valve functions, and can form parallel, series or series-parallel composite oil circuits.
Flexible control mode: two modes of manual control and hydraulic control are provided to meet the needs of different operating scenarios.
Customized options: overload valves, oil replenishment valves, external connectors, etc. can be installed according to user needs to enhance system adaptability.
Material and craftsmanship
Main material: ductile iron or cast iron is used to ensure the strength and corrosion resistance of the valve body.
Sealing performance: A check valve is set inside to prevent oil backflow and reduce the risk of leakage.

2.  the application field
With its high performance and flexibility, DCV200 series multi-way directional control valves are widely used in the following fields:
Construction machinery: such as loaders, excavators, cranes, etc., to achieve collaborative control of multiple actuators.
Sanitation machinery: such as compressed garbage trucks, sweepers, etc., optimize the efficiency and reliability of the hydraulic system.
Drilling machinery: such as mining drilling rigs, geological exploration equipment, etc., to adapt to the high pressure requirements under harsh working conditions.
Agricultural machinery: such as tractors, harvesters, etc., to improve the control accuracy and stability of the hydraulic system.
Marine machinery: such as hatch control, hoisting equipment, etc., to meet the special requirements of the ship’s hydraulic system.

3. Selection suggestions
Clear requirements: According to the type of equipment, working pressure, flow rate and number of actuators, select the appropriate number and specification of the valve body.
Pay attention to performance parameters: give priority to models whose rated pressure, flow rate and safety valve opening and closing characteristics meet the system requirements.
Consider customized requirements: if you need special functions (such as overload protection, external oil inlet, etc.), communicate with the manufacturer in advance to customize the plan..
