DSG-03 Series Solenoid Operated Directional Valves
DSG-03-2B2-D24-N1-51T ; DSG-03-3C4-D24-N1-51T
DSG-03-3C60-A240-N1-50 ; DSG-03-3C2-D24-50
YUKEN DSG-03 Series Solenoid Operated Directional Valve – Specifications & Model Explanation
1. Model Explanation
-
Valves with neutral and side positions: Refer to Page 315 for detailed configurations.
-
AC/DC rectifier type (solenoid type RQ100) does not support “DIN connector type (Type N)”.
-
AC/DC rectifier type (solenoid type R※) and AC/DC rectifier quick-return type (solenoid type RQ100) do not support “DIN connector type with power indicator (Type N1)”.
-
Valves compatible with phosphate ester hydraulic oil are available. For such applications, special fluororubber seals are adopted, and the model should be prefixed with “F-“.
-
Special wiring options include M12-4 pin connector type, central DIN connector type on the valve body, and M12-4 pin DIN adapter connector type. See Pages 323-324 for details.

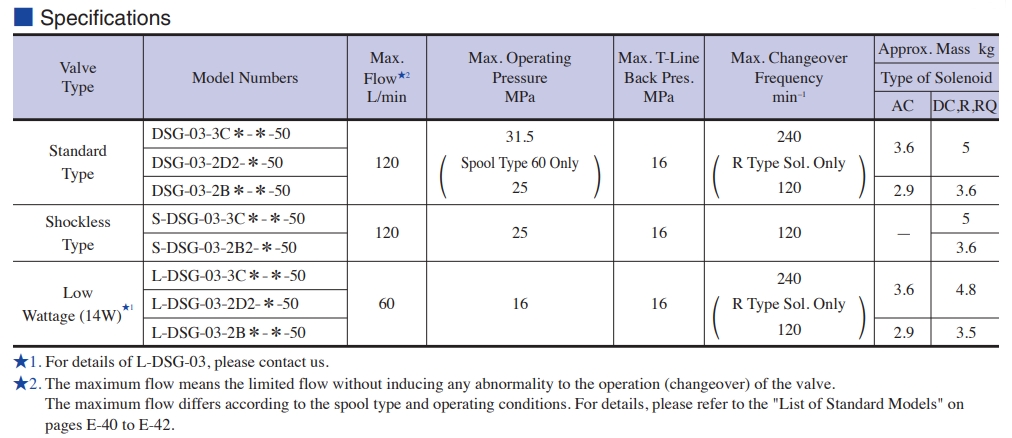

2. Core Specifications
2.1 Flow Rate
-
Standard Type: 120 L/min (31.7 U.S. GPM)
-
Shockless Type: 120 L/min (31.7 U.S. GPM)
-
Low Wattage Type: 60 L/min (15.9 U.S. GPM)
2.2 Maximum Operating Pressure
-
Standard Type: 31.5 MPa (4570 PSI); Spool Type 60: 25 MPa (3630 PSI)
-
Shockless Type: 25 MPa (3630 PSI)
-
Low Wattage Type: 16 MPa (2320 PSI)
2.3 Maximum T-Line Back Pressure
2.4 Maximum Changeover Frequency
-
Standard Type: 240 cycles/min (Type R solenoid: 120 cycles/min)
-
Shockless Type: 120 cycles/min
-
Low Wattage Type: 240 cycles/min (Type R solenoid: 120 cycles/min)
3. Product Features
-
Adopts wet-type solenoids to ensure quiet operation, long service life, and no external oil leakage.
-
Dual types for diverse needs: Standard type (high pressure 31.5 MPa, large flow 120 L/min); Shockless type (minimizes noise and pipeline vibration during spool changeover).
-
Stable performance: High suction force and strong springs guarantee reliable operation even under contaminated working conditions.
-
Global certifications: CE, UL, and CSA certified, suitable for overseas export equipment.
-
Rich wiring options: Includes traditional junction box type, DIN connector type, M12-4 pin connector type (for serial transmission), and central DIN connector type (reduces wiring time).
Complete products, original authentic products, fast delivery!Welcome to consult.
