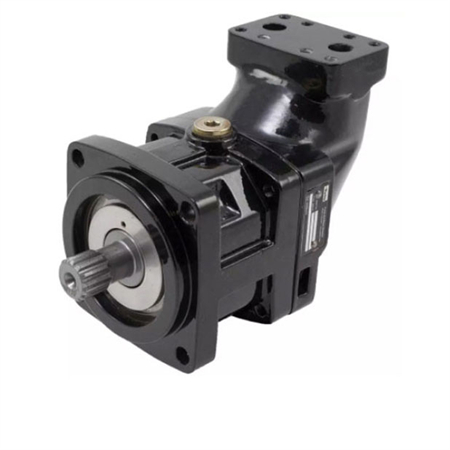

Parker F12-182 Series Hydraulic Motor
F11-005、 F11-006、 F11-010、 F11-012、 F11-014、 F11-019、 F11-150、 F11-250、 F12-30、 F12-40、 F12-60、 F12-80、 F12-90、 F12-110、 F12-125、 F12-152、 F12-162、 F12-182、 F12-250
E-mail: hyd-sales2009@outlook.com
F11 series hydraulic motors: displacement range from 5cc to 250cc, specific specifications include 5cc, 6cc, 10cc, 12cc, 14cc, 19cc, 150cc, 250cc, etc.
F12 series hydraulic motors: displacement range from 30cc to 250cc, specific specifications include 30cc, 40cc, 60cc, 80cc, 90cc, 110cc, 125cc, 152cc, 162cc, 182cc, 250cc, etc.
Parker F12-182 series hydraulic motor is a large-displacement oblique axial plunger quantitative motor, specially designed for heavy-duty applications.
Core specifications
Theoretical displacement: 182 cm3/rev (ml/rev)
Working pressure：
Continuous working pressure: 420 bar
Peak working pressure: 480 bar
Speed range：
Maximum speed: 7300 rpm
Installation method: The installation flange complies with CETOP, ISO, SAE and SAW standards
Main product features
High power density: 40° curved shaft design, compact structure and light weight
High speed capability: thanks to the lightweight piston and compact rotating part design
Excellent durability: heavy-duty roller bearings are designed to withstand large external loads
Low-noise operation: equipped with a well-designed distribution disc to achieve low-noise operation and improve self-priming capacity
Widely used: it is suitable for open and closed circuits, and is commonly used in heavy industrial fields such as construction machinery, mining equipment, and ship propulsion.
Recommendation: The F12 series offers a variety of displacement specifications from 30cc to 250cc.In order to accurately select the model, it is recommended that you provide specific application scenarios (such as the required torque and speed range) in order to confirm whether F12-182 is the best match, or whether you need to consider other displacement models.
| F11-005-GB-CV-K-000-0000 F11-005-HB-CV-K-000-000 F11-005-MB-CV-K-000-0000 F11-005-RB-CV-D-000-0000 F11-006-MB-CV-K-000-0000 F11-006-MB-IV-K-000-000 F11-010-HU-CV-K-000-0000 F11-010-MB-CV-K-000-0000 F11-010-RB-CV-K-000-0000 F11-012-QU-CV-K-000-000 F11-012-RB-CV-K-000-0000 F11-014-HB-CV-K-000-000 F11-014-LU-SV-S-000-0000 F11-014-SF-IV-K-000-0000 F11-019-HB-CV-D-000-0000 |
F11-019-MB-CN-K-000-0000 F11-019-MB-CV-K-000-0000 F11-019-RB-CV-K-000-0000 F12-030-LF-IV-K-000-000 F12-030-LF-IV-P-000-000 F12-030-LS-SV-S-000-000 F12-030-LS-SV-T-000-000 F12-030-LS-TV-P-000-000 F12-030-LS-TV-S-000-000 F12-030-LS-TV-T-000-000 F12-030-MF-IV-P-000-000 F12-030-RS-SV-S-000-000 F12-030-RS-TV-S-000-000 F12-030-RS-TV-T-000-000 F12-030-SF-IS-P-000-000 |
F12-040-MF-IV-D-000-0000 F12-040-MF-IV-K-000-000 F12-040-MF-IV-K-000-0000 F12-040-MS-SN-T-000-000 F12-040-MS-SV-S-000-0000 F12-040-MS-SV-T-000-000 F12-040-MS-SV-T-000-0000 F12-040-MS-TV-T-000-000 F12-040-RF-IV-K-000-0000 F12-060-MF-IV-D-000-0000 F12-060-MF-IV-K-000-0000 F12-060-MS-SV-S-000-0000 F12-060-MS-SV-T-000-0000 F12-060-RF-IV-K-000-0000 F12-060-RS-SV-T-000-0000 |
F12-080-LF-IV-K-000-0000 F12-080-MF-IV-D-000-0000 F12-080-MF-IV-K-000-0000 F12-080-MS-SV-T-000-0000 F12-080-RF-IV-K-000-0000 F12-080-RS-SV-T-000-0000 F12-090-MF-IV-D-000-0000 F12-090-MS-SV-S-000-0000 F12-110-MF-IV-K-000-0000 F12-110-MS-SV-S-000-0000 F12-110-RF-IV-K-000-0000 F12-110-RS-SV-T-000-0000 F12-125-RF-IV-K-000-0000 F12-152-MF-FV-G-000-0000 F12-152-MF-SV-S-000-0000 |
Complete products, original authentic products, fast delivery!Welcome to consult.
