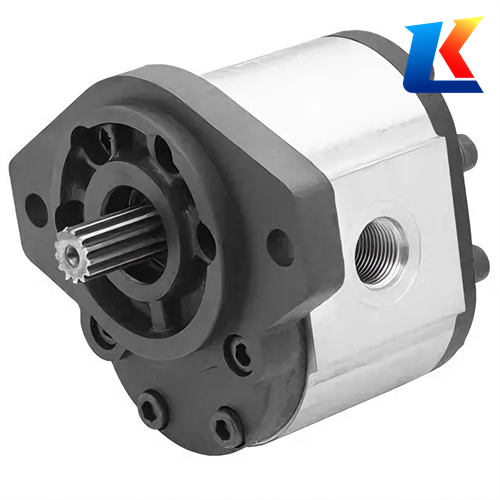

GHP2A-D-6-FG Marzocchi Gear pump
GHP1 pump model: GHP1, GHP1-T, GHP1-MU..
GHP2 pump models: GHP2, GHP2-T, GHP2-MU, GHP2A, GHP2A-KA..
GHP3 pump models: GHP3, GHP3-MU, GHP3A, GHP3A-MU, GHP3A2, GHP3BK1.
E-mail: hyd-sales2009@outlook.com
Marzocchi Gear Pump GHP2A-D-6-FG Parameter Specification
1. General Information
2. Core Technical Parameters
-
Displacement: 6.0 cc/rev (one of the small displacements in the GHP2A series, which covers a displacement range of 3.0 to 20.5 cc/rev).
-
Flow Rate: Approximately 9.0 L/min at 1500 rpm (calculated based on the displacement and standard rotational speed, with slight deviations depending on the actual working conditions).
-
Continuous Working Pressure: 280 bar (equivalent to 28 MPa, ensuring stable operation under long-term high-pressure working conditions).
-
Peak Pressure: 310 bar (equivalent to 31 MPa, suitable for short-term peak load working conditions).
-
Speed Range: 1000 – 3600 rpm (optimized for high-speed operation, with stable performance at the maximum rotational speed).
3. Construction & Material
-
Housing Material: High-strength aluminum alloy (integrated cast structure, with reinforced flange and cover to enhance structural stability and pressure-bearing capacity).
-
Gear Material: Nitrided alloy steel gear pair (supported by high-wear-resistant bushings, effectively reducing wear and internal leakage, ensuring stable operation under high pressure and high speed).
-
Sealing Material: Viton (excellent high-temperature and oil resistance, adapting to various hydraulic oil media; optional mechanical seal is available for harsh working environments to improve sealing reliability).
-
Temperature Range: -10℃ ~ +80℃ (suitable for most industrial working environments; special high-temperature versions can be customized to adapt to working conditions up to 120℃).
Marzocchi GHP Series gear pump model ：GHP1A-D-2 、 GHP1A-D-3 、 GHP1A-D-4 、 GHP1A-D-5 、 GHP1A-D-6 、 GHP1A-D-7 、 GHP1A-D-9 、 GHP1A-D-11 、 GHP1A-D-13 、 GHP1A-D-16 、 GHP1A-D-20 、 GHP1A-D-22 、 GHP1A-D-25 、 GHP1A-D-30 、 GHP1A-D-34 、 GHP1A-D-37 、 GHP1A-D-40 、 GHP1A-D-50 、 GHP1A-D-63 、 GHP1-T-16 、 GHP1-MU-20 、 GHP1A-D-2-FG 、 GHP1AD-16 、 GHP1AD-20 、 GHP1A2-D-2 、 GHP1A2-D-3 、 GHP1A2-D-4 、 GHP1A2-D-5 、 GHP1A2-D-6 、 GHP1A2-D-7 、 GHP1A2-D-9 、 GHP1A2-D-11 、 GHP1A2-D-13 、 GHP1A2-D-16 、 GHP1A2-D-20 、 GHP2A-D-6 、 GHP2A-D-9 、 GHP2A-D-10 、 GHP2A-D-12 、 GHP2A-D-13 、 GHP2A-D-16 、 GHP2A-D-20 、 GHP2A-D-22 、 GHP2A-D-25 、 GHP2A-D-30 、 GHP2A-D-34 、 GHP2A-D-37 、 GHP2A-D-40 、 GHP2A-D-50 、 GHP2-T-20 、 GHP2-MU-30 、 GHP2A-KA-16 、 GHP2BK1-D-16 、 GHP2BK1-D-20 、 GHP3A-D-30 、 GHP3A-D-40 、 GHP3A-D-50 、 GHP3A-D-63 、 GHP3-MU-40 、 GHP3-D-50
