KP30.61、 KP30.73 series casappa gear pumps

KP20 series gear pump:  rated displacement is 25 cm3/rev 。
KP30 series gear pump:  displacement range is 3.40-23.37 cm3/rev 。
KP40 series gear pump:  displacement up to 40 cm3/rev 。
         E-mail:  hyd-sales2009@outlook.com

Description

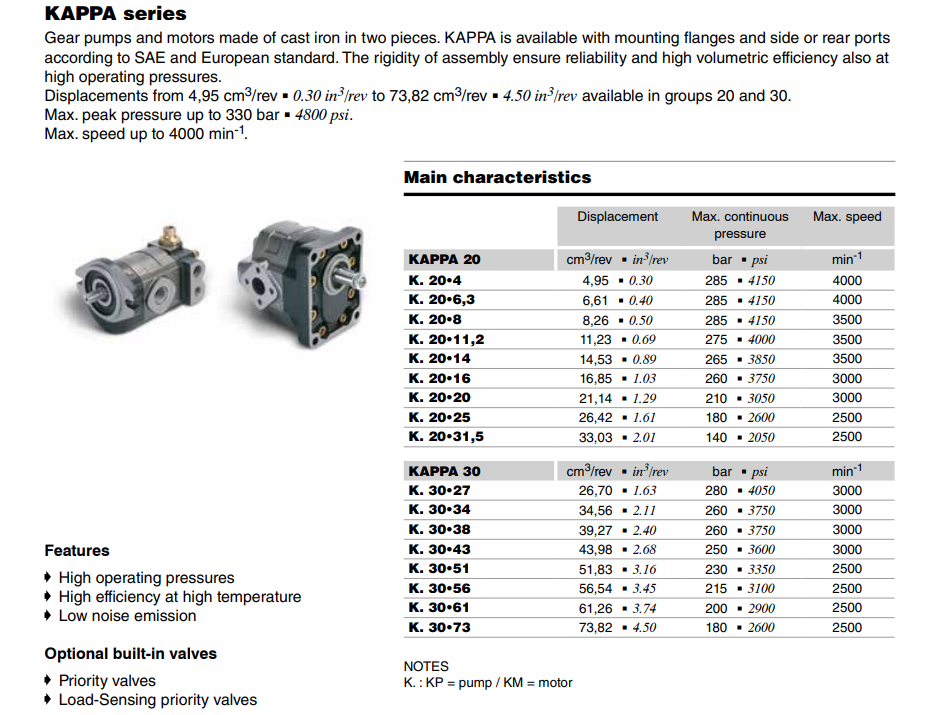

Parameter Description of CASAPPA Gear Pump KP30.61 & KP30.73

The CASAPPA KP30.61 and KP30.73 are part of the Kappa series external gear pumps, featuring cast iron construction for high robustness and compact design. They are widely applied in various hydraulic systems where noise, contamination control and space-saving are critical requirements. The following are the detailed technical parameters of the two models:
Parameter Item
KP30.61
KP30.73
Pump Type
External Gear Pump
External Gear Pump
Displacement
61.26 cm³/rev (3.74 in³/rev)
73.82 cm³/rev (4.50 in³/rev)
Maximum Continuous Pressure
180 bar (2610 psi)
170 bar (2465 psi)
Maximum Intermittent Pressure
200 bar (2900 psi)
190 bar (2755 psi)
Maximum Peak Pressure
220 bar (3190 psi)
210 bar (3045 psi)
Maximum Speed
2500 min⁻¹ (rpm)
2500 min⁻¹ (rpm)
Minimum Speed
350 min⁻¹ (rpm)
350 min⁻¹ (rpm)
Rotation Direction
Clockwise (CW) as standard; reversible optional
Clockwise (CW) as standard; reversible optional
Shaft Type
Tapered shaft 1:8 with keyway (4.0 mm key width typical)
Tapered shaft 1:8 with keyway
Mounting Flange
European standard (E4 typical), 4 mounting holes
European standard (E4 typical), 4 mounting holes
Housing Material
Cast iron
Cast iron
Fluid Requirement
Mineral oil-based hydraulic fluids (ISO/DIN) or fire-resistant fluids; viscosity range 12-100 mm²/s (cst)
Mineral oil-based hydraulic fluids (ISO/DIN) or fire-resistant fluids; viscosity range 12-100 mm²/s (cst)
Contamination Class
ISO 4406:1999 Class 19/17/14
ISO 4406:1999 Class 19/17/14
Inlet Pressure Range
0.7-3 bar (abs.) (10-44 psi); max continuous inlet pressure 5 bar (73 psi)
0.7-3 bar (abs.) (10-44 psi); max continuous inlet pressure 5 bar (73 psi)
Approximate Weight
14.8 kg (typical)
Not specified; slightly higher than KP30.61

General Notes

  • All pressure values are for unidirectional pumps; for reversible pumps, the maximum pressures are 15% lower than the values listed above.
  • The pumps feature high volumetric efficiency (approx. 0.98) and hydro-mechanical efficiency (approx. 0.90), ensuring reliable performance under harsh operating conditions.
  • Mounting flanges, shafts and ports can be customized according to SAE, European or ISO standards to meet specific application needs.
  • It is recommended to use CASAPPA original filters (e.g., IKRON) to maintain the required contamination class and extend pump service life.

Casappa KP series gear pump:

KP20 series KP20.11.2 KP20.14 KP20.16 KP20.20 KP20.25 KP20.31.5 KP20.4 KP20.6.3 KP20.8
KP30 series KP30.27 KP30.34 KP30.38 KP30.43 KP30.51 KP30.56 KP30.61 KP30.73
KP35 series KP35.100 KP35.63 KP35.71 KP35.80 KP35.90
KP40 series KP40.100 KP40.109 KP40.121 KP40.133 KP40.151 KP40.160 KP40.180 KP40.63 KP40.73 KP40.87
