Parker F11 series hydraulic motor
Wechat: +86 13728707767
Whats app: +86 13728707767
E-mail: hyd-sales2009@outlook.com
Description

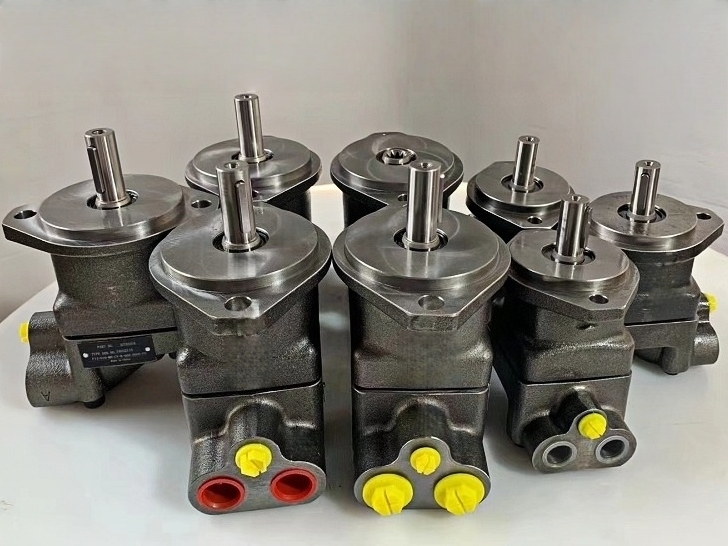

PARKER Hydraulic Motor F11 Series Product Introduction
The PARKER F11 series is a range of high-performance bent-axis fixed displacement hydraulic motors, engineered for rugged reliability and versatile operation across both open and closed-loop circuits. Designed with advanced hydraulic technology, this small-frame series delivers exceptional performance in demanding industrial and mobile applications, combining high pressure tolerance, impressive speed capabilities, and compact construction.
Core Design & Performance Advantages
At the heart of the F11 series lies a unique spherical piston design, which endows the motor with excellent thermal shock resistance and low internal leakage. The 40° bent-axis configuration between the shaft and cylinder barrel achieves an optimal power-to-weight ratio, resulting in a compact, lightweight motor (max weight 11 kg / 24.2 lb) that fits space-constrained installations without compromising performance.
Equipped with proven gear synchronization and double tapered bearing technology, the F11 series boasts remarkable robustness and durability. Laminated piston rings further enhance overall efficiency by minimizing internal leakage, while the precision-engineered valve plates ensure smooth operation with low noise levels (max 80 dBA), meeting strict industry noise emission standards.
Key Technical Specifications
|
Specification
|
Value
|
|---|---|
|
Displacement Range
|
5 – 19 cm³/rev (0.305 – 1.16 in³/rev)
|
|
Maximum Intermittent Pressure
|
420 bar (6,090 psi)
|
|
Continuous Operating Pressure
|
350 bar (5,075 psi)
|
|
Maximum Operating Speed
|
Up to 14,000 rpm (varies by displacement)
|
|
Fluid Temperature Range
|
-40 °F to 239 °F (-40 °C to 115 °C)
|
|
Radial Load Capacity
|
400 kg (880 lb)
|
|
Mounting & Connections
|
SAE, ISO, CETOP flanges; SAE, ISO, BSPP straight-threaded rear ports
|
|
Body Material
|
Cast Iron
|
Product Models
The F11 series offers a comprehensive range of models to suit diverse application needs, including: F11-005 (4.9 cm³/rev), F11-006 (6 cm³/rev), F11-010 (9.8 cm³/rev), F11-012 (12.5 cm³/rev), F11-014 (14.3 cm³/rev), and F11-019 (19 cm³/rev). Each model maintains consistent durability and efficiency, with tailored performance parameters to match specific flow and torque requirements.
Applications & Markets
Thanks to its versatile design and rugged performance, the F11 series is widely adopted across multiple industries, including:
-
Industrial Machinery: Material handling equipment, automated production lines
-
Natural Resources: Mining, oil & gas exploration equipment
-
Agriculture & Forestry: Farm machinery, forestry harvesters
-
Construction: Compact construction equipment and tools
-
Energy & Transportation: Renewable energy systems, non-aerospace transportation
Why Choose the F11 Series?
The F11 series stands out for its high overall efficiency, which reduces fuel consumption and greenhouse gas emissions. Its simple construction with minimal moving parts lowers maintenance requirements, ensuring long service life and outstanding uptime even in harsh operating environments. Rigorous product testing and continuous development guarantee optimal performance, making it a trusted choice for critical hydraulic systems worldwide.
