F12 series hydraulic motor
F12-030 (30cc/rpm)、F12-040 (40cc/rpm)、F12-060 (60cc/rpm)、F12-080 (80cc/rpm)、F12-090 (90cc/rpm)、F12-110 (110cc/rpm)、F12-125 (125cc/rpm)、F12-152 (152cc/rpm)、F12-162 (162cc/rpm)、F12-182 (182cc/rpm)、F12-250 (250cc/rpm, maximum displacement model)

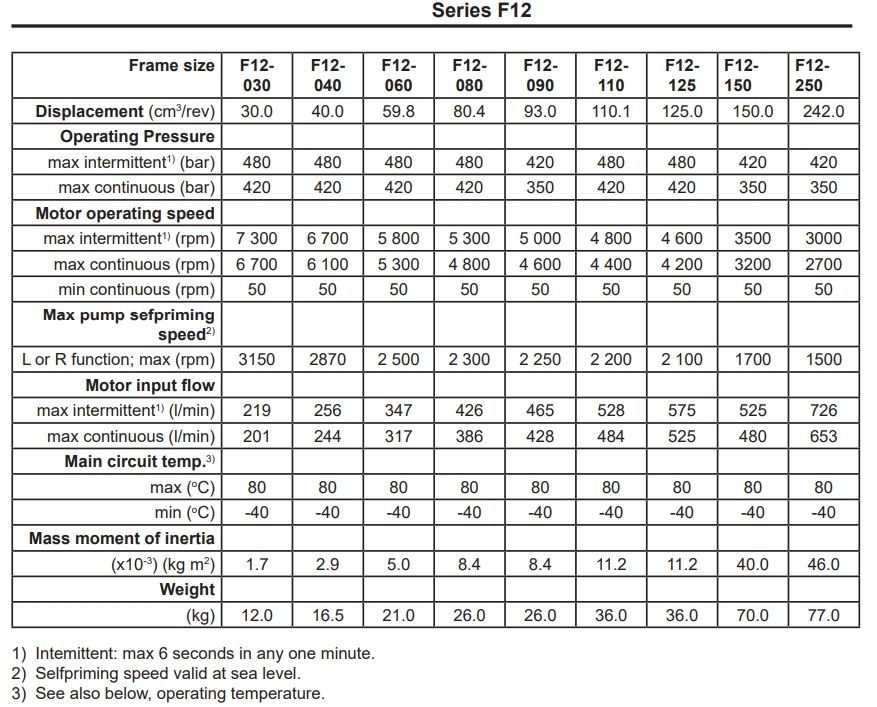

Parker hydraulic motor F12 series specifications and models detailed1. Core specifications
Displacement range
The F12 series offers a variety of displacement specifications from 5cc to 250cc. Common models include：
F12-030 (30cc/rpm)、 F12-040 (40cc/rpm)、 F12-060 (60cc/rpm)、 F12-080 (80cc/rpm)
F12-090 (90cc/rpm)、 F12-110 (110cc/rpm)、 F12-125 (125cc/rpm)、 F12-152 (152cc/rpm)
F12-162 (162cc/rpm)、 F12-182 (182cc/rpm)、 F12-250 (250cc/rpm, maximum displacement model)
Pressure and speed
Rated pressure: up to 420bar (some models can reach 480bar), which is suitable for high load conditions.
Peak pressure: It can withstand higher pressure in the short term, please refer to the model manual for details.
Maximum speed: Some models (such as F12-080) can reach 3150rpm to meet the needs of high-speed rotation.
Temperature range
Oil temperature: The standard model is suitable for -40℃ to +115℃ (fluorine rubber shaft seal model).
Ambient temperature: The low temperature or high temperature resistant model needs to be selected according to the specific working conditions.
Installation form
Support a variety of international standard installation interfaces such as CETOP, ISO, SAE and SAW to facilitate integration with existing systems..
2. Model naming rules
Parker F12 series models usually consist of the following parts (with F12-080-MF-IV-D-000-0000- P0 as an example)：
F12: The series logo represents the curved shaft quantitative motor.
080: Displacement specification (80cc/rpm).
MF: Design type (for example, MF is a standard design, MS is a special application design).
IV: Installation form (for example, IV is ISO flange installation).
D: The type of shaft end (for example, D is the SAE spline shaft).
000-0000: Configuration options (such as sealing materials, sensor interfaces, etc.).
P0: Version identification (standard version or special customized version).
Complete products, original authentic products, fast delivery!Welcome to consult.
Process steps：
Customer inquiry: Customers will make inquiries before placing an order to understand product details and communication needs.
Quotation: According to customer needs, provide a formal quotation, including the name, model, quantity, delivery time, payment method, etc. of the goods.
Order confirmation: After the customer confirms the quotation, a formal purchase order will be placed.
Confirm the delivery time: communicate the delivery time with the production department, inform the factory of the order details, and arrange the production plan.
Sign an export contract: After the two parties confirm that it is correct, sign an export contract to establish a trade relationship.
Implement the letter of credit (if applicable): If the payment method of the letter of credit is used, the customer needs to be urged to issue the certificate and review the contents of the letter of credit.
Export stocking: According to the requirements of the contract and the letter of credit, arrange production, purchase raw materials and packaging, and prepare the goods.
Chartering and booking: Contact the freight forwarder to make a booking and arrange the transportation of goods.
Export inspection: Apply to the quality inspection department for export commodity inspection and provide relevant documents.
Apply for a write-off slip: apply for a write-off slip from the foreign exchange management department for subsequent foreign exchange write-off.
Export declaration: Declare exports to the customs and provide documents such as power of attorney for customs declaration, customs declaration form for export goods, commercial invoice, packing list, etc.
