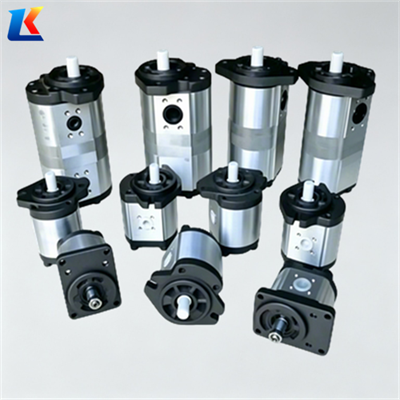

Parker Gear Pump Series Catalog
Parker gear pumps are world-renowned for high efficiency, low noise, compact structure and reliable heavy-duty performance.
| Contact us |
| Whats app: +86 13728707767 |
| E-mail: hyd-sales2009@outlook.com |
1. External Gear Pumps (Main Series)
1.1 GP Series (Light-Duty Compact Type)
|
Series
|
Type
|
Displacement Range
|
Max Pressure
|
Max Speed
|
Key Features
|
|
GP Standard
|
Compact Light-duty
|
1.0-45.0 cm³/rev
|
210 bar (continuous) 240 bar (intermittent)
|
4,000 rpm
|
Die-cast aluminum housing, lightweight, cost-effective, stable operation, suitable for general light industrial equipment
|
|
GP*AN
|
Low-noise Enhanced
|
1.2-42.0 cm³/rev
|
210 bar (continuous) 240 bar (intermittent)
|
4,200 rpm
|
Optimized helical gear design, lower pulsation and noise, excellent volumetric efficiency
|
1.2 PX Series (High-Pressure Low-Noise Type)
|
Series
|
Type
|
Displacement Range
|
Max Pressure
|
Max Speed
|
Key Features
|
|
P3X/P5X
|
Small & Medium Frame
|
0.8-25.0 cm³/rev
|
276 bar (continuous) 310 bar (intermittent)
|
4,500 rpm
|
Bushing unit structure, high pressure resistance, ultra-low noise, precise gap compensation
|
|
P11X/P17X
|
Large Frame
|
25.0-52.0 cm³/rev
|
276 bar (continuous) 310 bar (intermittent)
|
3,800 rpm
|
Reinforced bearing design, strong overload capacity, suitable for precision hydraulic systems
|
1.3 PGP Series (Heavy-Duty High-Pressure Type)
|
Series
|
Type
|
Displacement Range
|
Max Pressure
|
Max Speed
|
Key Features
|
|
PGP300/315
|
Medium Pressure Standard
|
7.6-40.6 cm³/rev
|
241 bar (continuous) 275 bar (intermittent)
|
3,000 rpm
|
Cast iron housing, wear-resistant thrust plate, stable performance for long-cycle operation
|
|
PGP500/502
|
High-Pressure Enhanced
|
0.8-60.0 cm³/rev
|
260 bar (continuous) 290 bar (intermittent)
|
3,200 rpm
|
Multi-pump combination support, high volumetric efficiency, suitable for mobile machinery
|
|
PGP600
|
Ultra-High Pressure Heavy-Duty
|
40.0-87.6 cm³/rev
|
275 bar (continuous) 310 bar (intermittent)
|
2,800 rpm
|
Ductile iron housing, super load resistance, exclusive for heavy industry and port machinery
|
2. Internal Gear Pumps (IGP Series)
2.1 IGP Standard Series
|
Series
|
Frame Size
|
Displacement Range
|
Max Pressure
|
Max Speed
|
Key Features
|
|
IGP1/IGP2
|
Small & Medium
|
2.5-50.0 cm³/rev
|
250 bar (continuous) 280 bar (intermittent)
|
4,000 rpm
|
Low flow pulsation, mute operation, high efficiency for precision machine tool hydraulic systems
|
|
IGP3/IGP4
|
Medium & Large
|
50.0-200.0 cm³/rev
|
280 bar (continuous) 300 bar (intermittent)
|
3,200 rpm
|
Large flow output, pressure self-compensation, stable operation under full load for a long time
|
3. Key Technical Parameters Overview
|
Parameter
|
External Gear Pumps
|
Internal Gear Pumps
|
|
Displacement Range
|
0.8-87.6 cm³/rev
|
2.5-200.0 cm³/rev
|
|
Max Continuous Pressure
|
Up to 276 bar
|
Up to 280 bar
|
|
Max Intermittent Pressure
|
Up to 310 bar
|
Up to 300 bar
|
|
Max Speed
|
Up to 4,500 rpm
|
Up to 4,000 rpm
|
|
Noise Level
|
Standard (62-72 dB) Low-noise version (58-65 dB)
|
52-60 dB (ultra-low noise)
|
|
Housing Material
|
Aluminum alloy (light series) Cast iron/ductile iron (heavy-duty series)
|
High-strength cast iron (all series)
|
|
Fluid Compatibility
|
Mineral oil, synthetic hydraulic fluid, biodegradable fluid
|
Mineral oil, synthetic hydraulic fluid, low-viscosity lubricating fluid
|
|
Temperature Range
|
-20°C to +85°C (standard) -40°C to +110°C (special seals)
|
-20°C to +90°C (standard) -35°C to +115°C (high-temperature resistant seals)
|
4. Model Code Explanation (Example: PGP502A0008AV1P1NB)
|
Code Segment
|
Meaning
|
|
PGP502
|
Series: PGP502 high-pressure external gear pump
|
|
A
|
Structure type: Standard single pump structure
|
|
0008
|
Displacement: 0.8 cm³/rev
|
|
AV1
|
Shaft & flange type: Standard SAE shaft and flange
|
|
P1
|
Port type: SAE standard O-ring port
|
|
NB
|
Seal & configuration: NBR seal, no auxiliary valve
|
5. Application Areas
-
Mobile Construction Machinery: Excavators, loaders, cranes, road construction equipment
-
Agricultural Machinery: Tractors, harvesters, agricultural hydraulic operating systems
-
General Industrial Machinery: Machine tools, injection molding machines, pressing equipment, conveyor systems
-
Material Handling Equipment: Forklifts, stackers, port handling machinery
-
Special Industrial Scenarios: Marine hydraulic systems, metallurgical equipment, mining machinery
-
Precision Hydraulic Systems: Automation equipment, precision testing machines, low-noise production lines
