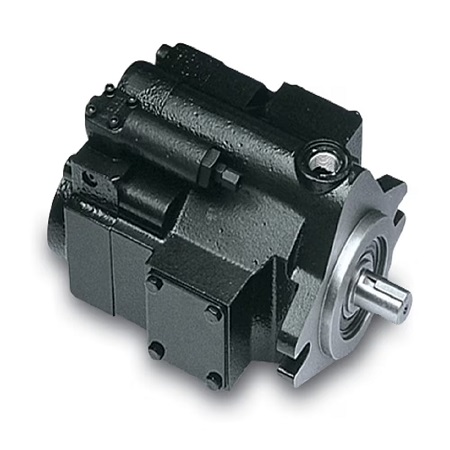

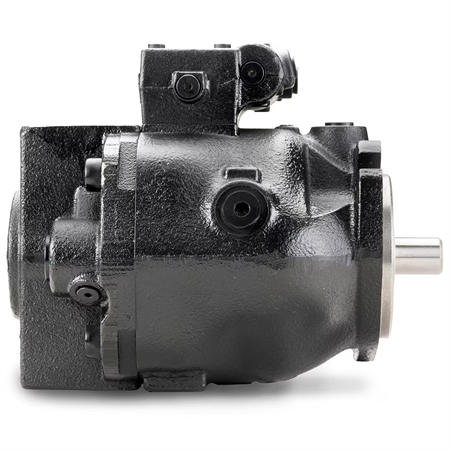

Parker PAVC Series Piston Pump: Specifications & Applications
1. Product Overview
2. Technical Specifications

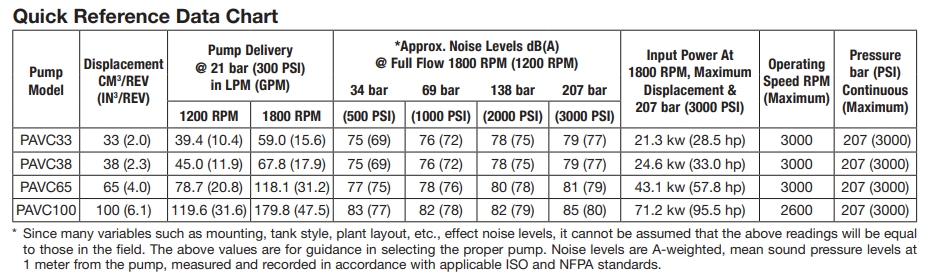

2.1 Key Performance Parameters
|
Model
|
Displacement
|
Flow Rate
|
Input Power (1800 rpm)
|
Max Operating Speed
|
Pressure Rating
|
Noise Level (dB(A))
|
|---|---|---|---|---|---|---|
|
PAVC33
|
33 cm³/rev (2.0 in³/rev)
|
39.4 LPM (10.4 GPM) @ 1200 rpm; 59.0 LPM (15.6 GPM) @ 1800 rpm
|
21.3 kW (28.5 HP)
|
3000 rpm
|
207 bar (3000 psi) continuous
|
75-79 dB(A) (varies by pressure)
|
|
PAVC38
|
38 cm³/rev (2.3 in³/rev)
|
45.0 LPM (11.9 GPM) @ 1200 rpm; 67.8 LPM (17.9 GPM) @ 1800 rpm
|
24.6 kW (33.0 HP)
|
3000 rpm
|
207 bar (3000 psi) continuous
|
75-79 dB(A) (varies by pressure)
|
|
PAVC65
|
65 cm³/rev (4.0 in³/rev)
|
78.7 LPM (20.8 GPM) @ 1200 rpm; 118.1 LPM (31.2 GPM) @ 1800 rpm
|
43.1 kW (57.8 HP)
|
3000 rpm
|
207 bar (3000 psi) continuous
|
77-81 dB(A) (varies by pressure)
|
|
PAVC100
|
100 cm³/rev (6.1 in³/rev)
|
119.6 LPM (31.6 GPM) @ 1200 rpm; 179.8 LPM (47.5 GPM) @ 1800 rpm
|
71.2 kW (95.5 HP)
|
2600 rpm
|
207 bar (3000 psi) continuous
|
82-85 dB(A) (varies by pressure)
|
2.2 General Specifications
-
Housing Material: High-strength cast iron for durability and vibration resistance
-
Control Drain Pressure: Maximum 7 bar (100 psi) for filter/cooling circuits
-
Inlet Pressure: Maximum 1.72 bar (25 psi); Minimum 0.17 bar (5 in. Hg)
-
Fluid Compatibility: Compatible with anti-wear hydraulic oil; Full pressure rating for most water-glycol fluids
-
Filtration Requirement: SAE Class 4, ISO 16/13, ISO 18/15 (maximum recommended)
-
Mounting Options: SAE B 2-bolt or diagonal SAE B 4-bolt flange mount
-
Efficiency: Volumetric efficiency 85%-95%; Mechanical efficiency 80%-90%
3. Core Features
-
Built-in Intensifier: Enables high-speed operation up to 3000 rpm (2600 rpm for PAVC100), enhancing efficiency and productivity.
-
Two-piece Design: Facilitates easy disassembly and maintenance, reducing downtime and operational costs.
-
Field-replaceable Cartridge Controller: Allows quick on-site maintenance without full pump disassembly; replaceable bronze-clad port plate extends service life.
-
Sealed Bearings & Hydrodynamic Cylinder Barrel Bearing: Improves reliability, extends service life, and minimizes maintenance needs while ensuring smooth operation under varying loads.
-
Through-shaft Option: Available for PAVC100 model, providing additional flexibility for multi-component system integration.
-
Standard Vent Feature: Ensures quick startup and optimized operating efficiency by eliminating air locks.
-
Versatile Control Modes: Supports pressure compensation, load sensing, power/torque limiting, electro-hydraulic flow/pressure control, and low-pressure standby mode for precise system tuning.
4. Applications
4.1 Construction Machinery
4.2 Machine Tools & Precision Machinery
4.3 Metallurgy & Plastic Machinery
4.4 Mining & Tunnel Engineering
4.5 Other Industries
-
Petrochemical: Transports high-pressure, high-viscosity fluids such as crude oil and chemical raw materials in refineries and chemical plants.
-
Paper & Environmental Protection: Meets requirements for continuous constant-pressure/constant-flow fluid delivery in papermaking machines, biochemistry, and pharmaceutical equipment.
-
Shipbuilding: Powers steering systems, anchor winches, and other marine hydraulic components, ensuring stable operation in marine environments.
-
Agricultural Machinery: Supports hydraulic systems in tractors, harvesters, and farm equipment for tool lifting and flipping operations.
5. Notes
