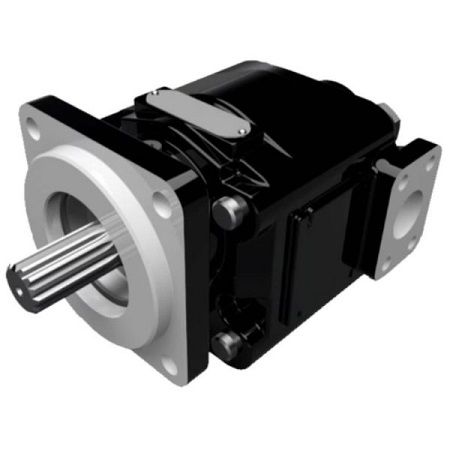

1. Product Overview

2. Core Features

• Tri-Piece Cast Iron Construction: Offers exceptional structural strength and distribution flexibility, ensuring long service life even in harsh environments. The cast iron housing provides excellent resistance to wear, impact, and corrosion.
• Balanced Thrust Plates: Minimize internal friction and fluid leakage, enhancing volumetric efficiency (up to 98%) and reducing energy loss during operation.
• Integrated Journal Bearing Lubrication: Internal fluid channels continuously lubricate bushings, extending bearing life and improving overall reliability under high-pressure conditions.
• Flexible Configurations: Available in single, multiple (up to 6 sections), piggyback, and through-shaft drive configurations. Supports various mounting, shaft, and port options to meet diverse system requirements.
• Wide Fluid Compatibility: Suitable for mineral oil and fire-resistant fluids, including water-oil emulsions (HFB), water-glycol (HFC), and phosphate esters (HFD), expanding application scope in fire-sensitive environments.
• Integrated Valve Capabilities: Optional integrated valves such as load-sensing flow controls, anti-cavitation checks, solenoid unloading relief valves, and priority flow controls, reducing system complexity and potential leak points.

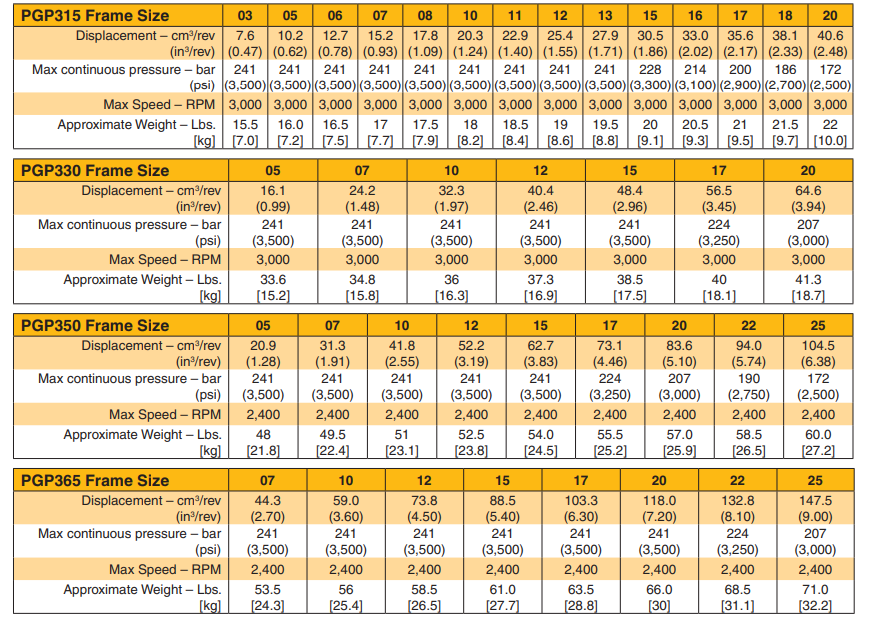

3. Technical Specifications

3.1 Basic Parameters

• Displacement Range: 1.28 – 6.38 in³/rev (21 – 105 cm³/rev)
• Maximum Operating Pressure: 3500 psi (241 bar) continuous
• Speed Range: 400 – 3000 rpm (optimal operating range)
• Flow Rate: Up to 66 Gpm (250 Lpm) per section
• Operating Temperature Range: 0 – 180 °F (0 – 82 °C) with standard NBR seals; 0 – 150 °F (0 – 66 °C) with FPM (FKM) seals

3.2 Fluid & Filtration Requirements

• Fluid Type: Mineral oil, HFB (60/40 water-oil emulsion), HFC (water-glycol), HFD (phosphate esters)
• Filtration Efficiency: ISO 4406 Class 19/16 at 2000 psi (140 bar); 17/14 at 3000 psi (210 bar); 15/12 at 4000 psi (275 bar)
• Maximum Inlet Pressure: 15 psig
• Maximum Continuous Vacuum: 130 mm Hg (5 inch Hg) at operating temperature

3.3 Mechanical Specifications

• Body Material: Cast iron with cast iron bushings
• Shaft Type: SAE splined (13T, 14T, 15T) or keyed; options include SAE B ⅞”, SAE BB 1”, SAE C 1¼”
• Mounting Type: SAE B (2-bolt, 4-bolt), SAE C (2-bolt, 4-bolt) including “ZF” style
• Port Connections: BSPP, metric split flange, SAE straight thread, split flange (side or rear port positions)
• Radial Load Capacity: 1125 lb with outboard bearings
• Weight: 51 lb (23.1 kg) with 1” gear; add 1 lb (0.45 kg) for each additional ¼” gear width

4. Typical Applications

• Construction machinery (excavators, loaders, backhoes)
• Forestry equipment (harvesters, skidders)
• Oil & gas field equipment
• Material handling (forklifts, aerial lifts)
• Agricultural machinery
• Mobile trailers (live floor trailers, roll-off trailers, salt/sand spreaders)
• Lawn care equipment

5. Key Advantages
