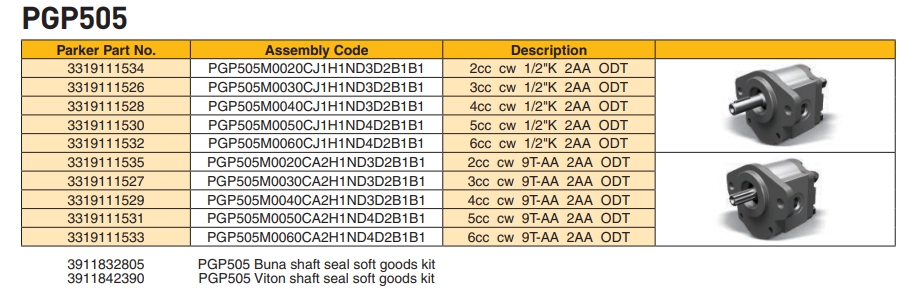

Parker PGP505 Series gear pumps
Wechat: +86 13728707767
Whats app: +86 13728707767
E-mail: hyd-sales2009@outlook.com
1. Product Overview
2. Key Technical Parameters
|
Description Code
|
Displacement
|
Continuous Pressure
|
Intermittent Pressure
|
Min. Speed @ Max. Outlet Pressure (rpm)
|
Max. Speed @ 0 Inlet & Max. Outlet Pressure (rpm)
|
Pump Input Power @ Max. Pressure & 1500 rpm
|
Dimension “L”
|
Approximate Weight¹
|
|---|---|---|---|---|---|---|---|---|
|
0020
|
2 cm³/rev (0.12 in³/rev)
|
275 bar (3988 psi)
|
300 bar (4350 psi)
|
500
|
4000
|
2 kW (2.68 hp)
|
38.4 mm (1.51 in)
|
1.72 kg (3.8 lb)
|
|
0030
|
3 cm³/rev (0.18 in³/rev)
|
275 bar (3988 psi)
|
300 bar (4350 psi)
|
500
|
4000
|
2.3 kW (3.08 hp)
|
41.1 mm (1.62 in)
|
2.22 kg (4.91 lb)
|
|
0040
|
4 cm³/rev (0.24 in³/rev)
|
275 bar (3988 psi)
|
300 bar (4350 psi)
|
500
|
4000
|
3 kW (4.02 hp)
|
43.8 mm (1.72 in)
|
2.27 kg (5.02 lb)
|
|
0050
|
5 cm³/rev (0.31 in³/rev)
|
275 bar (3988 psi)
|
300 bar (4350 psi)
|
500
|
4000
|
3.8 kW (5.1 hp)
|
46.5 mm (1.83 in)
|
2.32 kg (5.13 lb)
|
|
0060
|
6 cm³/rev (0.37 in³/rev)
|
275 bar (3988 psi)
|
300 bar (4350 psi)
|
500
|
3600
|
4.5 kW (6.03 hp)
|
49.1 mm (1.93 in)
|
2.38 kg (5.26 lb)
|
|
0070
|
7 cm³/rev (0.43 in³/rev)
|
275 bar (3988 psi)
|
300 bar (4350 psi)
|
500
|
3300
|
5.3 kW (7.11 hp)
|
51.8 mm (2.04 in)
|
2.43 kg (5.37 lb)
|
|
0080
|
8 cm³/rev (0.49 in³/rev)
|
275 bar (3988 psi)
|
300 bar (4350 psi)
|
500
|
3000
|
6 kW (8.05 hp)
|
54.5 mm (2.15 in)
|
2.48 kg (5.48 lb)
|
|
0090
|
9 cm³/rev (0.55 in³/rev)
|
250 bar (3625 psi)
|
275 bar (3988 psi)
|
500
|
2900
|
6.5 kW (8.72 hp)
|
57.0 mm (2.24 in)
|
2.53 kg (5.59 lb)
|
|
0100
|
10 cm³/rev (0.61 in³/rev)
|
250 bar (3625 psi)
|
275 bar (3988 psi)
|
500
|
2800
|
6.9 kW (9.25 hp)
|
59.8 mm (2.35 in)
|
2.58 kg (5.7 lb)
|
|
0110
|
11 cm³/rev (0.67 in³/rev)
|
250 bar (3625 psi)
|
275 bar (3988 psi)
|
500
|
2400
|
7.6 kW (10.19 hp)
|
62.5 mm (2.46 in)
|
2.63 kg (5.81 lb)
|
|
0120
|
12 cm³/rev (0.73 in³/rev)
|
220 bar (3190 psi)
|
220 bar (3190 psi)
|
500
|
2400
|
8.4 kW (11.26 hp)
|
65.2 mm (2.57 in)
|
2.68 kg (5.92 lb)
|
3. Design Features & Options
-
Construction: Lightweight three-piece aluminum construction with 13-tooth gear profile, pressure-balanced thrust blocks, and durable journal bushings for long service life.
-
Rotation: Available in clockwise (CW), counter-clockwise (CCW), and bi-rotational configurations.
-
Mounting & Porting: SAE shafts, flanges, and porting options (SAE, rectangular, thru-bolt) for flexible installation.
-
Integral Valves: Wide range of valve options including pressure relief, anti-cavitation, cross port relief, solenoid unloading, proportional relief, and reversing valves.
-
Fluid Compatibility: Suitable for mineral oils, fire-resistant fluids (water-oil emulsion 60/40, HFB-/HFC-phosphate esters, HFD).
-
Operating Conditions: Fluid temperature range of -15°C to 80°C; operating viscosity range of 8 to 100 mm²/s; filtration requirement up to ISO 4406 Class 16/13.
