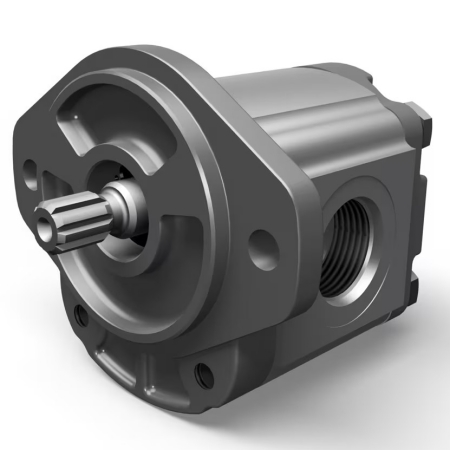

Parker PGP511 Series gear pump
Wechat: +86 13728707767
Whats app: +86 13728707767
E-mail: hyd-sales2009@outlook.com
1. General Information
-
Pump Type: Fixed displacement gear pump
-
Design Feature: Advanced international “floating bushing” design; pressure-balanced bearing housing for maximum efficiency
-
Body Material: Aluminum alloy
-
Brand Availability: Also marketed under Tyrone, Commercial, and Ultra brands
2. Performance Parameters
|
Parameter
|
Value Range
|
|---|---|
|
Maximum Operating Pressure
|
Up to 250 bar (3,625 psi); continuous working pressure up to 275 bar (4,000 psi) for some models
|
|
Displacement
|
4 cm³/rev – 33 cm³/rev (0.24 in³/rev – 2.01 in³/rev); PGP511H sub-series: 10.1 cm³/rev – 28.3 cm³/rev (0.62 in³/rev – 1.73 in³/rev)
|
|
Speed Range
|
Minimum: 500 rpm; Maximum: 2,500 rpm – 4,000 rpm (PGP511H: up to 3,000 rpm)
|
|
Noise Level
|
PGP511H sub-series: Maximum 63 dB @ 2,950 rpm (low-noise spiral gear design)
|
3. Physical Parameters
-
Dimensions: 130.7 mm × 89.5 mm × 114 mm (length × width × height) for standard models
-
Weight: Maximum 4.6 kg (10.1 lb)
-
Shaft Type: SAE, ISO, DIN, or industry-specific; tapered shaft (1:8) available; SAE “A” spline (9-tooth, 16/32 DP, 31.8L) optional
-
Mounting Options: SAE, ISO, DIN flanges
-
Port Connections: SAE, ISO, NPT, BSPP, ODT; port types: flange, straight thread; port positions: side, rear
4. Fluid Requirements
-
Fluid Type: Mineral oil (standard), phosphate ester, water-glycol
-
Temperature Range: -15 °C to 80 °C (5 °F to 176 °F); PGP511H sub-series: -40 °C to 70 °C (-40 °F to 158 °F)
-
Viscosity Range: 10 mm²/s – 300 mm²/s (50 SUS – 7,500 SUS); PGP511H sub-series: 15 mm²/s – 150 mm²/s
-
Sealing Material: NBR (Nitrile Rubber) as standard
5. Configuration & Options
-
Rotation Direction: Clockwise (CW), Counterclockwise (CCW), or bidirectional
-
Configurations: Single, tandem, or multiple pump assemblies
-
Integrated Valves (Optional): Anti-cavitation valve, relief valve, solenoid unload valve, proportional relief valve, cross-port relief valve, etc.
6. Typical Applications
7. Model Coding Example (Reference)
-
PG: Gear design; P: Pump category; 511: Series
-
A: Single pump (standard motor, no check valve)
-
0160: Displacement (16 cm³/rev)
-
C: Rotation direction (Clockwise)
-
A1: Shaft extension (SAE “A” spline)
-
H2: Flange (SAE “A” 2-bolt, 106.4 – Ø82.55 mm)
-
N: Seal material (NBR)
-
E5/E3: Port threads (3/4 – 14 BSP / 1/2 – 12 BSP)
-
B1/B1: No motor inlet/drain ports
Parker PGP511 gear pump
