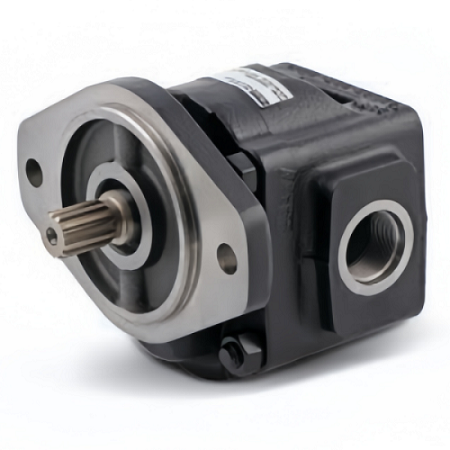

Parker PGP517 Series gear pumps
Wechat: +86 13728707767
Whats app: +86 13728707767
E-mail: hyd-sales2009@outlook.com
Basic Information
-
Pump Type: Fixed displacement gear pump
-
Housing Material: Aluminum alloy (standard); Cast iron (heavy-duty type)
-
Configuration Options: Single pump / Series pump / Multiple pump
-
Rotation Direction: Clockwise, Counterclockwise, Bidirectional rotation (orderable)
-
Max Weight: 4.6 kg (10.1 lbs)
Performance Parameters
|
Parameter
|
Value Range
|
|---|---|
|
Displacement
|
19.0 – 50.3 cm³/rev (1.16 – 3.07 in³/rev)
|
|
Maximum Operating Pressure
|
240 – 275 bar (3481 – 3988 psi); Continuous working pressure up to 275 bar (3988 psi)
|
|
Maximum Speed
|
3000 – 4000 RPM (depending on model)
|
|
Fluid Temperature Range
|
Minimum: -40 °C (-40 °F); Maximum: 70 – 80 °C (158 – 176 °F)
|
|
Fluid Viscosity Range
|
Minimum: 15 – 50 CST (SUS); Maximum: 150 – 7500 CST (SUS)
|
|
Maximum Noise Level
|
63 dBA @ 2950 RPM (for silent type)
|
Structural & Installation Parameters
-
Shaft Type: SAE, ISO, DIN standards; Splined shaft, flat key shaft, tapered shaft (orderable)
-
Mounting Flange: SAE “B” 2-bolt flange (146.1 – 101.06 mm); ISO, DIN standards available
-
Port Connections: SAE, ISO, NPT, BSPP, ODT; Flange, straight thread types
-
Port Location: Side ports, rear ports
-
Shaft Seal Material: Nitrile rubber (standard); Customizable
Fluid Compatibility
Key Features & Advantages
-
Compact and lightweight design with high power density.
-
Pressure-balanced floating bushing reduces wear and leakage, ensuring high efficiency.
-
Advanced gear design for low noise operation (63 dBA at rated speed for silent models).
-
High strength materials and large journal diameter lower bearing load under high pressure.
-
Insensitive to oil contamination, easy maintenance, and reliable operation.
-
Optional integrated control valves (safety valve, load-sensing valve, priority valve, unloading valve).
Application Fields

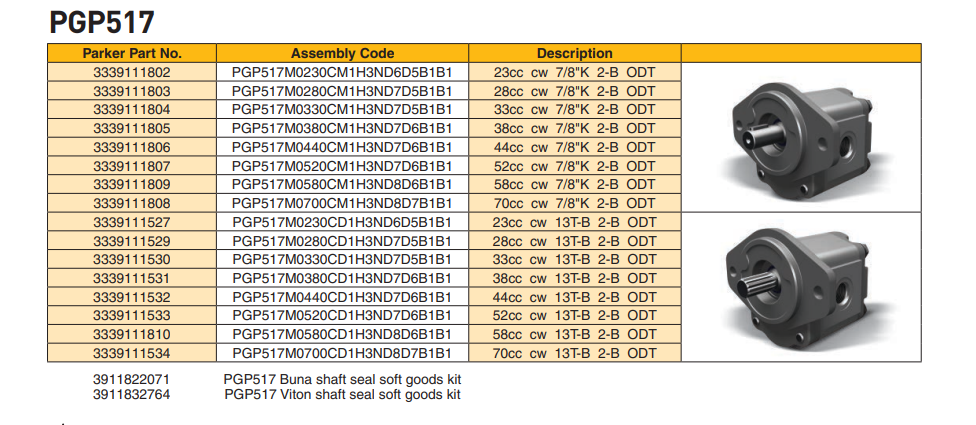

Model Coding Interpretation (Example: PGP517B0280AE1H3NP4P3)
-
PG: Gear type
-
P: Pump (M = Motor)
-
517: Fixed model number
-
B: Product type (multiple pump; standard motor with 2 check valves)
-
0280: Displacement specification
-
A: Rotation direction (counterclockwise)
-
E1: Shaft extension type
-
H3: Mounting flange (SAE “B” 2-bolt flange, 146.1 – 101.06 mm)
-
N: Shaft seal material (nitrile rubber)
-
P4P3: Inlet/outlet size (1 1/4″-M10 SAE metric flange / 1″-M10 SAE metric flange, applicable for 25-38 ccm displacement)
Parker gear pump
Complete products, original authentic products, fast delivery!Welcome to consult.
