Specifications of Vickers Hydraulic Piston Pump PVB90-FLD-20-CMC-11
1. Model Code Breakdown
|
Code Segment
|
Detailed Meaning
|
|
PVB
|
Variable displacement axial piston pump (inline design), compliant with SAE standards, featuring high volumetric and mechanical efficiency and strong adaptability to heavy-duty working conditions.
|
|
90
|
Nominal displacement size: 197.50 cm³/rev (12.0 in³/rev), corresponding to the standard displacement of PVB90 series large-displacement pumps.
|
|
F
|
Flanged main ports: Special design for PVB45 and PVB90 series pumps, enhancing the stability of fluid inlet and outlet.
|
|
L
|
Control type: Load sensing compensator, which can automatically adjust pump delivery to match system flow demand, improving energy efficiency.
|
|
D
|
Stroke direction: Double side of center, specifically designed for handwheel or lever control models of PVB series pumps.
|
|
20
|
Pump design code: Applicable to all PVB series models including PVB90, matching the standard design of flanged main ports, load sensing and double side of center configurations.
|
|
CMC
|
Control operation type: Pressure compensator with adjustable max displacement stop, pressure adjustment range of 19 to 210 bar (275 to 3000 psi), allowing max pump delivery adjustment between 25% to 100%.
|
|
11
|
Control design number: Suitable for C and CM series control types (including CMC) of PVB series pumps, matching the standard control configuration for FLD models.
|

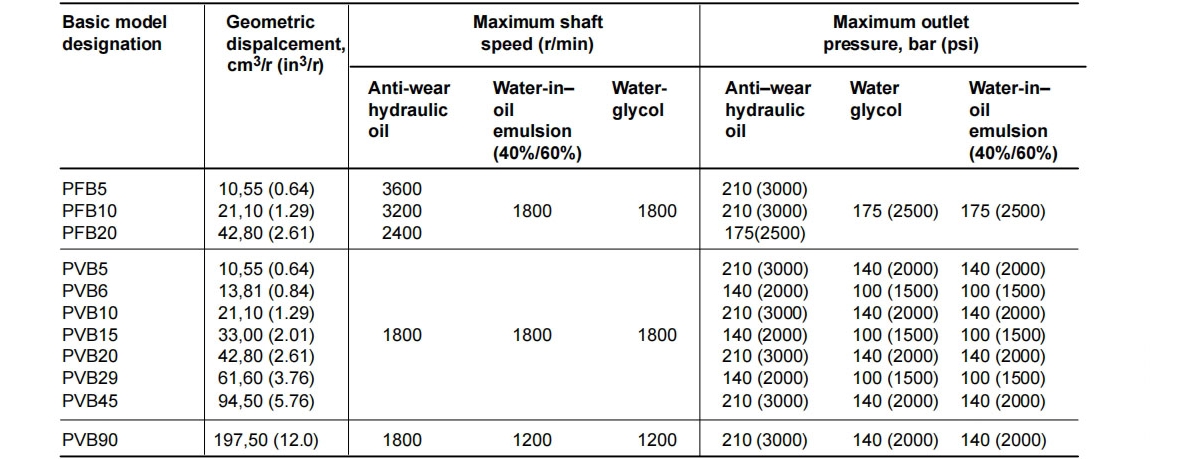

2. Core Technical Specifications
|
Parameter
|
Value
|
Remarks
|
|
Displacement
|
197.50 cm³/rev (12.0 in³/rev)
|
Theoretical displacement, without efficiency and tolerance considerations; corresponding to 90 gpm @ 1800 rpm.
|
|
Maximum Operating Pressure
|
210 bar (3000 psi)
|
Using anti-wear hydraulic oil; 140 bar (2000 psi) when using water-glycol or 40-60 oil-in-water emulsion.
|
|
Maximum Shaft Speed
|
1800 r/min
|
Continuous operating speed (with anti-wear hydraulic oil); 1200 r/min when using water-glycol or oil-in-water emulsion; maximum intermittent speed can reach 3600 r/min.
|
|
Mounting Type
|
SAE flange
|
Standard flange mounting for easy installation in heavy-duty hydraulic systems; compatible with SAE standards, equipped with flanged main ports for stable fluid flow.
|
|
Control Type
|
Flanged main ports + load sensing compensator + double side of center + pressure compensator with adjustable max displacement stop (CMC)
|
Automatically adjusts pump displacement according to system pressure and flow demand; adjustable max displacement stop enhances operational flexibility.
|
|
Approximate Weight
|
104 kg (230 lb)
|
Reference weight for PVB90 series pumps (flange mounting); actual weight may vary slightly by configuration.
|
|
Fluid Requirement
|
Anti-wear hydraulic oil, water-glycol, 40-60 oil-in-water emulsion
|
Fluid cleanliness should meet ISO 18/14 standard; recommended oil viscosity is 21 cSt (102 SUS) at 50°C (120°F); full-flow filtration is recommended for longer service life.
|
|
Application Scope
|
Large-scale mining machinery, heavy-duty injection molding machines, large metal forming equipment, oil and gas drilling equipment, heavy industrial hydraulic power units, etc.
|
Suitable for harsh and heavy-duty industrial operating environments, with high reliability, long service life and excellent load adaptability.
|
3. Supplementary Notes
-
All parameters are theoretical values, and actual performance may vary slightly due to installation conditions, fluid quality and ambient temperature.
-
Do not exceed the maximum pressure and speed limits during operation; for PVB90 series, the maximum pressure must not exceed 210 bar (3000 psi) when using anti-wear hydraulic oil to ensure the service life of the pump.
-
The pump is compatible with a variety of hydraulic fluids, and the operating pressure and shaft speed should be adjusted according to the selected fluid type to avoid component damage; pay attention to the maintenance of load sensing compensator, pressure compensator (CMC) and flanged main ports.
-
For detailed installation and maintenance guidelines, refer to the official Eaton Vickers technical manual (Document No.: i3295s) or the PVB90 series dedicated datasheet.
