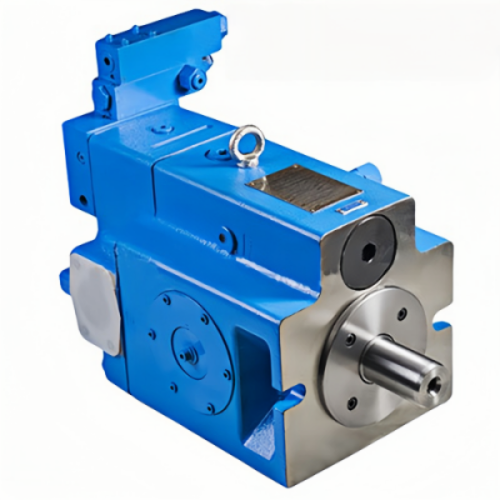

PVXS series vickers piston pump
Whats app: +86 13728707767
E-mail: hyd-sales2009@outlook.com
We are a professional manufacturer of hydraulic pumps, offering a complete range of products. Inquiries are welcome! (#^.^#)
Specifications and Applications of Vickers PVXS Series Variable Displacement Piston Pumps

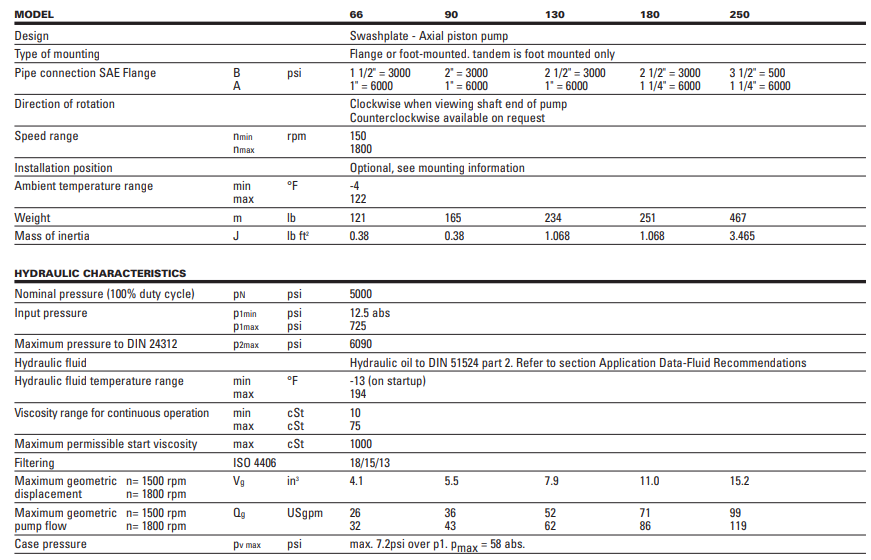

1. Technical Specifications
1.1 Core Parameters
|
Model
|
Max Displacement
|
Max Flow Rate @ 1800 rpm
|
Rated Pressure
|
Max Pressure
|
Rated Speed
|
Weight (kg)
|
|---|---|---|---|---|---|---|
|
PVXS-066
|
66 cm³/rev (4.1 in³/rev)
|
118 L/min (32 USgpm)
|
350 bar (5075 psi)
|
420 bar (6090 psi)
|
1800 rpm
|
55
|
|
PVXS-090
|
90 cm³/rev (5.5 in³/rev)
|
162 L/min (43 USgpm)
|
350 bar (5075 psi)
|
420 bar (6090 psi)
|
1800 rpm
|
75
|
|
PVXS-130
|
130 cm³/rev (7.9 in³/rev)
|
234 L/min (62 USgpm)
|
350 bar (5075 psi)
|
420 bar (6090 psi)
|
1800 rpm
|
106
|
|
PVXS-180
|
180 cm³/rev (11 in³/rev)
|
324 L/min (86 USgpm)
|
350 bar (5075 psi)
|
420 bar (6090 psi)
|
1800 rpm
|
114
|
|
PVXS-250
|
250 cm³/rev (15.2 in³/rev)
|
450 L/min (119 USgpm)
|
350 bar (5075 psi)
|
420 bar (6090 psi)
|
1800 rpm
|
212
|
1.2 Additional Specifications
-
Rotation Direction: Clockwise when viewed from the shaft end; counterclockwise available on request.
-
Speed Range: Minimum 150 rpm, maximum 1800 rpm.
-
Pipe Connections: SAE/Flange connections, with sizes varying by model (1″ to 3.5″ depending on pressure rating).
-
Fluid Requirements: Hydraulic oil complying with DIN 51524 Part 2; operating viscosity 10-75 cSt (continuous), maximum start-up viscosity 1000 cSt.
-
Ambient Temperature Range: -4°F to 122°F (-20°C to 50°C); fluid temperature range -13°F to 194°F (-25°C to 90°C).
2. Product Features
-
Swashplate axial piston design ensures high reliability and extended service life, suitable for heavy-duty industrial operations.
-
Oversized shafts and bearings enhance load capacity and shock resistance, reducing maintenance frequency.
-
Pressure-balanced rotating and pressure-loaded components minimize internal wear and improve energy efficiency.
-
Modular “building block” design allows integration of optional components such as integrated pilot pumps, filters, and pressure relief valves, adapting to diverse system requirements.
-
Low noise operation achieved through patented timing configuration, with pressure pulsation minimized to match or even lower than the driving motor’s noise level.
-
Fast response times to control signals, ensuring precise and efficient system operation.
3. Displacement Control Modes
-
ES: Electric motor displacement control.
-
HG: Handwheel displacement control (special feature).
-
FE: Screw adjustment control (special feature).
-
DF: Pressure compensator control, maintaining constant system pressure across the entire volumetric flow range, with remote setting capability.
-
DQ: Mooring control for stable positioning during standby.
-
LR: Power control with pressure limiter, featuring a hyperbolic P/Q characteristic curve to maintain constant drive torque at fixed speed.
-
SP/SM: Displacement proportional to electric signal, enabling precise electronic control.
-
DP: Displacement proportional to pressure signal, adapting automatically to system pressure changes.
4. Typical Applications
-
Metal Forming: Hydraulic systems for tube bending machines, presses, and stamping equipment, providing stable pressure and precise flow control.
-
Marine and Offshore: Winches, steering systems, and cargo handling equipment, withstanding harsh marine environments and ensuring reliable operation.
-
Chemical Industry: Mixing, grinding, and shredding equipment, compatible with various hydraulic fluids and resistant to corrosion.
-
Industrial Hydraulic Power Units: Custom power supplies for automated production lines, offering efficient energy utilization through load-sensing options.
-
Mining Machinery: Hydraulic supports and coal mining equipment, delivering high power output for heavy-load operations.
-
Agricultural Machinery: Irrigation systems and harvesting equipment, adapting to variable load conditions with consistent performance.
5. Typical Model Examples
-
PVXS-066M02R0001R01SV0ADF000A0F0010
-
PVXS-090MRDF0000000
-
PVXS-130M04R001R01SVVADF
-
PVXS-180MRDF0000000
-
PVXS-250M06R0001R01SVVADF000A0
