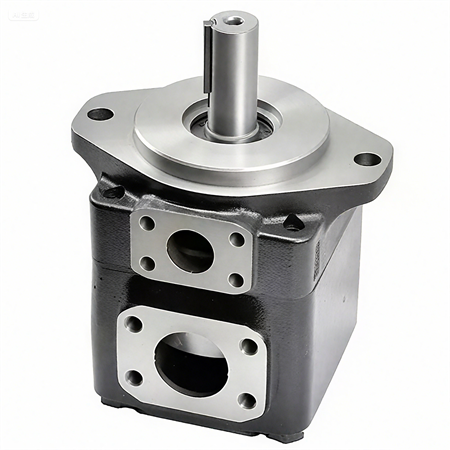

T6C series Vane pump
T6 series vane pump models: T6C, T6D, T6E,T6CC, T6DC, T6EC,T67DBB, T67DCB, T6DCC, T67DDBS, T6DDCS, T67EDB(S), T6EDC(S), etc.
T7 series vane pump models: T7B, T7BS, T7D, T7E,T7DB, T7DC, T7DBB, T7DCB, T7DCC, T7DDB, T7EDB, etc.
Specifications of Parker Denison T6C Series Vane Pumps
1. Basic Information
|
Item
|
Description (T6C Series)
|
|
Product Series
|
Parker Denison T6C Series Vane Pumps
|
|
Pump Type
|
Single Fixed Displacement Vane Pump (optimized for medium-low pressure general industrial applications, with compact design for versatile installation scenarios)
|
|
Core Technology
|
Denison Advanced Medium-Low Pressure Vane Technology, single-lip vane design with wear-resistant coating, optimized hydraulic balance structure, and high volumetric efficiency under medium-low pressure conditions
|
|
Mounting Type
|
SAE 4-bolt mounting flange (SAE J744 standard) as standard; ISO 4-bolt mounting flange (ISO 3019/1 standard) optional, with lightweight flange structure for easy installation
|
|
Weight Range
|
Approx. 10kg – 22kg, varies by displacement size and optional configurations (lighter than high-pressure series for better installation flexibility)
|
|
Port Configurations
|
32 port position combinations, optional port sizes (1/2″ to 1.5″) to adapt to medium-low pressure and medium-flow system requirements
|
2. Key Technical Parameters
2.1 Pressure & Speed
|
Parameter
|
Value (T6C Series)
|
Remarks
|
|
Maximum Intermittent Pressure
|
Up to 240 bar
|
Intermittent operation duration: ≤ 10% of total operating time; suitable for short-term pressure peaks in general industrial systems
|
|
Maximum Continuous Pressure
|
Up to 210 bar
|
Recommended for long-term medium-low pressure operation; stable pressure output ensures system reliability and extends pump service life
|
|
Speed Range
|
450 – 2400 rpm (industrial type); 400 – 2200 rpm (light-duty working conditions)
|
Displacement and speed are inversely proportional; higher displacement requires lower maximum operating speed to maintain stability
|
|
Minimum Stable Speed
|
Approx. 300 rpm
|
Ensures adequate lubrication of internal components, prevents vane jamming and abnormal noise in low-speed operation
|
|
Volumetric Efficiency
|
Typically 0.90 – 0.93
|
High volumetric efficiency minimizes energy loss and system heat generation, adapting to long-term medium-low pressure operation
|
|
Noise Level
|
≤ 74 dB(A) @ 1800 rpm
|
Optimized vane and cam ring profile, low pressure pulsation (±2.0 bar), reducing pipeline vibration and noise pollution in industrial workshops
|
2.2 Displacement Specifications
|
Displacement Code
|
Displacement (ml/rev)
|
Applicable Series
|
Remarks
|
|
006
|
19.1
|
T6C
|
Mini displacement, suitable for medium-low pressure, low-flow system applications
|
|
008
|
25.4
|
T6C
|
Small displacement, widely used in light industrial equipment with low pressure demand
|
|
010
|
31.8
|
T6C
|
Medium-small displacement, compatible with most medium-low pressure, low-medium flow systems
|
|
012
|
38.2
|
T6C
|
Universal displacement, balanced flow and medium-low pressure performance for general industrial use
|
|
016
|
50.8
|
T6C
|
Medium displacement, suitable for medium-low pressure, medium-flow industrial systems
|
|
020
|
63.5
|
T6C
|
Medium-large displacement, ideal for medium-low pressure, high-flow general industrial applications
|
|
025
|
79.4
|
T6C
|
Large displacement, high flow output, suitable for medium-low pressure, high-demand systems
|
|
030
|
95.2
|
T6C
|
Maximum displacement for the series, suitable for large-scale medium-low pressure industrial equipment
|
2.3 Other Key Parameters
-
Contamination Resistance: Single-lip vane with wear-resistant coating reduces sensitivity to hydraulic oil cleanliness (NAS 7 grade or higher is recommended for optimal performance; NAS 6 grade for harsh medium-low pressure conditions)
-
Temperature Range: -20°C ~ +80°C (T6C Series); adjustable to -30°C with special low-temperature hydraulic oil, suitable for most general industrial environments
-
Shaft Type: Keyed shaft (SAE F) as standard; splined shaft (SAE CC/SAE D) optional, with reliable torque-bearing capacity to adapt to medium-low pressure operation
-
Rotation Direction: Standard clockwise (R); counterclockwise (L) optional, stable transmission and consistent output even under long-term operation
-
Seal Type: Standard Nitrile Rubber (NBR); Viton, EPDM or PTFE seal materials optional based on working conditions and hydraulic medium, ensuring good sealing performance under medium-low pressure
-
Flow Rate: Up to 200 L/min @ 2000 rpm (varies by displacement size, matching the medium-low pressure and medium-flow positioning of the series)
3. Applicable Medium & Environment
-
Applicable Medium: Mineral oil, biodegradable oil, water-based hydraulic fluid, etc.; recommended viscosity 10 ~ 100 cSt for stable medium-low pressure operation
-
Applicable Fluids: Compatible with fire-resistant fluids (phosphate esters, water glycols) and biodegradable fluids (organic esters, rapeseed oil), ensuring reliable performance in general industrial environments
-
Application Fields: Medium-low pressure industrial hydraulic systems, general-purpose machinery (e.g., machine tools, plastic machinery, textile equipment, small hydraulic presses, light engineering machinery, agricultural machinery)
4. Core Features
-
Medium-Low Pressure Adaptability: Optimized structural design and single-lip vane technology ensure stable operation under medium-low pressure conditions, with strong durability and long service life
-
Flexible Mounting Options: SAE flange as standard and ISO flange optional, meeting different industrial mounting standards and improving compatibility with global general-purpose equipment
-
High Stability: Hydraulic balance structure and wear-resistant vane design ensure stable pressure and flow output, reducing operational failures in general industrial scenarios
-
Easy Maintenance: Integrated cartridge design allows quick disassembly and replacement, reducing downtime and maintenance costs by approximately 50%
-
Low Noise & Low Pulsation: Optimized vane and cam ring profile minimizes pressure pulsation and noise, creating a quiet working environment for industrial workshops
-
Wide Adaptability: Compatible with various hydraulic media and temperature ranges, suitable for diverse medium-low pressure general industrial application scenarios.
T6 series vane pump models: T6C-003 to T6C-031, T6D-014 to T6D-050, T6E-042 to T6E-085, etc.
T7 series vane pump models: T7B, T7BS, T7D, T7E, etc.
T6 series double pump model: T6CC, T6DC, T6EC, etc.
T7 series double pump model: T7DB, T7DC, etc.
T6 series triple pump models: T67DBB, T67DCB, T6DCC, T67DDBS, T6DDCS, T67EDB(S), T6EDC(S), etc.
T7 series triple pump models: T7DBB, T7DCB, T7DCC, T7DDB, T7EDB, etc.
