T7DS series Parker Denison Vane Pump
Single pump：T6C、T6D、T6E、T6CM、T6CP、T7B、T7BS、T7D、T7DS、T7E、T7ES
Double pump：T6CC、T6DC、T6EC、T6ED、T6EE、T7BB、T7BBS、T7DB、T7DBS、T7EB、T7EBS、T67CB、T67DB、T67EB、T67DBS
Triple pump：T6DCC、T6EDC、T6ECC、T6EDCC、T7DBB、T7DBSB、T7EBB、T7EBSB、T67EDB、T67EDBS、T67DCB、T67DDBS
| Contact us |
| Whats app: +86 13728707767 |
| E-mail: hyd-sales2009@outlook.com |
1. Series Overview & Structural Features
|
Item
|
Technical Description
|
|
Pump Structure
|
Single pump, fixed displacement, single-stage vane structure
|
|
Standard Mounting
|
SAE C 2-bolt J744 standard flange (5-inch spigot)
|
|
Core Advantages
|
Low noise operation, high volumetric efficiency, strong low-speed performance, servo system adaptation
|
|
Typical Application
|
Servo hydraulic systems, variable speed drive equipment, precision industrial machinery
|

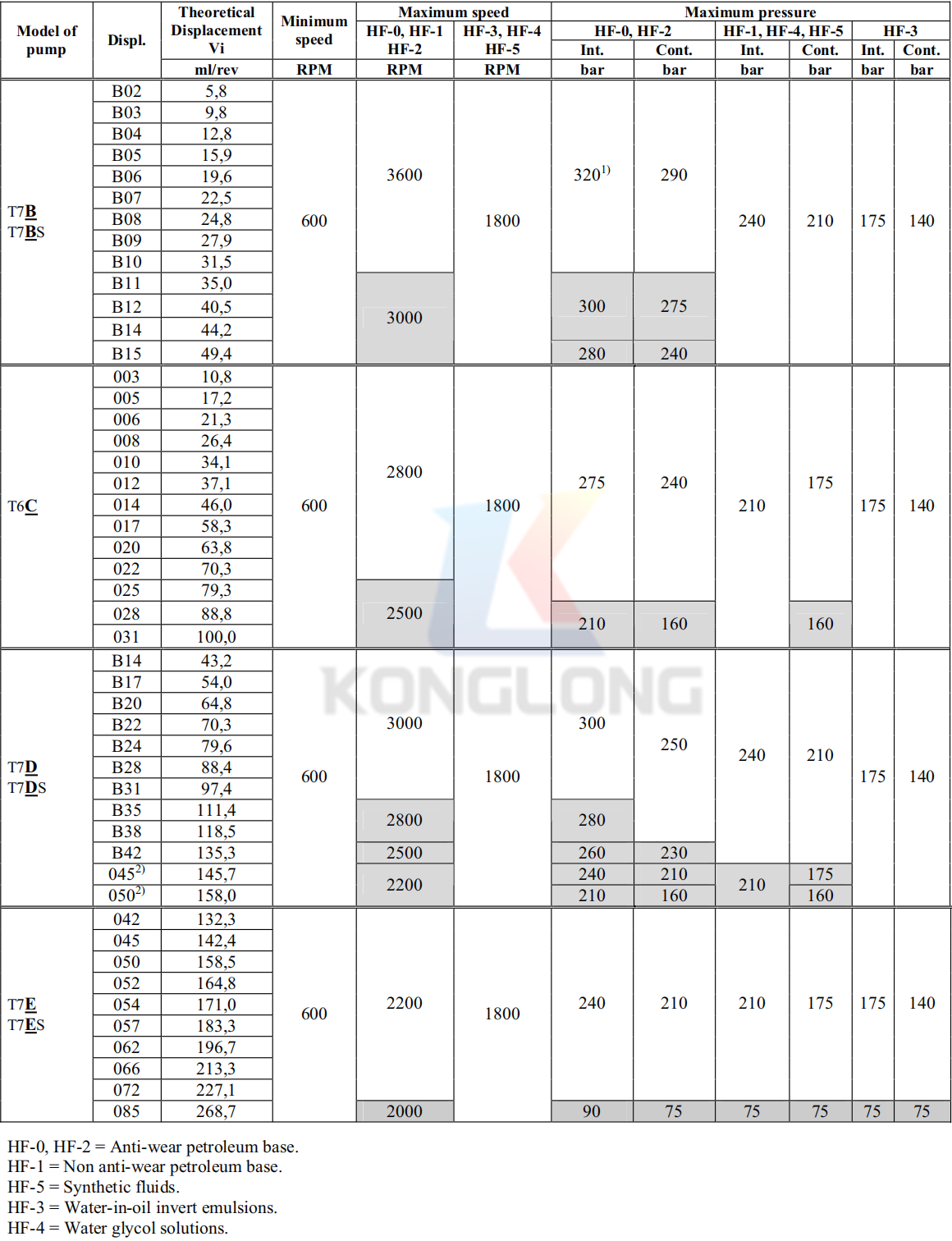

2. Core Technical Parameters
|
Parameter Item
|
Standard Value Range
|
Remarks
|
|
Theoretical Displacement Range
|
44.0–158.0 cm³/rev (2.68–9.64 in³/rev)
|
Complete displacement coverage via multiple pump core codes
|
|
Max Continuous Working Pressure
|
210–250 bar (3045–3625 psi)
|
Long-term stable rated working pressure
|
|
Max Intermittent Pressure
|
240–280 bar (3480–4060 psi)
|
Short-term peak pressure tolerance
|
|
Rated Speed Range
|
600–3000 rpm
|
Low-speed stable operation available for VSD systems
|
|
Standard Shaft Type
|
1-1/4″ parallel key shaft; optional spline shaft
|
Compatible with standard industrial motor connection
|
|
Standard Seal Configuration
|
S1 BUNA N rubber seal
|
Suitable for standard mineral hydraulic oil
|
|
Max Inlet Pressure
|
0.7 bar
|
Standard inhalation condition requirement
|
|
Applicable Hydraulic Media
|
Mineral oil, biodegradable hydraulic oil, water-based hydraulic fluid
|
Special seals required for non-standard media
|
3. T7DS Series Displacement Code & Corresponding Parameters
|
Displacement Code
|
Theoretical Displacement (ml/rev)
|
Displacement Code
|
Theoretical Displacement (ml/rev)
|
|
B17
|
55.0
|
B31
|
100.0
|
|
B20
|
63.5
|
B38
|
122.0
|
|
B22
|
70.3
|
B42
|
137.5
|
|
B27
|
86.1
|
B50
|
158.0
|
4. Complete Model Naming Convention (Take T7DS-E28-1R02-A5MW as Standard Example)
|
Code Segment
|
Detailed Meaning
|
Optional Specifications
|
|
T7DS
|
Series identifier: SAE C flange single fixed-displacement vane pump
|
Fixed as T7DS
|
|
E28 / BXX
|
Pump core displacement code, determines pump flow output
|
B17/B20/B22/B27/B31/B38/B42/B50, etc.
|
|
1R02
|
Shaft type + rotation direction + configuration code
|
1=standard shaft; R=clockwise; L=counterclockwise; 00/02=standard configuration
|
|
A5
|
Seal grade code
|
A1/A5: different temperature and medium resistant seals
|
|
MW
|
Thread type and mounting accessory code
|
M0=metric thread; W=optimized port configuration
|
5. Typical Standard Models
-
T7DS-E28-1R02-A5MW: Standard SAE C flange single pump, universal for servo and variable speed systems
-
T7DS-B22-1R00-A1M0: 70.3ml/rev medium displacement standard model, widely used in general industrial hydraulic equipment
-
T7DS-B38-1R00-A100: 122.0ml/rev large displacement model for high-flow demand scenarios
-
T7DS-B50-1R00-A100: 158.0ml/rev maximum displacement model for heavy-duty high-flow hydraulic systems
6. Key Product Characteristics
-
Excellent Variable Speed Adaptability: Optimized internal structure design, stable operation at low speed, low pulsation, perfectly matching VSD and servo hydraulic control systems.
-
High Pressure Durability: Adopts Denison patented stator curve and vane structure, with strong wear resistance, ensuring long-term stable operation under 210–250bar high pressure conditions.
-
Low Noise Performance: Precision machining and optimized flow channel design effectively reduce hydraulic noise and mechanical vibration, meeting low-noise workshop operation requirements.
-
Standardized SAE Installation: Unified SAE C 2-bolt flange specification, strong universality, convenient for equipment assembly and replacement.
-
Diversified Configuration: Supports multiple displacements, rotation directions, shaft types and seal combinations to meet differentiated working condition requirements.
7. Main Application Scenarios
-
Servo variable speed hydraulic systems for precision machine tools
-
High-precision injection molding machines, die-casting machines and plastic machinery
-
Heavy-duty pressure equipment such as hydraulic presses and bending machines
-
Automated production line hydraulic power units
-
Industrial variable speed drive (VSD) hydraulic systems
