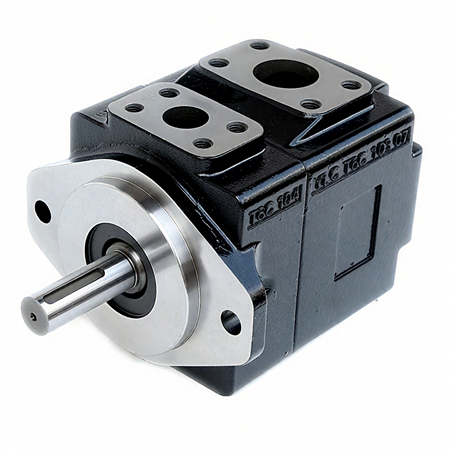

T7EB/T7EBS series Vane pump
T6 series vane pump models: T6C, T6D, T6E,T6CC, T6DC, T6EC,T67DBB, T67DCB, T6DCC, T67DDBS, T6DDCS, T67EDB(S), T6EDC(S), etc.
T7 series vane pump models: T7B, T7BS, T7D, T7E,T7DB, T7DC, T7DBB, T7DCB, T7DCC, T7DDB, T7EDB, etc.
Specifications of Parker Denison T7EB & T7EBS Series Vane Pumps
1. Basic Information
|
Item
|
Description (T7EB / T7EBS)
|
|
Product Series
|
Parker Denison T7EB, Parker Denison T7EBS
|
|
Pump Type
|
Single Fixed Displacement Vane Pump (optimized for medium-high pressure industrial applications; T7EBS features enhanced mounting compatibility)
|
|
Core Technology
|
Denison Advanced Vane Technology, single-lip vane design with wear-resistant coating, hydraulic balance structure, improved volumetric efficiency and operational stability
|
|
Mounting Type
|
T7EB: SAE 4-bolt mounting flange (SAE J744 standard); T7EBS: ISO 4-bolt mounting flange (ISO 3019/1 standard), both compact and compatible with standard industrial layouts
|
|
Weight Range
|
Approx. 15kg – 28kg, varies by displacement size and optional configurations (T7EBS is 1-2kg heavier due to reinforced flange design)
|
|
Port Configurations
|
45 port position combinations for both series, optional port sizes (1/2″ to 1-1/2″) to adapt to different system flow requirements
|
2. Key Technical Parameters
2.1 Pressure & Speed
|
Parameter
|
Value (T7EB / T7EBS)
|
Remarks
|
|
Maximum Intermittent Pressure
|
Up to 280 bar / Up to 280 bar
|
Intermittent operation duration: ≤ 10% of total operating time; avoid prolonged intermittent pressure to protect vane and bearing
|
|
Maximum Continuous Pressure
|
Up to 250 bar / Up to 250 bar
|
Recommended for long-term operation; stable pressure output ensures system reliability and extends pump service life
|
|
Speed Range
|
500 – 2400 rpm / 500 – 2400 rpm (industrial type); 400 – 2200 rpm (heavy-duty working conditions)
|
Displacement and speed are inversely proportional; higher displacement requires lower maximum operating speed
|
|
Minimum Stable Speed
|
Approx. 380 rpm / Approx. 380 rpm
|
Ensures adequate lubrication of internal components, prevents vane jamming and abnormal noise during low-speed operation
|
|
Volumetric Efficiency
|
Typically 0.92 – 0.94 / Typically 0.92 – 0.94
|
High volumetric efficiency minimizes energy loss and system heat generation, reducing overall operating costs
|
|
Noise Level
|
≤ 75 dB(A) @ 1800 rpm / ≤ 74 dB(A) @ 1800 rpm
|
Optimized vane and cam ring profile, low pressure pulsation (±2.0 bar), reducing pipeline vibration and noise pollution
|
2.2 Displacement Specifications
|
Displacement Code
|
Displacement (ml/rev)
|
Applicable Series
|
Remarks
|
|
005
|
15.8
|
T7EB, T7EBS
|
Small displacement, suitable for low-flow system applications
|
|
008
|
25.4
|
T7EB, T7EBS
|
Medium-small displacement, widely used in light industrial equipment
|
|
010
|
31.8
|
T7EB, T7EBS
|
Universal displacement, compatible with most medium-flow systems
|
|
012
|
38.2
|
T7EB, T7EBS
|
High-efficiency displacement, balanced flow and pressure performance
|
|
016
|
50.8
|
T7EB, T7EBS
|
Medium displacement, suitable for medium-pressure, medium-flow industrial systems
|
|
020
|
63.5
|
T7EB, T7EBS
|
Medium-large displacement, ideal for heavy-duty light industrial applications
|
|
025
|
79.4
|
T7EB, T7EBS
|
Large displacement, high flow output, suitable for high-demand systems
|
|
030
|
95.2
|
T7EB, T7EBS
|
Extra-large displacement, compatible with high-flow, medium-pressure systems
|
|
040
|
127.6
|
T7EB, T7EBS
|
Maximum displacement for the series, suitable for large-scale industrial equipment
|
2.3 Other Key Parameters
-
Contamination Resistance: Single-lip vane with wear-resistant coating reduces sensitivity to hydraulic oil cleanliness (NAS 7 grade or higher is recommended for optimal performance; NAS 6 grade for harsh conditions)
-
Temperature Range: -20°C ~ +80°C (T7EB / T7EBS); adjustable to -30°C with special low-temperature hydraulic oil, suitable for most industrial environments
-
Shaft Type: Keyed shaft (SAE F) as standard; splined shaft (SAE CC/SAE D) optional for both series, with strong torque-bearing capacity
-
Rotation Direction: Standard clockwise (R); counterclockwise (L) optional, stable transmission and consistent output during operation
-
Seal Type: Standard Nitrile Rubber (NBR); Viton, EPDM or PTFE seal materials optional based on working conditions and hydraulic medium
-
Flow Rate: Up to 250 L/min @ 2000 rpm (varies by displacement size; T7EBS has the same flow capacity as T7EB with the same displacement)
3. Applicable Medium & Environment
-
Applicable Medium: Mineral oil, biodegradable oil, water-based hydraulic fluid, etc.; recommended viscosity 10 ~ 100 cSt for stable operation
-
Applicable Fluids: Compatible with fire-resistant fluids (phosphate esters, water glycols) and biodegradable fluids (organic esters, rapeseed oil), ensuring reliable performance in harsh environments
-
Application Fields: Medium-high pressure industrial hydraulic systems, light to medium-duty machinery (e.g., machine tools, plastic machinery, textile equipment, hydraulic presses, small engineering machinery)
4. Core Features
-
Compact Structure: Single fixed displacement design, small volume and light weight, saving installation space and adapting to limited-layout equipment
-
Dual Mounting Options: T7EB (SAE flange) and T7EBS (ISO flange) meet different industrial mounting standards, improving compatibility with global equipment
-
High Stability: Hydraulic balance structure and wear-resistant vane design ensure stable pressure and flow output, reducing operational failures
-
Easy Maintenance: Integrated cartridge design allows quick disassembly and replacement, reducing downtime and maintenance costs by approximately 55%
-
Low Noise & Low Pulsation: Optimized vane and cam ring profile minimizes pressure pulsation and noise, protecting pipeline and system components
-
Wide Adaptability: Compatible with various hydraulic media and temperature ranges, suitable for diverse industrial application scenarios.
