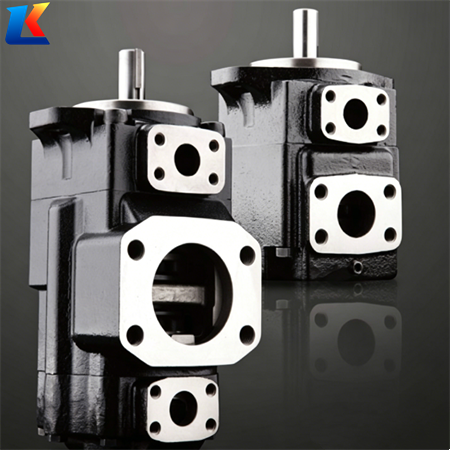

T7EB/T7EBS series Denison Double Vane Pump
Single pump：T6C、T6D、T6E、T6CM、T6CP、T7B、T7BS、T7D、T7DS、T7E、T7ES
Double pump：T6CC、T6DC、T6EC、T6ED、T6EE、T7BB、T7BBS、T7DB、T7DBS、T7EB、T7EBS、T67CB、T67DB、T67EB、T67DBS
Triple pump：T6DCC、T6EDC、T6ECC、T6EDCC、T7DBB、T7DBSB、T7EBB、T7EBSB、T67EDB、T67EDBS、T67DCB、T67DDBS
| Contact us |
| Whats app: +86 13728707767 |
| E-mail: hyd-sales2009@outlook.com |
1. Series Overview
2. General Core Specifications & Parameters
|
Parameter Item
|
Technical Specification
|
Remarks
|
|
Pump Structure
|
Fixed-displacement double vane pump (dual independent pump chambers, dual independent oil output circuits)
|
Dual-circuit separate oil supply, flexible flow matching
|
|
Rated Working Pressure
|
175bar
|
Continuous stable working pressure
|
|
Maximum Peak Pressure
|
280bar
|
Short-term instantaneous impact pressure tolerance
|
|
Speed Range
|
600~2800rpm
|
Standard industrial range; servo optimal range: 800~2500rpm
|
|
Single Pump Displacement Range
|
10.8~108.5cm³/rev
|
Rich E-series displacement grade combinations
|
|
Total Displacement Range
|
21.6~217.0cm³/rev
|
Free combination of large and small flow rates
|
|
Volumetric Efficiency
|
≥93% (1500rpm standard working condition)
|
Mechanical efficiency ≥95%, low internal leakage
|
|
Applicable Medium
|
Mineral anti-wear hydraulic oil, industrial hydraulic fluid
|
Standard NBR seal, FKM seal customizable
|
|
Working Oil Temperature
|
-20℃~80℃
|
Stable operation in conventional industrial temperature range
|
|
Pump Body Material
|
High-strength cast iron housing, high-precision alloy rotor and blades
|
Excellent wear resistance and pressure impact resistance
|
|
Overall Weight
|
32~38kg
|
Slight difference according to displacement specifications
|
3. Model Coding Rules (Core Definition)
-
Series Suffix: EB = Standard general-purpose medium-pressure double pump; EBS = Servo low-noise optimized upgrade type
-
Displacement Code: E+ number, stands for nominal single pump displacement (cm³/rev)
-
Rotation Direction: 1R = Standard right rotation (clockwise), 5R = Reinforced right rotation, 1L = Left rotation (counterclockwise)
-
Seal Code: A1M0 = NBR standard seal for conventional mineral hydraulic oil
4. Detailed Parameters of 20 Core Models
|
No.
|
Full Model
|
Front Pump Displacement (cm³/rev)
|
Rear Pump Displacement (cm³/rev)
|
Total Displacement (cm³/rev)
|
Rated Pressure (bar)
|
Peak Pressure (bar)
|
Applicable Speed (rpm)
|
Structural Features & Application
|
|
1
|
T7EBS-E12-E12-1R01-A1M0
|
12
|
12
|
24
|
175
|
280
|
600~2800
|
Servo low-noise type, small equal flow, precision automation equipment dedicated
|
|
2
|
T7EBS-E18-E18-1R01-A1M0
|
18
|
18
|
36
|
175
|
280
|
600~2800
|
Ultra-low pulsation, suitable for precision machine tool hydraulic systems
|
|
3
|
T7EBS-E25-E25-5R03-A1M0
|
25
|
25
|
50
|
175
|
280
|
600~2800
|
Reinforced shaft end, heavy-duty continuous servo working condition
|
|
4
|
T7EBS-E32-E32-1R01-A1M0
|
32
|
32
|
64
|
175
|
280
|
600~2800
|
Medium flow equal pump, packaging machinery dedicated
|
|
5
|
T7EBS-E25-E18-1R01-A1M0
|
25
|
18
|
43
|
175
|
280
|
600~2800
|
Mixed flow combination, dual-circuit independent oil supply
|
|
6
|
T7EBS-E32-E22-1R00-A1M0
|
32
|
22
|
54
|
175
|
280
|
600~2800
|
Standard flange mounting, universal for light industrial hydraulic systems
|
|
7
|
T7EB-E15-E10-1R01-A1M0
|
15
|
10
|
25
|
175
|
280
|
600~2800
|
Standard general type, small hydraulic station special
|
|
8
|
T7EB-E22-E15-1R01-A1M0
|
22
|
15
|
37
|
175
|
280
|
600~2800
|
Cost-effective conventional medium-pressure model, stable operation
|
|
9
|
T7EB-E28-E28-1R01-A1M0
|
28
|
28
|
56
|
175
|
280
|
600~2800
|
Medium flow equal double pump, general automation equipment standard
|
|
10
|
T7EB-E35-E25-1R01-A1M0
|
35
|
25
|
60
|
175
|
280
|
600~2800
|
High and low flow matching, energy-saving oil supply for multi-action equipment
|
|
11
|
T7EBS-E22-E15-1L01-A1M0
|
22
|
15
|
37
|
175
|
280
|
600~2800
|
Left rotation servo model, suitable for special installation layout equipment
|
|
12
|
T7EBS-E40-E32-1R01-A1M0
|
40
|
32
|
72
|
175
|
280
|
600~2800
|
Large flow combination, medium-duty industrial machinery dedicated
|
|
13
|
T7EB-E18-E12-1R01-A1M0
|
18
|
12
|
30
|
175
|
280
|
600~2800
|
Small flow basic model, low-power hydraulic system preferred
|
|
14
|
T7EB-E32-E32-1R01-A1M0
|
32
|
32
|
64
|
175
|
280
|
600~2800
|
Medium flow universal model, wide applicability
|
|
15
|
T7EBS-E28-E22-1R03-A1M0
|
28
|
22
|
50
|
175
|
280
|
600~2800
|
Reinforced shaft configuration, long-term continuous operation resistance
|
|
16
|
T7EB-E25-E18-1R01-A1M0
|
25
|
18
|
43
|
175
|
280
|
600~2800
|
Multi-circuit compatible model, high cost performance
|
|
17
|
T7EBS-E45-E35-1R01-A1M0
|
45
|
35
|
80
|
175
|
280
|
600~2800
|
Large flow servo model, medium-duty forging and forming equipment
|
|
18
|
T7EB-E22-E22-1R01-A1M0
|
22
|
22
|
44
|
175
|
280
|
600~2800
|
Small-medium equal flow pump, standard for general hydraulic stations
|
|
19
|
T7EBS-E35-E25-1L01-A1M0
|
35
|
25
|
60
|
175
|
280
|
600~2800
|
Left rotation low-noise model, special equipment matching
|
|
20
|
T7EB-E40-E30-1R01-A1M0
|
40
|
30
|
70
|
175
|
280
|
600~2800
|
Large flow mixed pump, stable for medium-pressure heavy machinery
|
5. Model Selection Instructions
