VDS-0B-1A2-10 nachi vane pump
VDS Series: VDS-0A; VDS-0B
Whats app: +86 13728707767
E-mail: hyd-sales2009@outlook.com
We are a professional manufacturer of hydraulic pumps, offering a complete range of products. Inquiries are welcome! (#^.^#)
Nachi Vane Pump VDS-0B-1A2-10: Model Explanation & Technical Parameters
1. Model Explanation
-
VDS: Series Identifier, representing Nachi’s compact variable vane pump series. This series inherits the performance advantages of the original VDR series, featuring high efficiency, low noise and compact structure, with minimal power loss especially at full cutoff.
-
0: Pump Size, indicating the basic size specification of the pump, which determines the overall structure and installation dimensions of the pump.
-
B: Mounting Method, standing for flange type mounting. This mounting method is designed for hydraulic system layouts that require stable and firm connections, providing better load-bearing capacity and installation stability compared to foot type mounting, and is a standard mounting option for VDS series pumps with size 0.
-
1: Ring Size, corresponding to a no-load flow rate of 3.94 gpm when the pump operates at 1800 min⁻¹, which is a fixed ring size specification for this model variant.
-
A: Flow Rate Characteristics, representing the constant discharge type, ensuring stable flow output during the pump’s operation and adapting to most hydraulic system requirements.
-
2: Pressure Adjustment Range, indicating the adjustable pressure range of the pump is 217 to 507 psi (equivalent to 1.5-3.5 MPa), which belongs to the second level of pressure adjustment range for VDS series pumps and is suitable for medium-pressure working conditions.
-
10: Design Number, representing the specific design version of the pump, which is related to the internal structure, sealing type and other detailed configurations, consistent with the standard design of VDS series pumps.

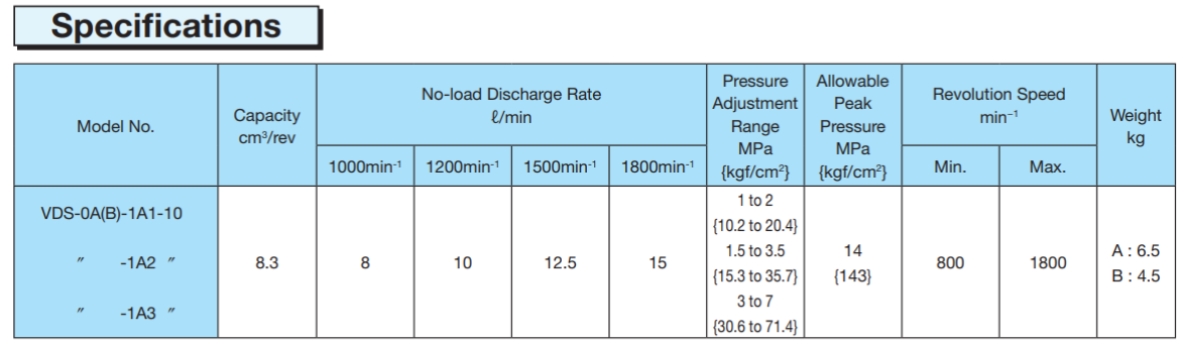

2. Technical Parameters
|
Parameter Category
|
Parameter Description
|
Value
|
|
Basic Parameters
|
Pump Type
|
Compact Variable Volume Vane Pump
|
|
Series
|
VDS
|
|
|
Performance Parameters
|
No-Load Flow Rate (1800 min⁻¹)
|
3.94 gpm
|
|
Pressure Adjustment Range
|
217 – 507 psi (1.5 – 3.5 MPa)
|
|
|
Rotation Speed Range
|
800 – 1800 min⁻¹
|
|
|
Installation & Physical Parameters
|
Mounting Method
|
Flange Type Mounting (Mount B)
|
|
Weight
|
9.9 lb (4.5 kg)
|
|
|
Operational Parameters
|
Rotation Direction
|
Clockwise (when viewed from the shaft side)
|
|
Max Back Pressure of Drain Piping
|
≤ 4.3 psi
|
|
|
Pressure Adjustment Method
|
Clockwise rotation of the adjusting screw to increase pressure; counter-clockwise rotation to decrease pressure.
|
3. Key Features
-
High Efficiency: Precise machining minimizes power loss, especially during full cutoff operation, ensuring efficient energy utilization, which inherits the performance advantages of the VDR series.
-
Quiet Operation: Equipped with journal bearings (proven effective in IP pumps) and optimized suction/discharge port configurations, reducing operating noise and vibration even in the medium to high-pressure range (up to 507 psi).
-
Compact & Simple Design: Economical and easy to handle, suitable for a wide range of hydraulic systems, and the flange type mounting enhances installation stability, meeting the demand for firm connections in hydraulic layouts.
-
Precise Performance: Prompt on-off response ensures instantaneous, stable and high-precision operation, meeting the requirements of medium-pressure working conditions corresponding to the 217-507 psi pressure range.
-
Durable Construction: High-quality materials and exquisite craftsmanship ensure excellent durability and long service life, consistent with the robust structural design of Nachi VDS series pumps.
