Rexroth hydraulic pumps catalog Manual
Bosch Rexroth hydraulic pumps are industry-leading solutions for industrial, mobile, and precision hydraulic systems, renowned for high efficiency, reliability, and versatility. This catalog manual provides a comprehensive overview of Rexroth hydraulic pump series, models, specifications, applications, and technical details—optimized for Rank Math SEO to help engineers, procurement managers, and industry professionals find the right pump for their needs.
Keywords: REXROTH hydraulic pumps, Rexroth hydraulic pump catalog, Rexroth pump models, Bosch Rexroth hydraulic pump manual, Rexroth axial piston pump, Rexroth vane pump, Rexroth gear pump, industrial hydraulic pumps, high-pressure hydraulic pumps
1. Introduction to REXROTH Hydraulic Pumps
Bosch Rexroth offers a complete portfolio of hydraulic pumps designed to meet the demands of nearly all manufacturing and process engineering fields, including presses, plastic processing machines, metallurgy, marine technology, energy and environmental technology, transportation, and machine tools. Each pump is engineered for maximum productivity, reliability, and energy efficiency, with digital control and component networking integrated to adapt to modern industrial needs.
This catalog manual covers all core Rexroth hydraulic pump types, including axial piston pumps, vane pumps, gear pumps (external and internal), radial piston pumps, and electrohydraulic pumps, with detailed model listings, technical specifications, and application guidelines to support informed purchasing and selection decisions.
2. REXROTH Hydraulic Pump Series & Models (Complete Catalog)
Below is a comprehensive list of Rexroth hydraulic pump series and popular models, organized by pump type for easy navigation. All models are optimized for search visibility, with key technical parameters to assist in product matching.
2.1 Axial Piston Pumps (Medium & High Pressure)

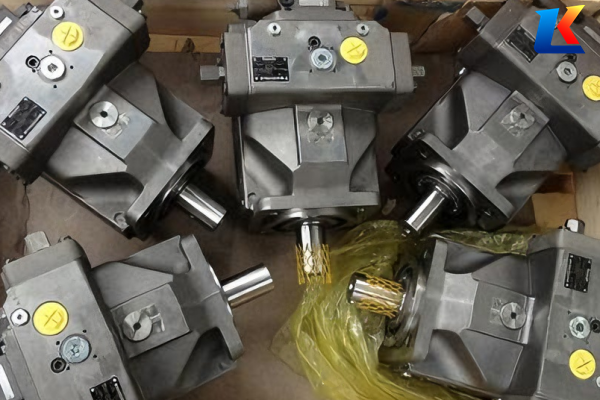

Rexroth axial piston pumps are available in swash plate and bent axis designs, suitable for medium and high-pressure applications. They offer a wide range of designs, performance options, and adjustment settings, making them ideal for both mobile and stationary industrial applications.
2.1.1 Fixed Displacement Axial Piston Pumps
-
A2FO Series 6 – Models: A2FO10/61R-PBB05, A2FO16/61R-PAB05, A2FO23/61R-PAB05, A2FO32/61R-PAB05
-
AA2FO Series 6 – Models: AA2FO10/61R-PBB05, AA2FO16/61R-PAB05, AA2FO23/61R-PAB05
-
A4FO Series – Models: A4FO16/10R-PBB05, A4FO25/10R-PAB05, A4FO32/10R-PAB05
-
A10FZO Series 10 – Models: A10FZO28/10R-PAB05, A10FZO45/10R-PAB05
-
A10FZG Series 10 – Models: A10FZG28/10R-PAB05, A10FZG45/10R-PAB05
2.1.2 Variable Displacement Axial Piston Pumps (Open Circuit)
-
A1VO Series 10 – Models: A1VO28/10R-PAB05, A1VO45/10R-PAB05, A1VO71/10R-PAB05
-
A4VBO Series – Models: A4VBO125/10R-PBB05, A4VBO180/10R-PBB05
-
A4VSO Series – Models: A4VSO40DR/10R-PPB13N00, A4VSO71DR/10R-PPB13N00, A4VSO125DR/10R-PPB13N00
-
AA4VSO Series – Models: AA4VSO40DR/10R-PPB13N00, AA4VSO71DR/10R-PPB13N00
-
A7VO Series 63 – Models: A7VO55DR/63R-VPB01, A7VO80DR/63R-VPB01, A7VO107DR/63R-VPB01
-
A10VO Series 5X – Models: A10VO28DR/31R-PKC62N00, A10VO45DR/31R-PKC62N00
-
A10VSO Series 31 – Models: A10VSO28DR/31R-PKC62N00, A10VSO45DR/31R-PKC62N00
-
AA10VSO Series 31 – Models: AA10VSO28DR/31R-PKC62N00, AA10VSO45DR/31R-PKC62N00
-
A10VSO Series 32 – Models: A10VSO71DR/32R-PKC62N00, A10VSO100DR/32R-PKC62N00
-
A15VSO Series 1X – Models: A15VSO130DR/10R-PPB13N00, A15VSO180DR/10R-PPB13N00
2.1.3 Variable Displacement Axial Piston Pumps (Closed Circuit)
-
A4VSG Series – Models: A4VSG125DR/10R-PPB13N00, A4VSG180DR/10R-PPB13N00
-
AA4VSG Series – Models: AA4VSG125DR/10R-PPB13N00, AA4VSG180DR/10R-PPB13N00
-
A4CSG Series 30 – Models: A4CSG125/30R-PPB13N00, A4CSG180/30R-PPB13N00
-
AA4CSG Series 30 – Models: AA4CSG125/30R-PPB13N00, AA4CSG180/30R-PPB13N00
2.2 Vane Pumps (Medium Pressure, Low Noise)
Rexroth vane pumps are available in a wide range of sizes, designed for applications requiring medium operating pressures and low noise outputs. They offer reliable performance and easy integration into various hydraulic systems.
-
PV7 Series (Pilot Operated Adjustable) – Models: PV7-1X/10-14RE01MC0-16, PV7-1X/20-25RE01MC0-16, PV7-1X/40-45RE01MC0-16
-
PV7-A Series – Models: PV7-1X/10-14RE01MA0-16, PV7-1X/20-25RE01MA0-16
-
PVV Series (Fixed Displacement) – Models: PVV1-1X/040RA15DMC, PVV1-1X/063RA15DMC, PVV1-1X/100RA15DMC
-
PVQ Series (Fixed Displacement) – Models: PVQ1-1X/040RA15DMC, PVQ1-1X/063RA15DMC
-
PSV Series (Variable Displacement) – Models: PSV2-1X/063RA15DMC, PSV2-1X/100RA15DMC
-
VPV Series (Silent Vane Pumps) – Models: VPV1-1X/040RA15DMC, VPV1-1X/063RA15DMC
2.3 Gear Pumps (Cost-Effective, Versatile)
Rexroth gear pumps include external and internal designs, offering cost-effective solutions for low to medium pressure applications. They are designed for high efficiency, low heat loss, and easy integration with other Rexroth hydraulic components.
2.3.1 External Gear Pumps
-
AZPB Series – Models: AZPB-10-016RCB20MB, AZPB-10-025RCB20MB, AZPB-10-032RCB20MB
-
AZPF Series – Models: AZPF-10-016RCB20MB, AZPF-10-025RCB20MB
-
AZPN Series – Models: AZPN-10-016RCB20MB, AZPN-10-025RCB20MB
-
AZPG Series – Models: AZPG-10-016RCB20MB, AZPG-10-025RCB20MB
-
AZPS Series – Models: AZPS-10-016RCB20MB, AZPS-10-025RCB20MB
2.3.2 Internal Gear Pumps (Fixed Displacement)
-
PGF Series – Models: PGF1-1X/016RE01VE4, PGF1-1X/025RE01VE4, PGF1-1X/032RE01VE4
-
PGH Series – Models: PGH2-1X/016RE01VE4, PGH2-1X/025RE01VE4, PGH3-1X/040RE01VE4
2.3.3 Gerotor Pumps (Low Pressure)
-
PGZ Series – Models: PGZ-1X/005RE01VE4, PGZ-1X/010RE01VE4, PGZ-1X/016RE01VE4 (for low-pressure applications up to 15 bar)
2.4 Radial Piston Pumps (High Pressure)
Rexroth radial piston pumps deliver extremely high operating pressures (up to 700 bar), making them suitable for heavy-duty industrial applications requiring maximum performance and durability.
-
PR4-1X Series – Models: PR4-1X/050RE01VE4, PR4-1X/071RE01VE4
-
PR4-3X Series – Models: PR4-3X/100RE01VE4, PR4-3X/140RE01VE4
-
R4 Series – Models: R4-10/050RE01VE4, R4-10/071RE01VE4
-
R4 Mini Series – Models: R4 Mini-1X/025RE01VE4, R4 Mini-1X/032RE01VE4
2.5 Electrohydraulic Pumps
Rexroth electrohydraulic pumps convert electrical energy (current and voltage) into hydraulic energy (flow and pressure), designed for high efficiency and low heat loss, ideal for vehicles and material handling systems.
-
EHP Series – Models: EHP1-1X/016RE01VE4, EHP1-1X/025RE01VE4, EHP2-1X/040RE01VE4
3. Key Technical Specifications & Selection Guide
When selecting a Rexroth hydraulic pump, consider the following key parameters to ensure compatibility with your hydraulic system:
-
Working Pressure: Ranges from 15 bar (gerotor pumps) to 700 bar (radial piston pumps), with most industrial models operating between 21–350 bar.
-
Displacement: Varies by series, from small-displacement (5 cc/rev) to large-displacement (270 cc/rev) models.
-
Control Type: Pressure compensation, load sensing, electro-hydraulic proportional (P/Q), constant pressure/constant flow (depending on series).
-
Application: Match the pump to your industry (industrial machinery, mobile equipment, precision tools) and operating conditions (high pressure, low noise, compact design).
4. Application Areas
Rexroth hydraulic pumps are widely used across industries, including:
-
Industrial machinery (presses, plastic processing machines, machine tools)
-
Mobile equipment (construction machinery, agricultural machinery)
-
Marine and offshore technology
-
Energy and environmental technology
-
Metallurgy and heavy industry
-
Medical equipment and precision automation
5. Maintenance & Warranty Information
Proper maintenance ensures the long service life of Rexroth hydraulic pumps. Follow these guidelines:
-
Regularly check oil level and quality to prevent contamination.
-
Inspect seals and connections for leaks and wear.
-
Follow the recommended service intervals outlined in the official Rexroth technical manual.
-
All Rexroth hydraulic pumps come with a standard 1-year warranty, covering manufacturing defects and faulty components.
6. Where to Buy Rexroth Hydraulic Pumps
For genuine Rexroth hydraulic pumps, purchase through authorized Rexroth distributors or the official Bosch Rexroth website. Authorized distributors provide genuine products, technical support, and after-sales service to ensure optimal performance and compatibility.
Note: This catalog manual is updated for 2026 and includes the latest Rexroth hydraulic pump series and models. For detailed technical drawings, performance curves, and customization options, refer to the official Bosch Rexroth technical documentation or contact an authorized representative.
