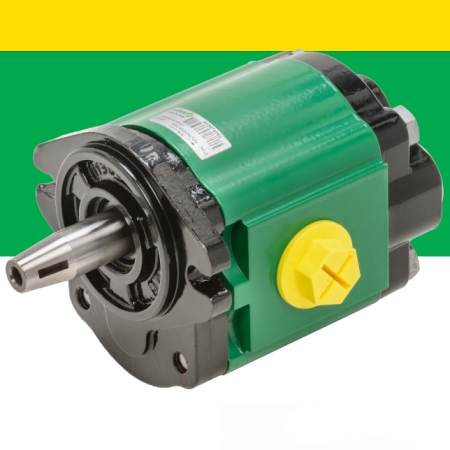

2.5PB-11.5*、2.5PB-13.8* series salami gear pumps
2.5PB-5.5*、 2.5PB-8.3*、 2.5PB-11.5*、 2.5PB-13.8*、 2.5PB-16、 2.5PB-19、 2.5PB-22、 2.5PB－25、 2.5PB－28、 2.5PB－32、 2.5PB-38、 2.5PB-44
E-mail: hyd-sales2009@outlook.com
Parameter Description of SALAMI Gear Pump 2.5PB-11.5* & 2.5PB-13.8*
1. Product Overview

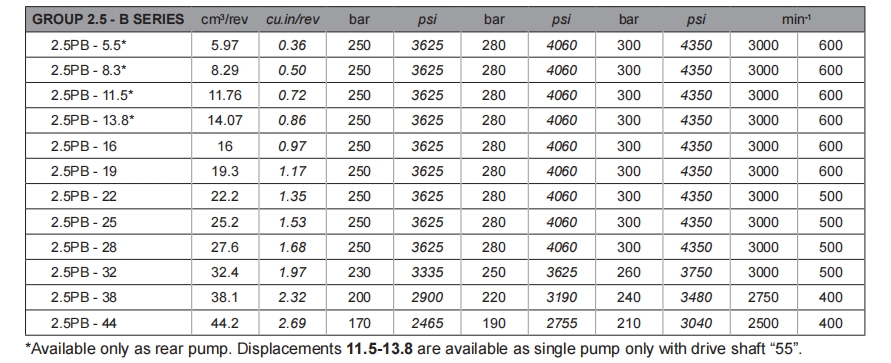

2. Detailed Parameters
|
Parameter
|
Unit
|
2.5PB-11.5*
|
2.5PB-13.8*
|
|---|---|---|---|
|
Displacement
|
cm³/rev
|
11.76
|
14.07
|
|
Displacement
|
cu.in./rev
|
0.72
|
0.86
|
|
Dimension A
|
mm
|
58.2
|
60.6
|
|
Dimension A
|
in
|
2.29
|
2.38
|
|
Continuous Pressure (P1)
|
bar
|
250
|
250
|
|
Continuous Pressure (P1)
|
psi
|
3625
|
3625
|
|
Intermittent Pressure (P2)
|
bar
|
280
|
280
|
|
Intermittent Pressure (P2)
|
psi
|
4060
|
4060
|
|
Peak Pressure (P3)
|
bar
|
300
|
300
|
|
Peak Pressure (P3)
|
psi
|
4350
|
4350
|
|
Maximum Speed
|
rpm
|
3000
|
3000
|
|
Minimum Speed
|
rpm
|
600
|
600
|
|
Weight
|
kg
|
2.70
|
2.83
|
|
Weight
|
lbs
|
6.00
|
6.23
|
3. General Technical Notes
-
Gear & Bearing: Equipped with 12-tooth integral gears, floating bushings and anti-friction DU bearings for axial compensation, ensuring consistent performance across the full pressure range.
-
Sealing: Adopts double shaft seal design to effectively prevent oil leakage; standard with nitrile seals, Viton seals are available for high-temperature applications (-15°C to 110°C).
-
Fluid & Temperature: Recommended hydraulic fluid is mineral oil; the minimum operating fluid viscosity is 12 mm²/sec, and the suggested viscosity range is 17-65 mm²/sec; operating temperature ranges from -20°C to 80°C with standard nitrile seals.
-
Installation & Customization: Flanges, shafts and ports comply with major European, German and American standards; bearing supports are available upon request; a wide range of rear covers with built-in valves can be customized.
