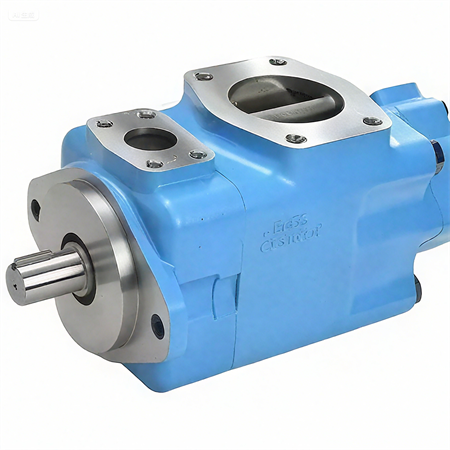

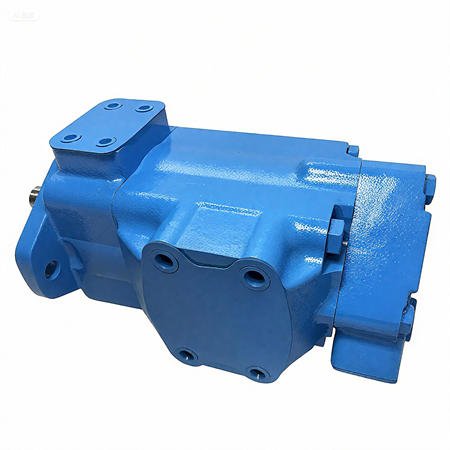

2520V series Vickers Double Vane pump
Vickers Single pump：V10、V20、20V(Q)、25V、35V、45V; VICKERS Double vane pump:2520V、3520V、3525V、4520V、4525V、4535V。For more detailed model parameters or application recommendations, please refer to Wiggs’ official technical documentation
Vickers 2520V Series Double Vane Pump Specifications
|
Parameter Category
|
Specifications
|
|
Displacement
|
1.2 – 8.0 cm³/rev (0.073 – 0.488 in³/rev), optional according to model
|
|
Rated Pressure
|
14 MPa (2031 psi); Equivalent to 140 bar, suitable for low pressure hydraulic systems
|
|
Maximum Pressure
|
Up to 20 MPa (2901 psi); Equivalent to 200 bar for short-term peak pressure tolerance
|
|
Rated Speed
|
1800 rpm; Maximum speed: 1800 rpm, minimum speed: 400 rpm
|
|
Structure Type
|
Double vane fixed displacement structure, concentric rotor and stator design; Built-in triangular groove to prevent oil trapping phenomenon; Micro-compact and lightweight integral casting housing for ultra-limited installation space
|
|
Volumetric Efficiency
|
≥ 92% (at rated speed and pressure), ensuring high energy conversion efficiency and low energy loss
|
|
Operating Viscosity Range
|
5 – 250 mm²/s (5 cst to 250 cst), adapting to micro hydraulic system requirements and different hydraulic oil types
|
|
Operating Temperature Range
|
-20 °C to 90 °C (-4 °F to 194 °F), compatible with micro-sized precision equipment working environments
|
|
Working Medium
|
Anti-wear hydraulic oil (ISO VG 32); Compatible with common hydraulic media, effectively reducing component wear and extending service life
|
|
Connection Mode
|
Threaded connection as standard; Flange connection optional; SAE or BSPP interface available, consistent with international connection standards and easy to assemble in limited space
|
|
Reliability
|
99.7% reliability; Double vane structure reduces blade wear, long service life (≥7,000 hours); Built-in overload protection to avoid system damage
|
|
Certifications
|
CE, ISO 9001; API certification optional for special application scenarios
|
Key Features
-
Double vane structure advantage: Adopts mature double vane design to reduce the force of vanes pressing against the stator inner surface, reduce wear, and improve the pump’s service life and stability under low pressure working conditions.
-
Micro-compact and efficient: Smaller volume than the 3520V series, specially designed for equipment with ultra-limited installation space; Volumetric efficiency up to 92% or more, effectively converting mechanical energy into hydraulic energy and reducing energy loss for micro hydraulic systems.
-
Stable and low-noise operation: Concentric rotor and stator design, built-in oil trapping prevention structure, ensuring smooth operation, low noise and low vibration; Wide operating temperature and viscosity range, strong adaptability to micro-sized hydraulic system working conditions and precision equipment requirements.
VICKERS The common specifications and models of vane pumps mainly include single pump and double pump series, as follows：
V10、V20、20V(Q)、25V、35V、45V
2520V、3520V、3525V、4520V、4525V、4535V
VMQ125(T)、VMQ135(T)、VMQ145(T)
VMQ2 2525, VMQ2 3525, VMQ2 4525, VMQ2 4535
VMQ3 352525, VMQ3 453525
20VQ、25VQ(T)、35VQ(T)、45VQ(T)
2520VQ, 3520VQ, 3525VQ, 4520VQ, 4525VQ, 4535VQ
2520VQSV10, 3520VQSV10, 3525VQSV10, 4520VQSV10, 4525VQSV10, 4535VQSV10
25VQH、35VQH、45VQH
2520VQH、3525VQH、4525VQH、3520VQH、4520VQH、4535VQH
V2010、V2020
VVS0, VVS1, VVS2, VVS3, VVP1, VVP2, VVP3.
Process steps：
Customer inquiry: Customers will make inquiries before placing an order to understand product details and communication needs.
Quotation: According to customer needs, provide a formal quotation, including the name, model, quantity, delivery time, payment method, etc. of the goods.
Order confirmation: After the customer confirms the quotation, a formal purchase order will be placed.
Confirm the delivery time: communicate the delivery time with the production department, inform the factory of the order details, and arrange the production plan.
Sign an export contract: After the two parties confirm that it is correct, sign an export contract to establish a trade relationship.
Implement the letter of credit (if applicable): If the payment method of the letter of credit is used, the customer needs to be urged to issue the certificate and review the contents of the letter of credit.
Export stocking: According to the requirements of the contract and the letter of credit, arrange production, purchase raw materials and packaging, and prepare the goods.
Chartering and booking: Contact the freight forwarder to make a booking and arrange the transportation of goods.
Export inspection: Apply to the quality inspection department for export commodity inspection and provide relevant documents.
Apply for a write-off slip: apply for a write-off slip from the foreign exchange management department for subsequent foreign exchange write-off.
Export declaration: Declare exports to the customs and provide documents such as power of attorney for customs declaration, customs declaration form for export goods, commercial invoice, packing list, etc.
