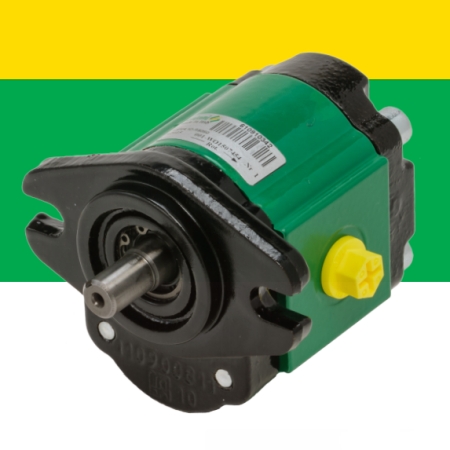

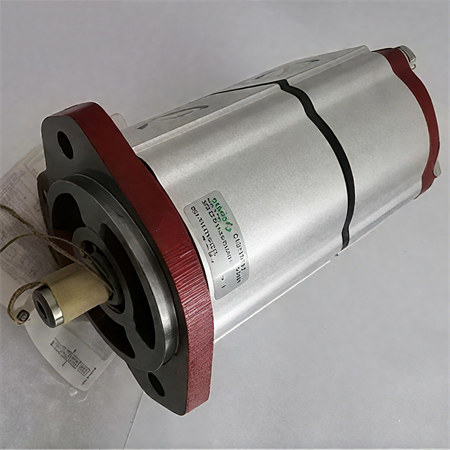

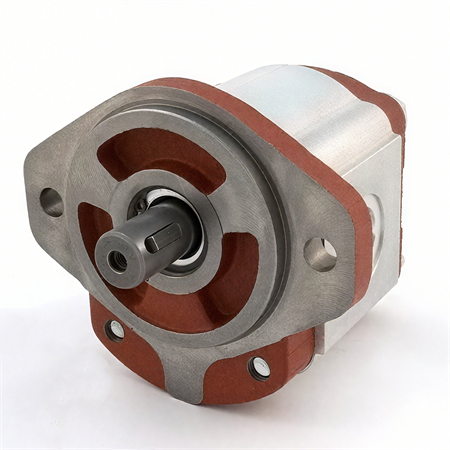

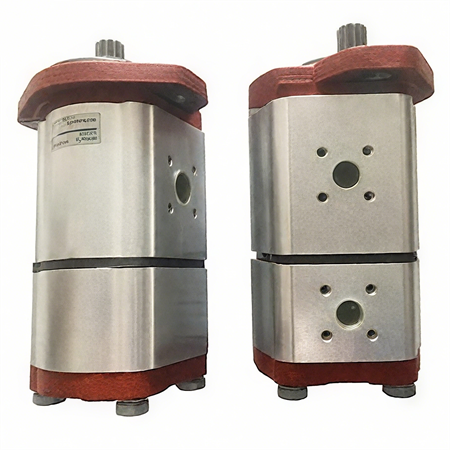

2ME gear motors
Specification: 2ME-4.5 /2ME-6.5 /2ME-8.3 /2ME-10.5* /2ME-11.3 /2ME-12.5* /2ME-13.8 /2ME-16 /2ME-19 /2ME-22.5 /2ME-26
Specifications of SALAMI Gear Motor 2ME Series
Basic Information
-
Brand: SALAMI
-
Series: 2ME
-
Product Type: Aluminum Alloy Gear Motor (compact type)
-
Application: Light load working conditions such as small conveyors, automatic equipment, precision instruments and small agricultural machinery
-
Certification: CE Certified (in line with European safety and reliability standards)
Motor Parameters
-
Rated Power: 0.12-1.1 kW (reference range, subject to specific model)
-
Rated Voltage: 220V/380V (AC), customizable according to requirements
-
Rated Current: 1.2-4.5 A (varies with rated power)
-
Rated Speed: 1420-1460 rpm (no-load speed, reference value)
-
Efficiency: ≥58% (ensures energy-saving operation in light load scenarios)
-
Polarity: 4-pole (standard configuration, optional 2-pole for high-speed models)
Gearbox Parameters
-
Gear Type: External Gear (integral gear with 10 teeth, compact structure)
-
Reduction Ratio: 3:1 – 80:1 (multiple options available for light load working conditions)
-
Rated Torque: 10-90 N·m (varies with reduction ratio and rated power, calculated based on the relationship between motor power, speed and torque)
-
Backlash: ≤4 arcmin (high precision transmission for small equipment)
-
Transmission Efficiency: ≥88% (reduces energy loss, consistent with the efficiency level of small external gearboxes)
Structural & Material Specifications
-
Housing Material: Lightweight Aluminum Alloy (integrated casting, lightweight and corrosion-resistant) + Cast Iron Flange (enhanced stability)
-
Gear Material: 20CrMnTi Alloy Steel (carburizing and quenching treatment, tooth surface hardness HRC56-60, wear-resistant and durable)
-
Seal Type: Double Shaft Seal, FKM (Fluororubber) Seal (high temperature and corrosion resistance, suitable for long-term operation)
-
Bearing: Anti-friction Material Bearing (improves volumetric efficiency and reduces operation noise)
-
Mounting Type: Foot Mounting / Flange Mounting (compact design, compatible with small equipment installation)
Environmental & Protection Specifications
-
Protection Class: IP54 (dust-proof and water-proof, adaptable to general industrial and agricultural environments)
-
Working Temperature Range: -15℃ to +90℃ (with FPM seal)
-
Storage Temperature Range: -40℃ to +120℃
-
Noise Level: ≤68 dB(A) (no-load, due to optimized gear profile design and compact structure)
-
Viscosity Requirement: 15-460 cSt (40℃, compatible with ISO VG46 anti-wear hydraulic oil)
Note
1.5ME、2ME、3ME series Aluminium gear motors:
| 1.5ME series | 1.5ME-2.8 | 1.5ME-3.5 | 1.5ME-4.1 | 1.5ME-5.2 | 1.5ME-6.2 | 1.5ME-7.6 | 1.5ME-9.3 | 1.5ME-11 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2ME series | 2ME-4.5 | 2ME-6.5 | 2ME-8.3 | 2ME-10.5* | 2ME-11.3 | 2ME-12.5* | 2ME-13.8 | 2ME-16 | 2ME-19 | 2ME-22.5 | 2ME-26 |
| 3ME series | 3ME-27 | 3ME-33 | 3ME-38 | 3ME-46 | 3ME-55 | 3ME-65 | 3ME-75 |
