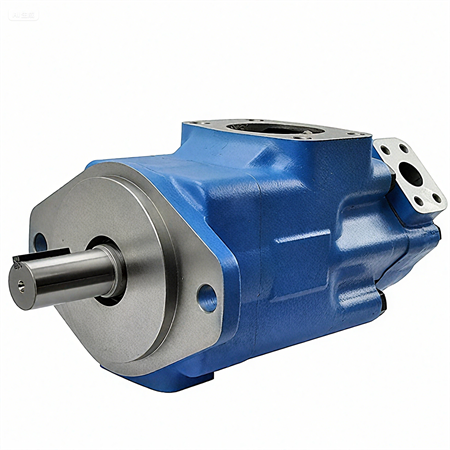

3525V series Double Vane pump
Vickers Single pump：V10、V20、20V(Q)、25V、35V、45V; VICKERS Double vane pump:2520V、3520V、3525V、4520V、4525V、4535V。For more detailed model parameters or application recommendations, please refer to Wiggs’ official technical documentation
Vickers 3525V Series Double Vane Pump Specifications
|
Parameter Category
|
Specifications
|
|
Displacement
|
3.2 – 15.6 cm³/rev (0.195 – 0.952 in³/rev), optional according to model
|
|
Rated Pressure
|
18 MPa (2611 psi); Equivalent to 180 bar, suitable for medium pressure hydraulic systems
|
|
Maximum Pressure
|
Up to 25 MPa (3626 psi); Equivalent to 250 bar for short-term peak pressure tolerance
|
|
Rated Speed
|
1800 rpm; Maximum speed: 2200 rpm, minimum speed: 500 rpm
|
|
Structure Type
|
Double vane fixed displacement structure, concentric rotor and stator design; Built-in triangular groove to prevent oil trapping phenomenon; Compact integral casting housing for small installation space
|
|
Volumetric Efficiency
|
≥ 94% (at rated speed and pressure), ensuring high energy conversion efficiency and low energy loss
|
|
Operating Viscosity Range
|
8 – 350 mm²/s (8 cst to 350 cst), adapting to different working condition requirements and hydraulic oil types
|
|
Operating Temperature Range
|
-20 °C to 95 °C (-4 °F to 203 °F), compatible with most industrial working environments
|
|
Working Medium
|
Anti-wear hydraulic oil (ISO VG 32/46/68); Compatible with common hydraulic media, effectively reducing component wear
|
|
Connection Mode
|
Flange or threaded connection; SAE or BSPP interface optional, consistent with international connection standards and easy to assemble
|
|
Reliability
|
99.7% reliability; Double vane structure reduces blade wear, long service life (≥10,000 hours); Built-in overload protection to avoid system damage
|
|
Certifications
|
CE, ISO 9001; API certification optional for petrochemical application scenarios
|
Key Features
-
Double vane structure advantage: Adopts mature double vane design to reduce the force of vanes pressing against the stator inner surface, reduce wear, and improve the pump’s service life and stability under medium pressure working conditions.
-
Compact and efficient: Small volume, suitable for equipment with limited installation space; Volumetric efficiency up to 94% or more, effectively converting mechanical energy into hydraulic energy and reducing energy loss.
-
Stable and low-noise operation: Concentric rotor and stator design, built-in oil trapping prevention structure, ensuring smooth operation and low noise; Wide operating temperature and viscosity range, strong adaptability to medium and small-sized hydraulic system working conditions.
VICKERS The common specifications and models of vane pumps mainly include single pump and double pump series, as follows：
V10、V20、20V(Q)、25V、35V、45V
2520V、3520V、3525V、4520V、4525V、4535V
VMQ125(T)、VMQ135(T)、VMQ145(T)
VMQ2 2525, VMQ2 3525, VMQ2 4525, VMQ2 4535
VMQ3 352525, VMQ3 453525
20VQ、25VQ(T)、35VQ(T)、45VQ(T)
2520VQ, 3520VQ, 3525VQ, 4520VQ, 4525VQ, 4535VQ
2520VQSV10, 3520VQSV10, 3525VQSV10, 4520VQSV10, 4525VQSV10, 4535VQSV10
25VQH、35VQH、45VQH
2520VQH、3525VQH、4525VQH、3520VQH、4520VQH、4535VQH
V2010、V2020
VVS0, VVS1, VVS2, VVS3, VVP1, VVP2, VVP3.
