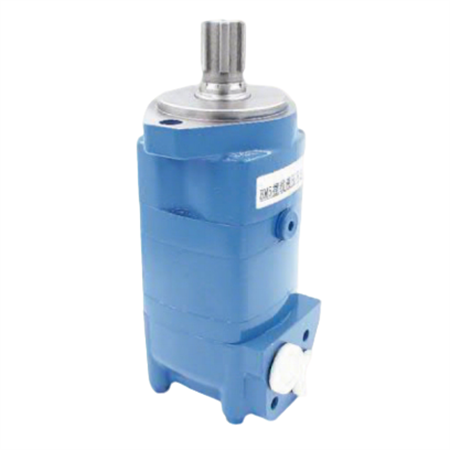

BM5 series Hydraulic motor
Whats app: +86 13728707767
E-mail: hyd-sales2009@outlook.com
We are a professional manufacturer of hydraulic pumps, offering a complete range of products. Inquiries are welcome! (#^.^#)
Description
BM5 Series Hydraulic Motor
The BM5 series hydraulic motor is a high-torque orbital geroler hydraulic motor with end face distribution, specially designed for low-speed and heavy-duty continuous operation. It integrates stable performance, high load-bearing capacity and strong adaptability, widely applied in mining, construction, marine, agricultural and industrial heavy-duty scenarios. Below is the complete technical specification, including model parameters, core features, performance data and application scenarios, helping you quickly select the suitable product.
BM5 Series Hydraulic Motor Core Specifications (Model List)
|
Model
|
Displacement (cm³/rev)
|
Max Continuous Pressure (MPa)
|
Max Intermittent Pressure (MPa)
|
Max Continuous Torque (N·m)
|
Speed Range (rpm)
|
Max Output Power (kW)
|
|
BM5 80
|
80.0
|
17.0
|
20.0
|
194
|
10 – 805
|
16
|
|
BM5 160
|
160.5
|
17.0
|
20.0
|
388
|
10 – 520
|
18
|
|
BM5 315
|
315.2
|
16.0
|
19.5
|
756
|
10 – 320
|
19
|
|
BM5 400
|
400.8
|
16.0
|
19.5
|
962
|
10 – 250
|
20
|
|
BM5 500
|
500.6
|
15.0
|
19.0
|
1178
|
10 – 200
|
20
|
|
BM5 630
|
630.4
|
14.5
|
18.5
|
1486
|
10 – 160
|
19
|
|
BM5 800
|
800.7
|
14.0
|
18.0
|
1924
|
10 – 130
|
18
|
|
BM5 985
|
985.3
|
13.5
|
17.5
|
2365
|
10 – 110
|
17
|
|
BM5 1250
|
1250.0
|
12.5
|
17.0
|
2650
|
10 – 120
|
25
|
Key Features of BM5 Series Hydraulic Motors
-
Advanced end face distribution design, which ensures smooth operation at low speed and has automatic wear compensation function, effectively reducing internal hydraulic loss and improving operation stability.
-
Double-row tapered roller bearings on the output shaft, which can bear large static and dynamic radial loads, significantly enhancing the load-bearing capacity and service life of the motor.
-
Optimized shaft seal structure with strong sealing performance, capable of withstanding high back pressure, and suitable for harsh working environments such as dust, humidity and heavy load.
-
Excellent low-pressure start performance and large starting torque, which can realize stable start and continuous operation under low oil pressure conditions, adapting to the needs of heavy-duty start scenarios.
-
Flexible structural design, supporting various mounting flanges, output shafts and oil port types, which can be flexibly matched with different working mechanisms and installation requirements.
-
High torque density, reliable performance and strong environmental adaptability, interchangeable with mainstream heavy-duty hydraulic motor models, widely used in low-speed and heavy-duty working scenarios.
Performance Characteristics
The BM5 series hydraulic motors belong to end face distribution orbital geroler hydraulic motors, which are dedicated to low-speed and heavy-duty continuous operation with stable and reliable performance. The displacement ranges from 80.0 cm³/rev to 1250.0 cm³/rev, covering a wide range of torque (194-2650 N·m) and speed requirements, and the maximum intermittent pressure can reach 20.0 MPa, providing strong power support for various heavy-duty equipment. The motor has the advantages of smooth operation, low noise, long service life and high efficiency, and is an ideal choice for heavy-duty industrial, agricultural and marine applications.
Application Areas
BM5 series hydraulic motors are widely used in various heavy-duty industries due to their excellent high-torque and low-speed performance, including:
-
Agricultural machinery: Large combine harvesters, heavy-duty rotary tillers, feed mixers and large-scale agricultural irrigation equipment.
-
Construction machinery: Hydraulic excavator travel and slewing drives, large rollers, cement mixers and heavy lifting machinery.
-
Industrial equipment: Large conveyors, winding machines, injection molding machine preplasticizing screw drives and vulcanizing machines.
-
Mining machinery: Coal shearers, roadheaders and mine hoists, adapting to harsh mining working environments.
-
Marine equipment: Ship anchor winches, fishing boat net hauling equipment and ship steering systems.
Model Coding Explanation
The model coding of BM5 series hydraulic motors is composed of 7 parts, which clearly indicates the motor type, displacement, output shaft type, flange type and oil port type. For example, “BM5 500 H4 A Y5” means:
-
Type: BM5 (end face distribution orbital geroler hydraulic motor)
-
Displacement: 500 (corresponding to 500.6 cm³/rev)
-
Output shaft type: H4 (40mm rectangular spline, 8-40×35×7)
-
Flange type: A (large flange with 4×18mm mounting holes, φ160mm spigot)
-
Oil port type: Y5 (inlet and outlet M18×1.5, drain port M14×1.5)
