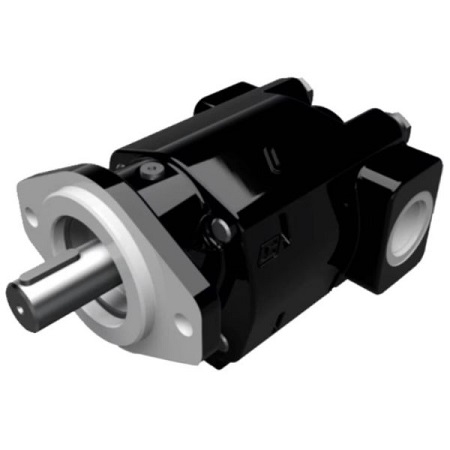

Parker PGP315 Series gear pump
Wechat: +86 13728707767
Whats app: +86 13728707767
E-mail: hyd-sales2009@outlook.com
Parker PGP315 Series Gear Pump Specifications
1. Product Overview
2. Core Technical Specifications
|
Parameter Item
|
Details/Specifications
|
|---|---|
|
Pump Type
|
Fixed Displacement External Gear Pump
|
|
Rated Operating Pressure
|
241 bar (3,500 psi) continuous
|
|
Peak Pressure
|
275 bar (4,000 psi) intermittent
|
|
Displacement Range
|
7.6 – 40.6 cm³/r (0.46 – 2.48 cu.in/rev); maximum up to 41 cm³/r (2.5 cu.in/rev)
|
|
Maximum Speed
|
3,000 rpm
|
|
Volumetric Efficiency
|
≥ 94% at rated pressure; up to 98% under optimal conditions
|
|
Operating Temperature Range
|
-20°C to 100°C (-4°F to 212°F); some configurations up to 80°C (176°F)
|
|
Fluid Compatibility
|
Mineral oil, synthetic oil, biodegradable oil, phosphate-ester, water-glycol
|
|
Viscosity Range
|
50 – 7,500 SUS
|
|
Maximum Flow Rate
|
Up to 32 gpm (121 lpm) per section; up to 119 litres/minute
|
|
Body Material
|
Ductile cast iron (three-piece construction)
|
|
Gear Configuration
|
12-tooth precision steel gears
|
|
Maximum Weight
|
10 kg (22 lbs)
|
3. Structural & Installation Specifications
|
Item
|
Specifications
|
|---|---|
|
Mounting Flange
|
SAE A 2-bolt, SAE B 2-bolt; ISO/DIN options available
|
|
Shaft Type
|
SAE A 5/8″ 9T spline; SAE B 7/8″ 13T spline; SAE B 7/8″ parallel keyed; SAE/ISO/DIN industry-specific shafts optional
|
|
Port Connections
|
SAE, ISO, NPT, BSPP, ODT; flange and straight threaded types
|
|
Port Location
|
Side ports, rear ports
|
|
Key Structural Features
|
Large-area low-friction bushings; bronze pressure-balanced wear plate; internal lubrication channels; extended stud mounting support
|
4. Configuration Options
-
Pump Configurations: Single pump, tandem pump, triplex pump, piggyback configuration
-
Rotation Direction: Clockwise (CW), counterclockwise (CCW), bi-rotational
-
Control Methods: Relief valve, load sense flow control, priority flow control, solenoid unloaded relief valve
-
Add-ons: Integrated valves (check valve with restrictor, accumulator charge valve), 415 upgrade (4,500 psi), large pad bearing carrier (1 ½” code 61)
5. Application Fields
PGP gear pump parameter
