Parker Pump 3349111734 PGP511A0080CA1H2NL1L1B1B1

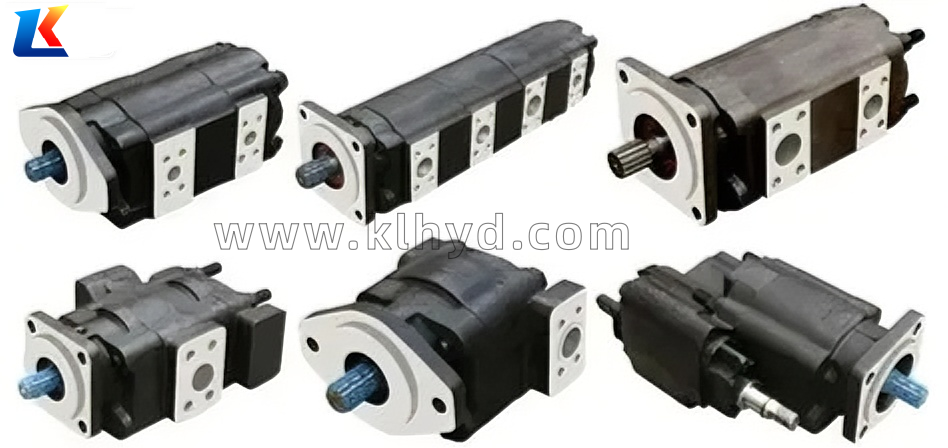

PGP series gear pump：PGP315,PGP330,PGP350,PGP365,PGP502,PGP505,PGP511
PGP517,PGP610,PGP620,PGP640
| Contact us |
| Whats app: +86 13728707767 |
| E-mail: hyd-sales2009@outlook.com |
I. Basic Information
|
Parameter Item
|
Value / Description
|
|
Model
|
3349111734 (Full Model: PGP511A0080CA1H2NL1L1B1B1)
|
|
Series
|
PGP511 (Aluminum Alloy Housing Fixed Displacement Gear Pump)
|
|
Type
|
Fixed displacement, external gear pump
|
|
Manufacturer
|
Parker Hannifin
|
|
Application Fields
|
Power steering pumps, brake pumps, hydraulic power units, aerial work platforms, transfer pumps, lubrication pumps, etc.
|
II. Core Performance Parameters
|
Parameter Item
|
Value
|
Remarks
|
|
Displacement
|
8.0 cm³/rev (0.488 in³/rev)
|
“0080” in the model represents displacement
|
|
Continuous Working Pressure
|
250 bar (3,625 psi)
|
Up to 275 bar under certain working conditions
|
|
Peak Pressure
|
300 bar (4,350 psi)
|
Short-term maximum pressure
|
|
Speed Range
|
500–3,500 rpm
|
Up to 4,000 rpm (requires special working conditions)
|
|
Minimum Speed
|
500 rpm
|
Minimum speed to ensure normal operation
|
|
Volumetric Efficiency
|
Up to 90% or more
|
Optimized gear design to reduce internal leakage
|
III. Structure and Installation Parameters
|
Parameter Item
|
Value / Description
|
|
|
Housing Material
|
Aluminum Alloy
|
Lightweight design to improve power density
|
|
Gear Type
|
Hardened Helical Gears
|
Constant mesh design for low-noise operation
|
|
Mounting Method
|
SAE A 2-Bolt Flange
|
Standard rectangular flange connection
|
|
Shaft Type
|
Splined Shaft / Flat Key Shaft (depending on configuration)
|
“C” in the model represents the shaft type
|
|
Rotation Direction
|
Clockwise (CW)
|
Standard configuration, counterclockwise available on request
|
|
Port Position
|
Side Ports
|
Adjustable according to requirements
|
|
Port Specification
|
SAE Standard Interface
|
Inlet #12 SAE, Outlet #10 SAE (common configuration)
|
|
Weight
|
Approx. 4.5 kg (9.9 lbs)
|
Lightweight design with aluminum alloy housing
|
IV. Design Features
-
Pressure-Balanced Thrust Plate: Optimizes efficiency, reduces friction and leakage
-
Helical Gear Design: Reduces flow pulsation and ensures quiet operation
-
Modular Structure: Can integrate various control valves and support multi-pump configuration
-
International Standard Interface: SAE standard mounting and connection dimensions for strong versatility
-
Internal Lubrication System: Ensures long-term reliable operation of bearings and gears
V. Operating Conditions
|
Condition Item
|
Value Range
|
|
|
Operating Temperature
|
-20°C to +100°C
|
Oil temperature is recommended to be controlled below 100°C
|
|
Medium Type
|
Hydraulic oil (anti-wear hydraulic oil is recommended)
|
|
|
Inlet Pressure
|
0.8–2 bar (absolute pressure), minimum 0.5 bar
|
|
|
Mounting Coaxiality
|
≤0.05 mm
|
Ensure coaxiality between pump shaft and motor shaft to reduce vibration and noise
|
| PGP315A0400CA1H1ND3D2B1B1 PGP502A0008AV1P1NB1B1E1B1 PGP502A0008CP2D1NE3E2B1B1 PGP502A0008CV2P3XE2E2B1B1 PGP502A0012AH1D1VE3E2B1B1 PGP502A0012AV1P1NB1B1E1B1 PGP502A0012CH1H1NE3E2B1B1 PGP502A0012CH1H1NE3E2B1B1 PGP502A0012CP2D1NE2E2B1B1 PGP502A0012CP2D1NE3E2B1B1 PGP502A0012CP2D1NE3E2B1B1 PGP502A0012CV2P3XD3D3B1B1 PGP502A0012CV2P3XE2E2B1B1 PGP502A0012CV2P3XE3E2B1B1 PGP502A0012CV2P3XJ4J3B1B1 PGP502A0012CV2P4NE2E2B1B1 PGP502A0016AV1P1NB1B1E1B1 PGP502A0016CP2D1NE3E2B1B1 PGP502A0021AV1P1NB1B1E1B1 PGP502A0021CP2D1NE2E2B1B1 PGP502A0021CP2D1NE3E2B1B1 PGP502A0021CV1D1NE2E2B1B1 PGP502A0021CV2P3XE2E2B1B1 PGP502A0033CP2D1NE3E2B1B1 PGP502A0043CV2P3XE3E2B1B1 |
PGP502A0058CH1H1NE2E2B1B1 PGP502A0058CH1H1NE3E2B1B1 PGP502A0079CP2D1NJ4J3B1B1 PGP503A0021CP2D1NJ2J1 PGP505A0030CJ1H1NE5E3B1B1 PGP505A0040CQ2D2NE5E3B1B1 PGP505A0060AS1D1NJ3J2B1B1 PGP505A0060CA1H2NE5E3B1B1 PGP505A0060CK1H2NE5E3B1B1 PGP505A0080CK1H2NE5E3B1B1 PGP505A0080CP2D1NJ4J3B1B1 PGP505A0100CS2D2VE4E3B1B1 PGP505A0120CK1H1ND5D4B1B1 PGP505A0120CK1H2ND5D4B1B1 PGP505A0120CK1H2NE5E3B1B1 PGP505A0120CK1H2NE5E3B1B1 PGP505A0120CK7D2NE5E3RJAT PGP511A0040CK1H2NC7C7B1B1 PGP511A0040CS2D3NL1L1B1B1 PGP511A0060CL6H2NJ7J5B1B1 PGP511A0060CS1D4NE5E3B1B1 PGP511A0060CS1D4NJ7J5B1B1 PGP511A0070CA1H2NL1L1B1B1 PGP511A0080CA1H2NL1L1B1B1 PGP511A0080CS1D4NJ7J5B1B1 |
PGP511A0080CS4D3NJ7J5B1B1 PGP511A0100AS2D3NE5E3B1B1 PGP511A0100AS2D3NL2L1B1B1 PGP511A0100AS2D9NL2L1B1B1 PGP511A0100AS2J6MD5B1B1D3 PGP511A0110CA1H2NE5E3B1B1 PGP511A0110CS1D4NJ7J5B1B1 PGP511A0140CA1H2NE5E3B1B1 PGP511A0140CK1H2NE5E3B1B1 PGP511A0140CL6H2NE6E5B1B1 PGP511A0140CS4D3NE5E3B1B1 PGP511A0140CS4D3VL2L2B1B1 PGP511A0160AS1Q4NJ7J5B1B1 PGP511A0160CK1H2NE6E5B1B1 PGP511A0170AJ5D3NE5E3B1B1 PGP511A0190CK1H2NE5E3B1B1 PGP511A0190CL6H2ND5D4B1B1 PGP511A0230AA1H2NJ9J8B1B1 PGP511A0230CA1H2NB1B1D5D4 PGP511A0230CA1H2ND5D4B1B1 PGP511A0230CC1H2NE6E5B1B1 PGP511A0230CL6H2NE6E5B1B1 PGP511A0250CS2D3VE5E3B1B1 PGP511A0270AA1H2ME7E5B1B1 PGP511A0270CL6H2NE5E3B1B1 |
PGP511A0270CS2D3NE6E5B1B1 PGP511M0040CL6H2ND4D3B1B1 PGP511M0110CS2D3NL2L1B1B1 PGP511M0110CS2D3NL2L1B1B1 PGP517A0230CD1H3NP4P3B1B PGP517A0380CT1D7NE7E6B1B1 PGP517A0420CS1H2NE5E3B1B1 PGP517A0440CM2H3NE7E5B1B1 PGP517A0500AC2H2VF6F5B1B1 PGP517A0520CD1H3NL3L2B1B1 PGP517A0520CT1D7NL3L2B1B1 PGP517A0700CS2D3VE5E3B1B1 PGP517B0330AD1H3NP4E5S PGP517B0330AD1H3NP4E5S PGP517B0330AD1H3NP4P2S517A PGP517B0330CD1H3NL3L2S PGP517B0330CD1H3NP4P2C PGP610A0500CS1H2NE5E3B1B1 PGP620A0410BM3A4VE7E7B1B1G4 PGP620A0410BM3A4VE7E7B1B1G4 PGP620A1000AC2H2VF6F5B1B1 PGP620B0410CE1H3MS6D5C PGP640A0600CD1H3NT5E6B1B1 PGP640A0600CD1H3NT5E6B1B1 PGP640A1500CS2D3VE5E3B1B1 |
