Tokimec SQP Series Vane Pump Installation Dimensions

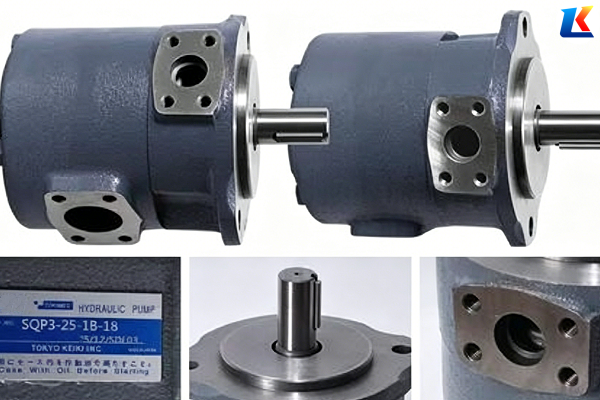

Tokimec SQP Series Vane Pump Installation Dimensions (Official Standard)
1. General Specifications
-
All dimensions are sourced from official Tokimec technical datasheets. Unit: mm / inch (where marked)
-
Two mounting types: Flange Mounting (no code) and Foot Mounting (code 2*)
-
Shaft types: Standard Type (1) and Reinforced Parallel Key Type (86)
-
Port specifications comply with SAE J518c standard pressure flange
2. Single Vane Pump (SQP1/SQP2/SQP3/SQP4) Installation Dimensions
2.1 Flange Mounting Dimensions
|
Model
|
Flange Bolt Holes
|
Flange Diameter
|
Shaft Diameter
|
Keyway Size
|
Overall Length
|
Weight (kg)
|
|
SQP1
|
4-φ11.1 holes φ21.5 counterbore ×0.5 depth
|
φ178
|
φ22.225
|
□4.775
|
244.65
|
16.0
|
|
SQP2
|
4-φ14 holes φ25 counterbore ×0.5 depth
|
φ213
|
φ27
|
□7.95
|
304.5
|
25.0
|
|
SQP3
|
4-3/8-16UNC 19.1 depth
|
φ213/φ183
|
φ34.9
|
□7.95
|
385.6
|
35.0
|
|
SQP4
|
4-3/8-16UNC 19.1 depth
|
φ280/φ228.6
|
φ44.5
|
□9.54
|
508
|
59.5
|
2.2 Foot Mounting Dimensions
|
Model
|
Mounting Holes
|
Mounting Surface Size
|
Base Height
|
Weight (kg)
|
|
SQP1
|
4-φ11.1 holes
|
172×99
|
96
|
19.0
|
|
SQP2
|
4-φ17.5 holes
|
269×181
|
88
|
34.5
|
|
SQP3
|
4-φ20.6 holes φ38 counterbore ×1 depth
|
290×250
|
163
|
44.5
|
|
SQP4
|
4-φ20.6 holes φ38 counterbore ×1.5 depth
|
330×280
|
185
|
84.5
|
2.3 Port Specifications
|
Model
|
Inlet Port
|
Outlet Port
|
Recommended Flange Model
|
|
SQP1
|
1-1/4″
|
3/4″
|
FL1-10-10P/W, FL1-6-06P/W
|
|
SQP2
|
1-1/2″
|
1″
|
FL1-12-12P/W, FL1-8-08P/W
|
|
SQP3
|
2″
|
1-1/4″
|
FL1-16-16P/W, FL1-10-10P/W
|
|
SQP4
|
3″
|
1-1/2″
|
FL1-24-24P/W, FL1-12-12P/W
|
3. Double Vane Pump (SQP21/SQP31/SQP32/SQP41/SQP42/SQP43) Installation Dimensions
3.1 Flange Mounting Core Dimensions
|
Model
|
Flange Bolt Holes
|
Shaft Diameter
|
Keyway Size
|
Overall Length
|
Weight (kg)
|
|
4-3/8-16UNC 19.1 depth
|
φ27
|
□7.95
|
381×2
|
31.5
|
|
|
SQP31/SQP32
|
4-3/8-16UNC 19.1 depth
|
φ34.9
|
□7.95
|
385.6×2
|
46.0/48.0
|
|
SQP41/SQP42/SQP43
|
4-3/8-16UNC 19.1 depth
|
φ44.5
|
□9.54
|
508×2
|
74.0/80.0/88.5
|
3.2 Foot Mounting Dimensions (Universal for All Double Pump Models)
-
Mounting Holes: 4-φ20.6 holes, φ38 counterbore ×1 depth
-
Mounting Surface Size: 290×250 (SQP21/31/32), 330×280 (SQP41/42/43)
-
Base Height: 170 (SQP21/31/32), 185 (SQP41/42/43)
-
Weight: Approximately 10kg heavier than flange mounting type
3.3 Port Specifications (Double Outlet Ports)
|
Model
|
Inlet Port
|
Shaft-side Outlet
|
Cover-side Outlet
|
|
SQP21
|
2″
|
1″
|
3/4″
|
|
SQP31
|
3″
|
1-1/4″
|
3/4″
|
|
SQP32
|
3″
|
1-1/4″
|
1″
|
|
SQP41
|
3-1/2″
|
1-1/2″
|
3/4″
|
|
SQP42
|
3-1/2″
|
1-1/2″
|
1″
|
|
SQP43
|
4″
|
1-1/2″
|
1-1/4″
|
4. Triple Vane Pump (SQP211/SQP311/SQP321/SQP421/SQP431/SQP432) Installation Dimensions
4.1 Flange Mounting Core Dimensions
-
Flange bolt holes: Consistent with corresponding single pump models (SQP211=SQP2, SQP311/321=SQP3, SQP421/431/432=SQP4)
-
Shaft diameter / keyway: Consistent with corresponding single pump models
-
Overall length: Approximately 3 times the length of the corresponding single pump
-
Weight: 15-20kg heavier than corresponding double pump models
4.2 Foot Mounting Dimensions
-
Consistent with corresponding double pump models, base height increased by approximately 20mm
4.3 Port Specifications (Triple Outlet Ports)
|
Model
|
Inlet Port
|
Shaft-side Outlet
|
Middle Outlet
|
Cover-side Outlet
|
|
SQP211
|
2-1/2″
|
1″
|
3/4″
|
3/4″
|
|
SQP311
|
3″
|
1-1/4″
|
3/4″
|
3/4″
|
|
SQP321
|
3″
|
1-1/4″
|
1″
|
3/4″
|
|
SQP421
|
3-1/2″
|
1-1/2″
|
1″
|
3/4″
|
|
SQP431
|
4″
|
1-1/2″
|
1-1/4″
|
3/4″
|
|
SQP432
|
4″
|
1-1/2″
|
1-1/4″
|
1″
|
5. Key Supplementary Instructions
-
Rotation Direction: Standard clockwise (viewed from shaft end); LH stands for counterclockwise
-
Outlet Port Position (viewed from pump cover end):
-
A: Opposite to inlet port
-
B: 90° counterclockwise from inlet port
-
C: Collinear with inlet port
-
D: 90° clockwise from inlet port
-
-
SQPS Series: Shares identical installation dimensions with SQP series, only equipped with pulse attenuation structure for lower noise
-
Installation Recommendations:
-
Adopt specified SAE standard flanges and bolts for flange mounting
-
Ensure base flatness ≤ 0.1mm for foot mounting
-
Shaft fit tolerance is recommended as H7/k6.
-
